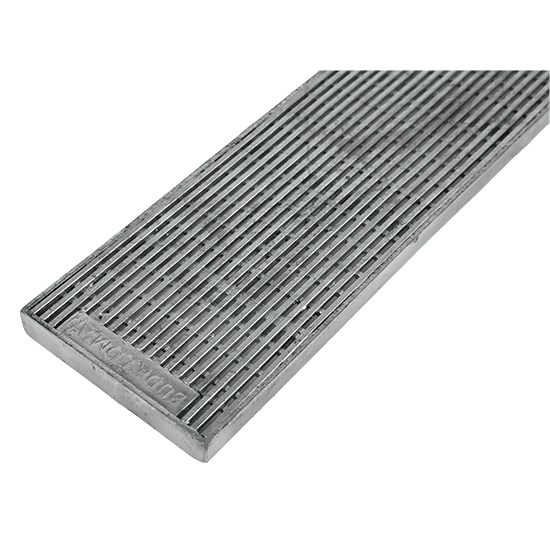

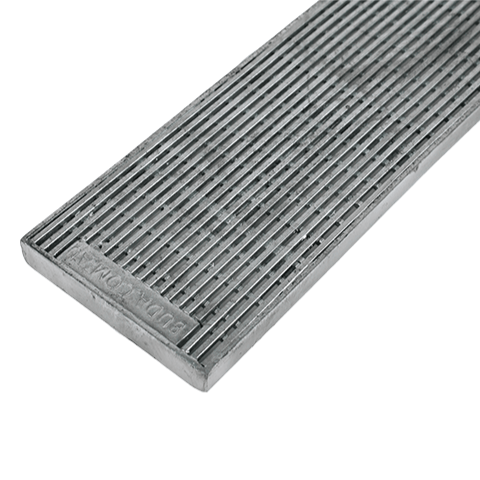

Budaguard™ - Heelguard Galvanised Steel Grate Only
Replace your driveway or walkway drainage with our high-strength Galvanised Heelguard Replacement Grates. Sold in standard 995mm lengths, these drop-in grates are the perfect solution for refreshing existing drainage channels. Engineered for durability, these grates provide a flush, professional finish that meets strict Australian safety and load requirements.
Each unit is Class B Load Rated, making them suitable for residential driveways and areas frequented by passenger vehicles. Additionally, they are fully compliant with the (P4) slip resistance requirements of AS 3996:2019, ensuring maximum safety for pedestrians in all weather conditions.
Precision Sizing for Every Channel
Our galvanised replacement grates are available in four distinct widths to fit a wide variety of standard civil and residential drainage channels:
| Width | Depth | Length | Load Class |
|---|---|---|---|
| 120mm | 16mm | 995mm | Class B |
| 150mm | 20mm | 995mm | Class B |
| 200mm | 25mm | 995mm | Class B |
| 230mm | 25mm | 995mm | Class B |
| 300mm | 25mm | 995mm | Class B |
Why Choose Our Galvanised Heelguard Grates?
- Heel-Safe & Slip-Resistant: The tight wedge-wire Heelguard pattern prevents stiletto heels from catching and complies with AS 3996:2019 slip resistance standards, making them an optimised solution for public walkways.
- Driveway Rated: Unlike standard plastic grates, these Class B units are designed to handle the weight of cars and light trucks without flexing or cracking.
- Hot-Dip Galvanised: Fully treated to resist rust and corrosion, providing a long-lasting, heavy-duty finish in even the most aggressive outdoor environments.
- Instant Installation: Simply measure your existing channel and drop the 1-metre section into place for an immediate safety and aesthetic upgrade.
Please check our Care Guide for Galvanised Products.
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
It prevents debris from getting stuck whilst still allowing water to drain. The Heelguard style of grating stops almost all debris, including rocks and plastic.
No, it is Hot-Dip Galvanised to R3 standards. This process creates a thick zinc barrier that chemically bonds to the steel, ensuring strong performance even in high-moisture drainage environments.
Yes, it is Class B rated. This is the Australian standard for residential driveways and areas where light commercial vehicles may occasionally travel.
Measure the width and the thickness of the grate. If the inside of your channel matches the correct width and depth, these will fit seamlessly into your existing channel. Available for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Yes. You can cut these down to size. We recommend spraying the exposed cut with a Cold Galvanising Spray to maintain protection on the exposed steel and help prevent corrosion over time. Please check our Care Guide for Galvanised Products.
Replace your driveway or walkway drainage with our high-strength Galvanised Heelguard Replacement Grates. Sold in standard 995mm lengths, these drop-in grates are the perfect solution for refreshing existing drainage channels. Engineered for durability, these grates provide a flush, professional finish that meets strict Australian safety and load requirements.
Each unit is Class B Load Rated, making them suitable for residential driveways and areas frequented by passenger vehicles. Additionally, they are fully compliant with the (P4) slip resistance requirements of AS 3996:2019, ensuring maximum safety for pedestrians in all weather conditions.
Precision Sizing for Every Channel
Our galvanised replacement grates are available in four distinct widths to fit a wide variety of standard civil and residential drainage channels:
| Width | Depth | Length | Load Class |
|---|---|---|---|
| 120mm | 16mm | 995mm | Class B |
| 150mm | 20mm | 995mm | Class B |
| 200mm | 25mm | 995mm | Class B |
| 230mm | 25mm | 995mm | Class B |
| 300mm | 25mm | 995mm | Class B |
Why Choose Our Galvanised Heelguard Grates?
- Heel-Safe & Slip-Resistant: The tight wedge-wire Heelguard pattern prevents stiletto heels from catching and complies with AS 3996:2019 slip resistance standards, making them an optimised solution for public walkways.
- Driveway Rated: Unlike standard plastic grates, these Class B units are designed to handle the weight of cars and light trucks without flexing or cracking.
- Hot-Dip Galvanised: Fully treated to resist rust and corrosion, providing a long-lasting, heavy-duty finish in even the most aggressive outdoor environments.
- Instant Installation: Simply measure your existing channel and drop the 1-metre section into place for an immediate safety and aesthetic upgrade.
Please check our Care Guide for Galvanised Products.
It prevents debris from getting stuck whilst still allowing water to drain. The Heelguard style of grating stops almost all debris, including rocks and plastic.
No, it is Hot-Dip Galvanised to R3 standards. This process creates a thick zinc barrier that chemically bonds to the steel, ensuring strong performance even in high-moisture drainage environments.
Yes, it is Class B rated. This is the Australian standard for residential driveways and areas where light commercial vehicles may occasionally travel.
Measure the width and the thickness of the grate. If the inside of your channel matches the correct width and depth, these will fit seamlessly into your existing channel. Available for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Yes. You can cut these down to size. We recommend spraying the exposed cut with a Cold Galvanising Spray to maintain protection on the exposed steel and help prevent corrosion over time. Please check our Care Guide for Galvanised Products.
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
