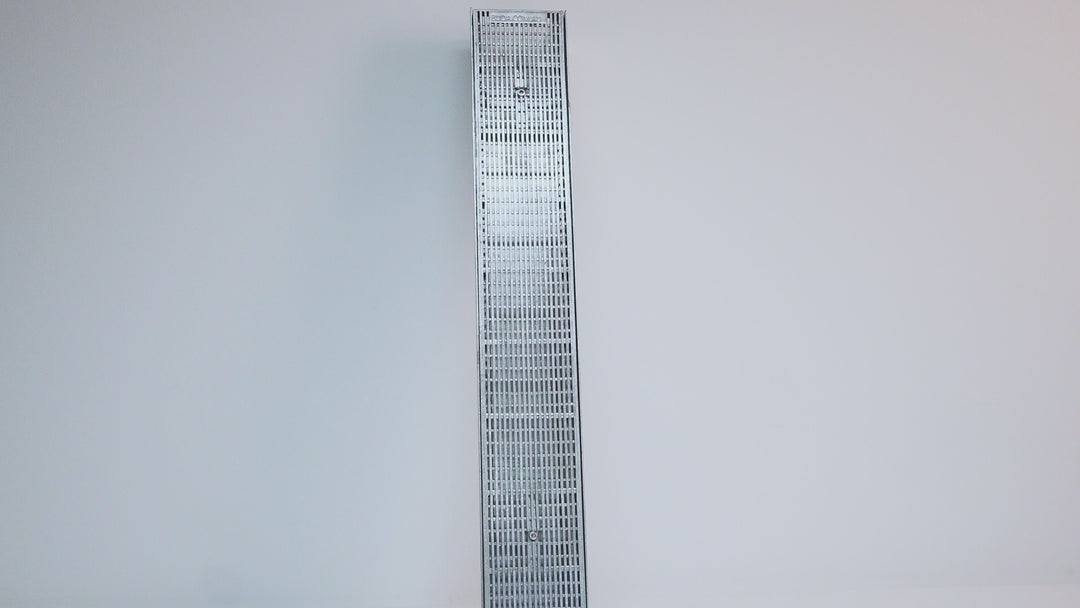

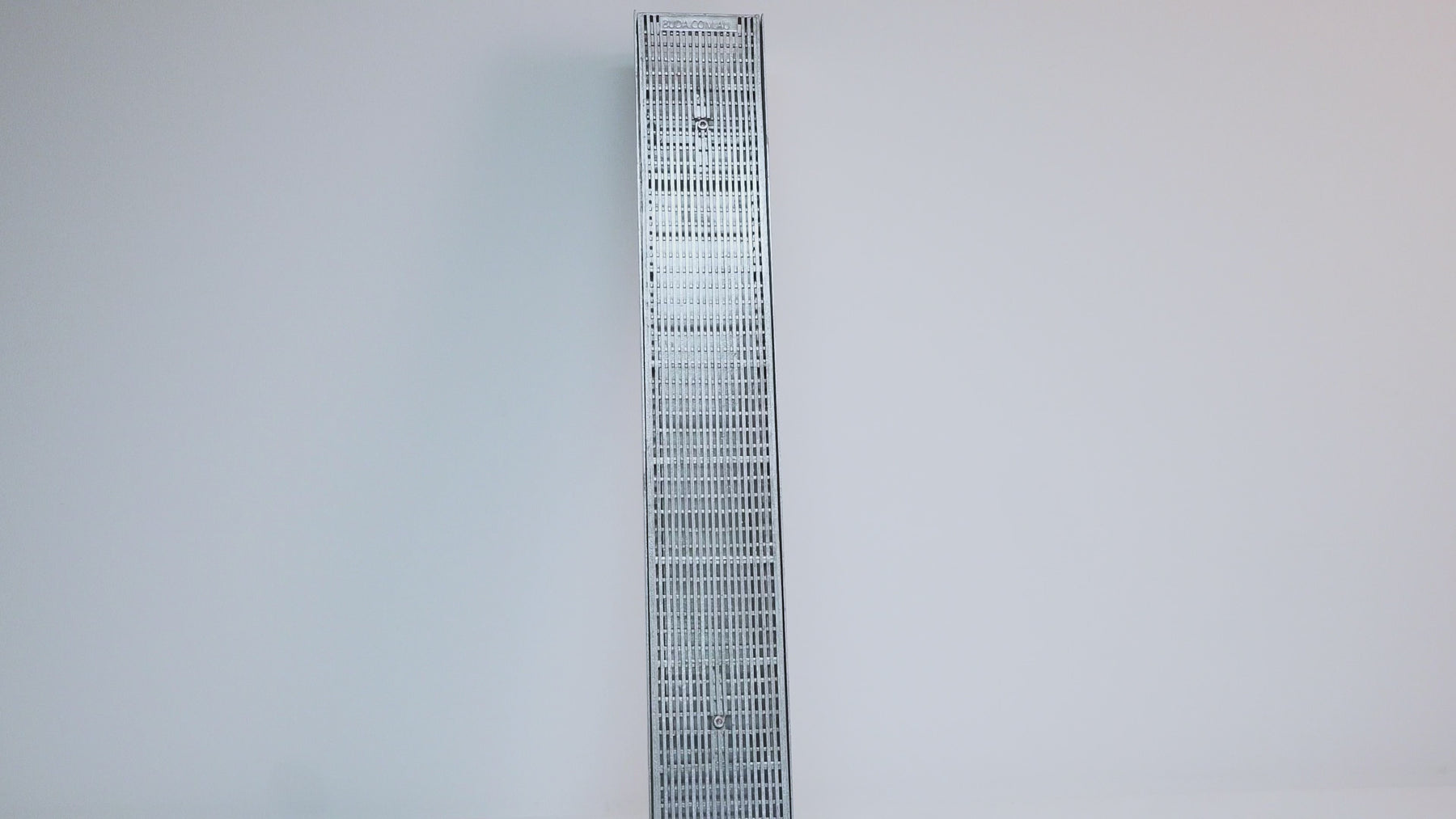

The Budaguard™ Heelguard Galvanised Trench Box Drains are a durable drop-in drainage solution built from hot-dip galvanised steel for long-term corrosion resistance in external applications.

Available in four section profiles — 125mm, 150mm, 200mm, and 300mm wide — these trench box drains come in standard lengths and can be easily cut and joined on site to suit your installation.

The grates bolt securely to the trench box to prevent movement under load and deter theft. They can also be removed using an allen key for cleaning and maintenance.

Class B Load Rated and compliant with AS 3996:2019, Budaguard™ Heelguard drains are suitable for pedestrian areas and residential driveways.

The wedge wire heelguard pattern features edge bars to eliminate sharp edges, tapered cross bars that reduce dirt build-up, and narrow openings to help prevent leaves and debris entering the drainage channel.

Product Specifications

• Material: Hot-dip galvanised steel
• Load Rating: Class B — suitable for cars and light trucks
• Standard: AS 3996:2019 (slip resistance compliant)
• 125mm Profile: 125mm wide × 80mm deep — 1m, 2m, and 3m lengths
• 150mm Profile: 150mm wide × 125mm deep — 1m, 2m, and 3m lengths
• 200mm Profile: 200mm wide × 170mm deep — 2m and 3m lengths
• 300mm Profile: 300mm wide × 170mm deep — 2m and 3m lengths
• Fixing: Bolt-down to trench box base, removable with allen key
• Outlet Position: No pre-cut outlet — cut on site to suit your layout
• Accessories: End caps, joiners, outlets, hex head screws, screw bits, and cold galvanising spray sold separately
• Supplied From: Lakemba, NSW

Key Features at a Glance

• Class B Rated: Suitable for residential vehicles, pedestrian traffic, and light-duty commercial applications.
• Bolt-Down Security: Grates lock securely to the trench box to reduce movement and deter theft.
• Heelguard Wedge Wire Pattern: Heel-safe and pet-friendly with tapered bars that resist dirt and debris build-up.
• Flexible Installation: Standard lengths can be cut and joined on site to suit almost any drainage run.

Primary Applications

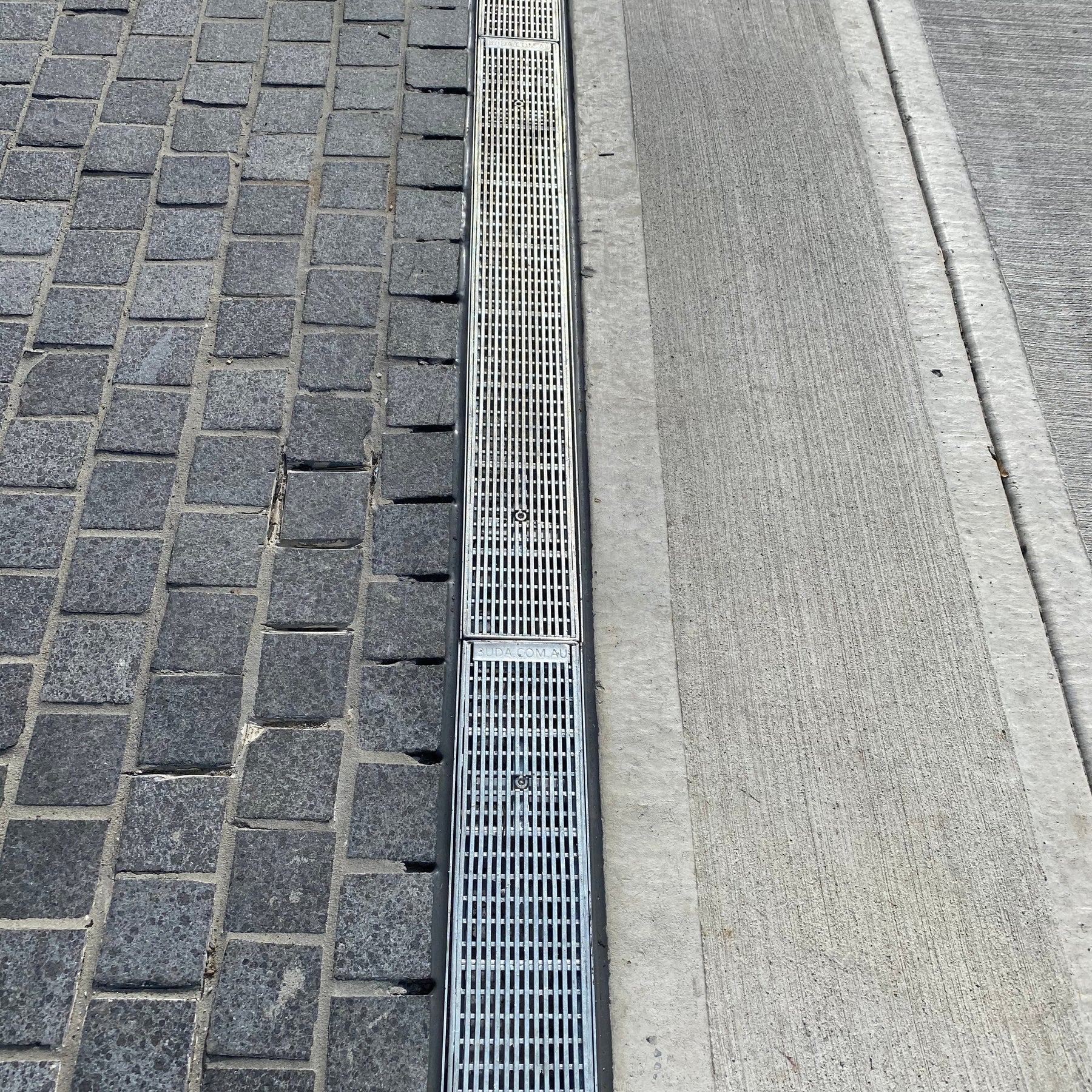

• Residential Driveways: Suitable for vehicle traffic including cars and light trucks.

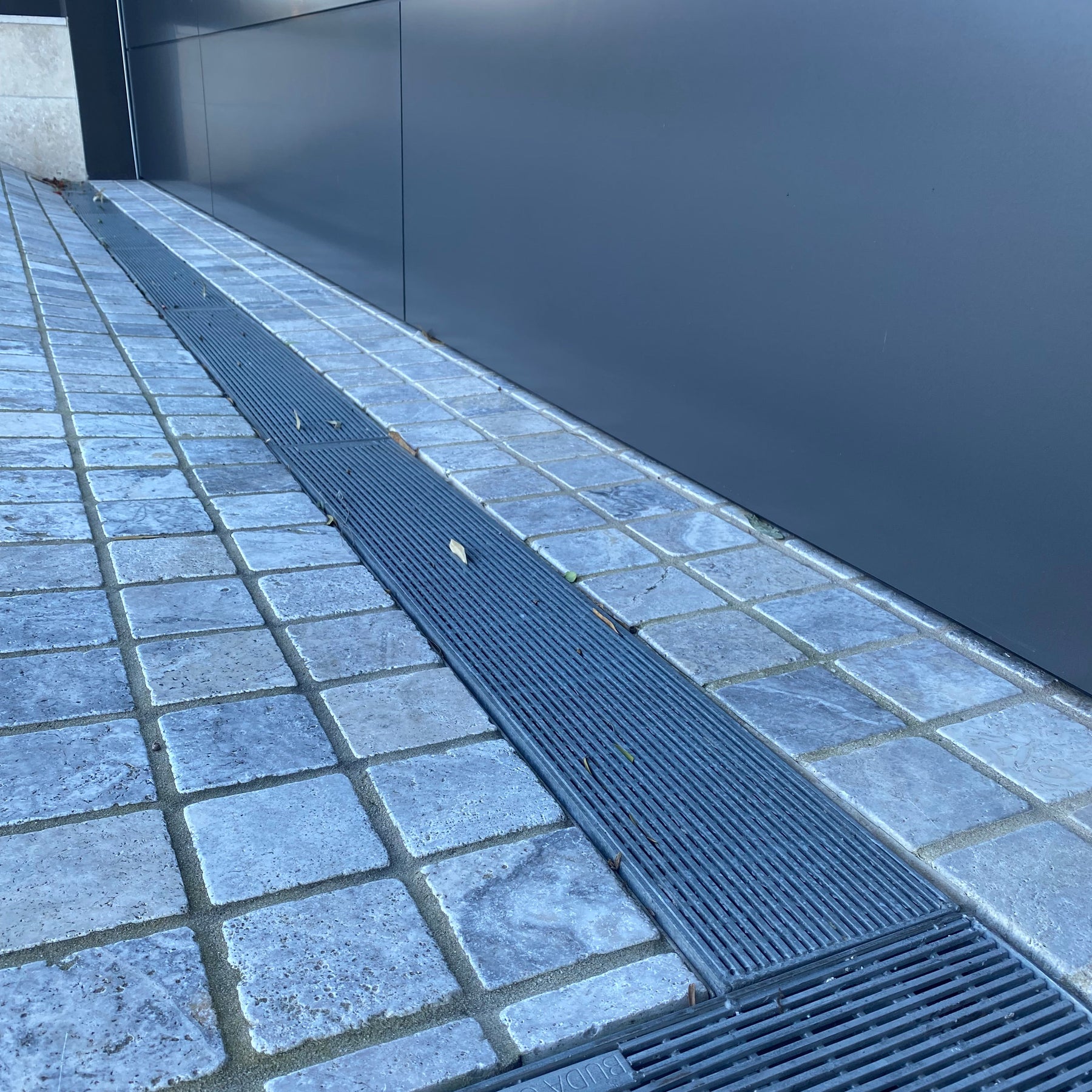

• Pedestrian Walkways: Heel-safe and pet-friendly drainage for outdoor paths and accessways.
• Garden and Landscaping Drainage: Galvanised finish withstands outdoor weather exposure.
• Commercial and Light Industrial Drainage: Multiple profile widths suit varied trench and drainage requirements.

Accessories available to suit:

• Hex Head Screws - Packet of 25 screws to assist with installing accessories onto the box drain
• Hex Head Screw Bit - Screw bit to suit our hex head screws to assist with the installation of the screws
• Concreting Tape - Available in 150mm wide x 15m long to be used on the top of the box drain prior to pouring of concrete, allows for less damage and easy clean up after a concrete pour. May need to be doubled up on wider drains. Recommended to be removed 48 hours after installation.
• Galvanised Strainer - 80mm Galvanised Strainer with a 90mm flange designed to sit inside our 90mm Outlets to collect any additional debris that makes it past your grate without blocking your pipe.
• Box Ties - Our concrete box tie screws into the side of the box drain and holds it in place before the pour. You can either tie it to the reinforcing steel with tie wire or put a peg through the hole to anchor it. Once the concrete is poured, the tie stays in as a permanent connection between the drain and the slab. We recommend 2 ties per metre, one on each side of the box drain.
• End Caps - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain
• Joiners - These are easily installed using screws, U shaped and join the bases of 2 lengths together to allow ease of creating longer lengths
• Base Outlets - Available in multiple sizes depending on the profile selected, screwed easily onto the base of the drain to more easily connect to the pipe system beneath the drain
• End Cap Outlets - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain whilst also connecting to your pipe
• 90 Degree Joiners - Available to join 2 lengths together on a 90 degree angle

Simple Steps to Install Box Grate:

• Attach the end caps with screws.
• Drill the bottom to fit the outlet and secure with screws.
• Set the drain above the pipe ready for concrete pour around the grate.
• Pour concrete!

Quick and easy installation!

Care Guide

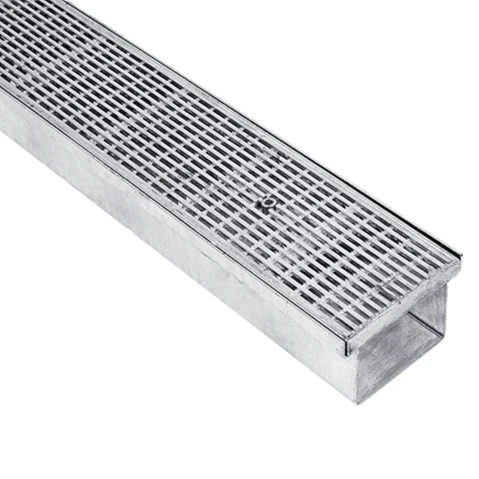

Specification Sheet

This product is made from Hot Dip Galvanised Steel.
It is suitable for use in exterior applications. Some examples include driveways, walkways or garden areas.

The advantages of our Heelguard include:

- Wedge wire pattern with bars welded together with cross bars for additional support

- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow

- Edge bars to eliminate sharp edges

- Tapered cross bars reduces the build up of dirt & grime

- Heel safe & Pet Friendly

- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain

- Modern and stylish finish
