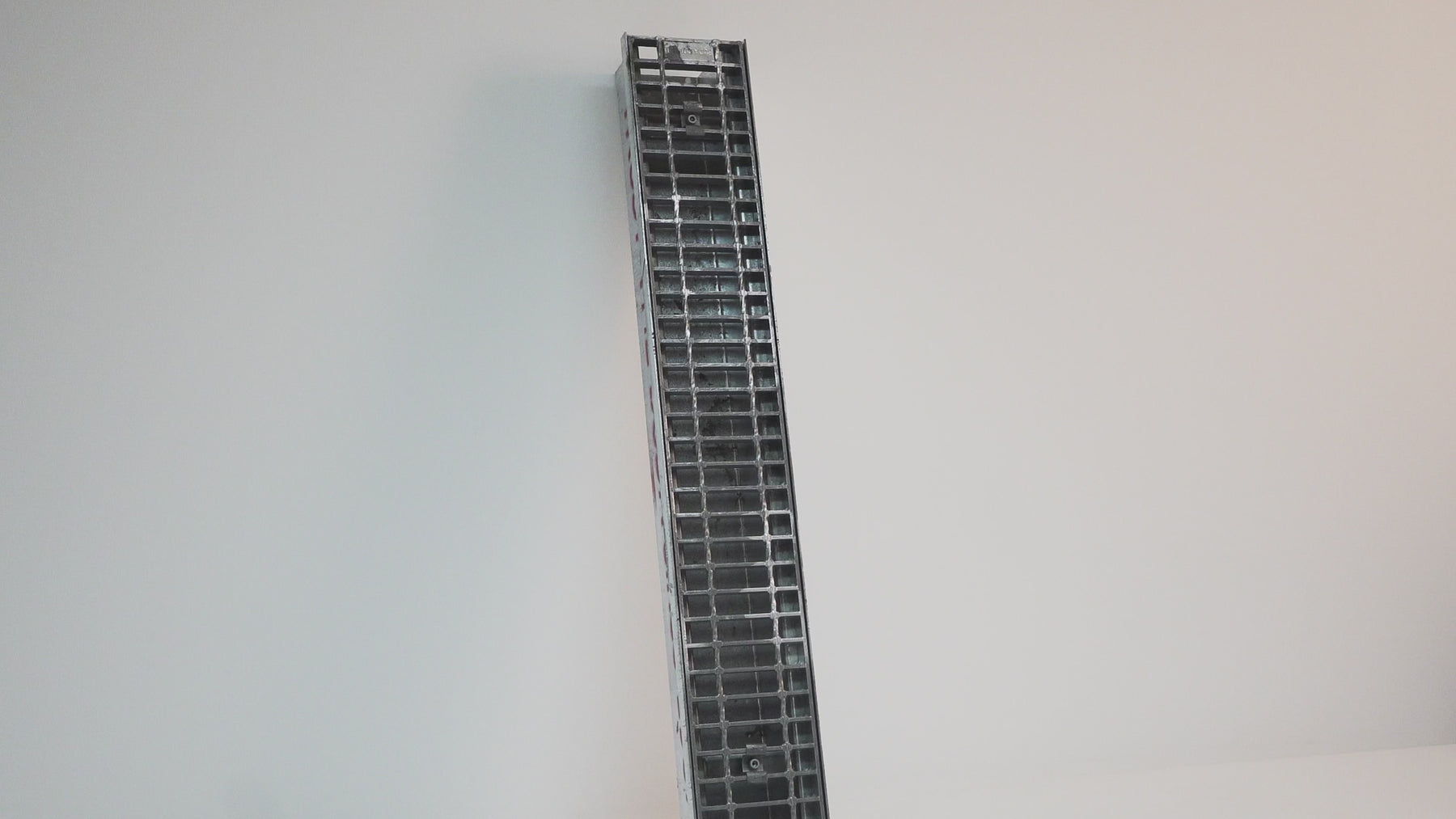

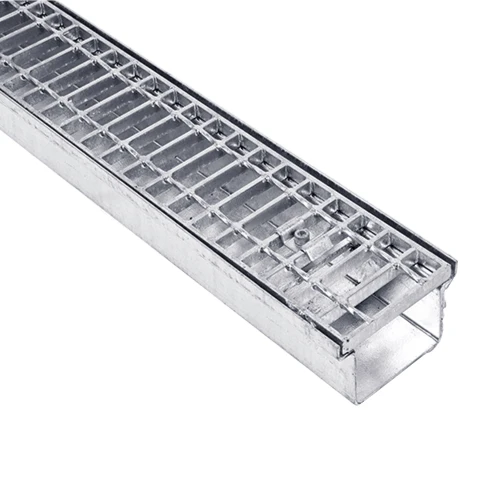

Sold in standard lengths, our affordable traditional box drains are the perfect drop in solution that can be easily cut and joined on site to meet your requirements. Our box grates are bolted down to the box ensuring there is no movement as they are driven over. Grates can be removed using an allen key for cleaning.

Available in the following profiles:

• 125mm wide x 80mm deep - Sold in 1, 2 and 3 metre lengths
• 150mm wide x 125mm deep - Sold in 1, 2 and 3 metre lengths
• 200mm wide x 170mm deep - Sold in 2 and 3 metre lengths
• 300mm wide x 170mm deep - Sold in 2 and 3 metre lengths

Sold in standard lengths with end caps, joiners and outlets sold separately. There is no cut out in the base for the outlet position allowing you to cut out its location wherever you require it. Once you select the section profile you would like, the accessories to suit will appear.

Accessories Available to suit:

• Hex Head Screws - Packet of 25 screws to assist with installing accessories onto the box drain.
• Hex Head Screw Bit - Screw bit to suit our hex head screws to assist with the installation of the screws
• Concreting Tape - Available in 150mm wide x 15m long to be used on the top of the box drain prior to pouring of concrete, allows for less damage and easy clean up after a concrete pour. May need to be doubled up on wider drains. Recommended to be removed 48 hours after installation.
• Galvanised Strainer - 80mm Galvanised Strainer with a 90mm flange designed to sit inside our 90mm Outlets to collect any additional debris that makes it past your grate without blocking your pipe.
• Box Ties - Our concrete box tie screws into the side of the box drain and holds it in place before the pour. You can either tie it to the reinforcing steel with tie wire or put a peg through the hole to anchor it. Once the concrete is poured, the tie stays in as a permanent connection between the drain and the slab. We recommend 2 ties per metre, one on each side of the box drain.
• End Caps - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain
• Joiners - These are easily installed using screws, U shaped and join the bases of 2 lengths together to allow ease of creating longer lengths
• Base Outlets - Available in multiple sizes depending on the profile selected, screwed easily onto the base of the drain to more easily connect to the pipe system beneath the drain
• End Cap Outlets - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain whilst also connecting to your pipe
• 90 Degree Joiners - Available to join 2 lengths together on a 90 degree angle

Please note: drains are all in 1 metre pieces bolted down to the base and have buda.com.au tagging on each grate.

Simple Steps to Install Box Drain:

• Attach the end caps with screws.
• Drill the bottom to fit the outlet and secure with screws.
• Set the drain above the pipe ready for concrete pour around the drain.
• Pour concrete!

Quick and easy installation!

Care Guide

Specification Sheet

This product is made from Hot Dip Galvanised Steel.

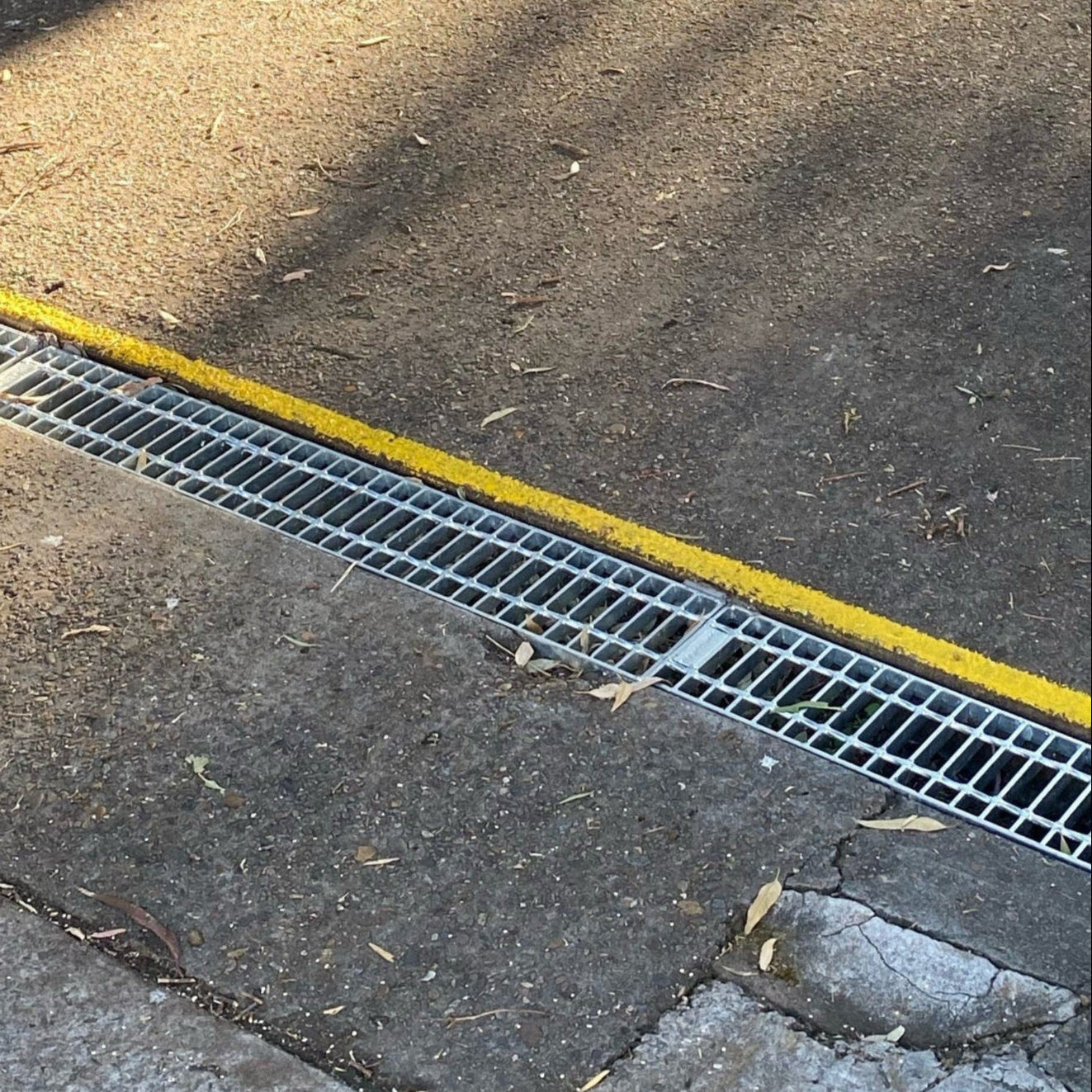

It is suitable for use in exterior applications. Some examples include driveways, walkways or garden areas.
