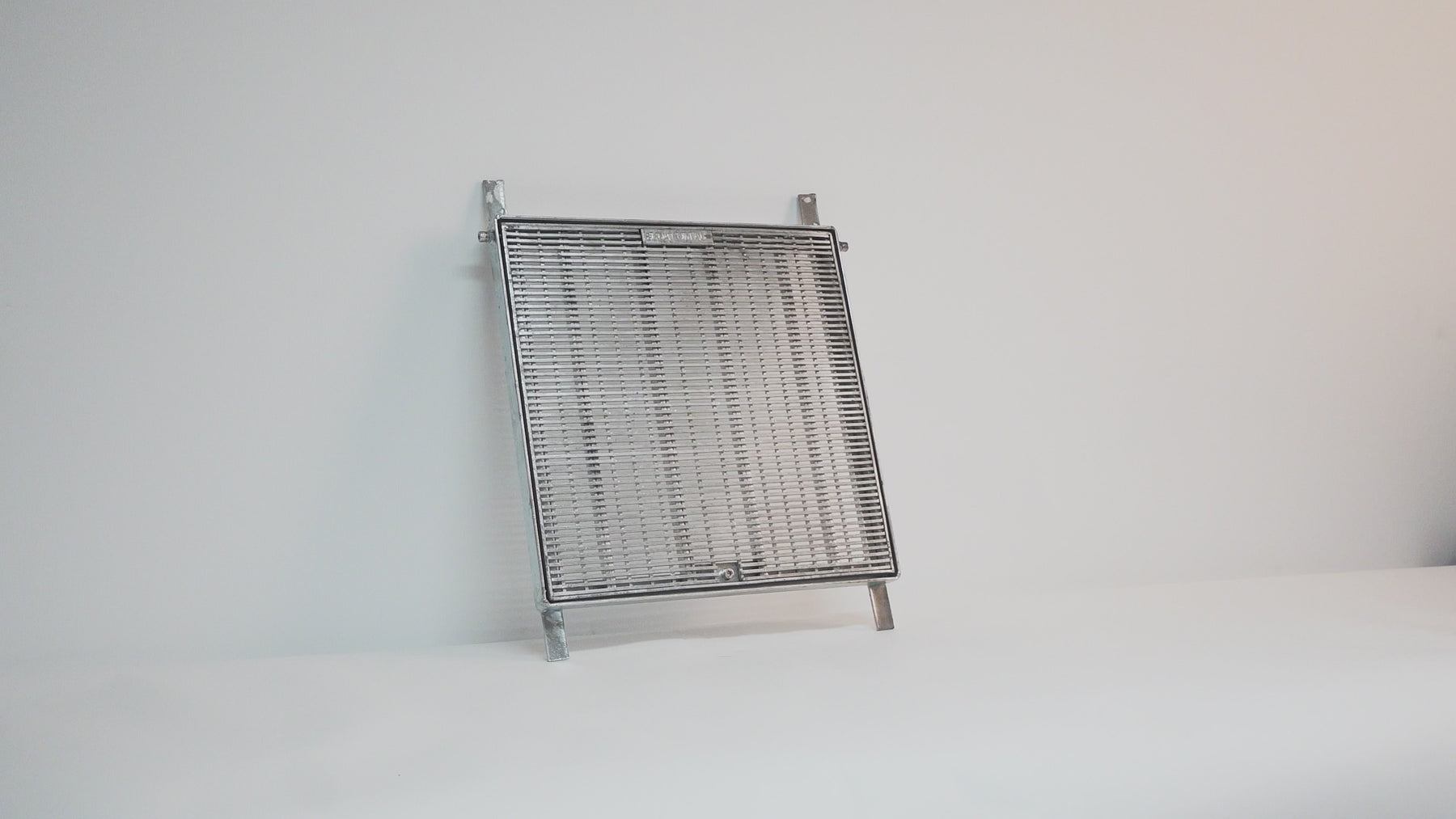

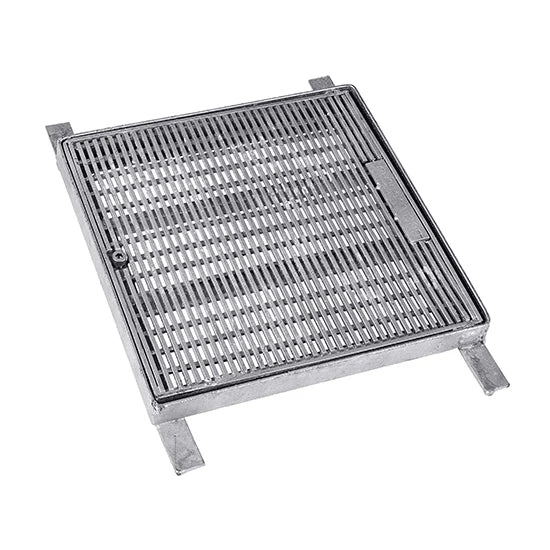

Budaguard™- Heelguard Pit Grate - Galvanised Steel
When you need the ultimate balance of heavy-duty strength and pedestrian safety, the Budaguard™ Heelguard Galvanised Pit Grate is the industry standard. We offer the premium wedge-wire style pattern in a durable galvanised finish.
Our popular Budaguard™ heelguard grate and frames are available in a range of sizes in both light and medium duty (depending on the size you require).
Hinged and lockable, these grates and frames are a stylish and affordable option that can be used in a range of applications. Those larger sizes are double hinged and lockable for ease of access.
All of these heelguard grate sizes are Anti-Slip tested to Australian standards AS 3996: 2019.
| Product Drawings | Light | Medium |
| 300mm x 300mm | N/A | Drawing |
| 450mm x 450mm | Drawing | Drawing |
| 600mm x 600mm | Drawing | Drawing |
| 900mm x 600mm | N/A | Drawing |
| 900mm x 900mm | Drawing | Drawing |
| 1000mm x 1000mm | Drawing | Drawing |
| 1200mm x 1200mm | Drawing | Drawing |
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
Most heelguards focus strictly on gap size, but we designed Budaguard™ to satisfy both the engineer and the architect. It is built heavier and tougher—hot-dip galvanized to AS4680 and certified to AS3996 load standards—ensuring it meets the rigorous safety and durability demands of any site.
By combining this industrial-grade strength with a sleek architectural profile, we’ve created a product that performs under high-traffic conditions while seamlessly enhancing the project's visual aesthetic.
Yes. Maintenance is straightforward—simply use water and a soft-bristled broom to clear away any debris. To protect the product’s lifespan, avoid using abrasives, as these can damage the hot-dip galvanising and expose the steel to corrosion. A regular, gentle wash-down is all that is required.

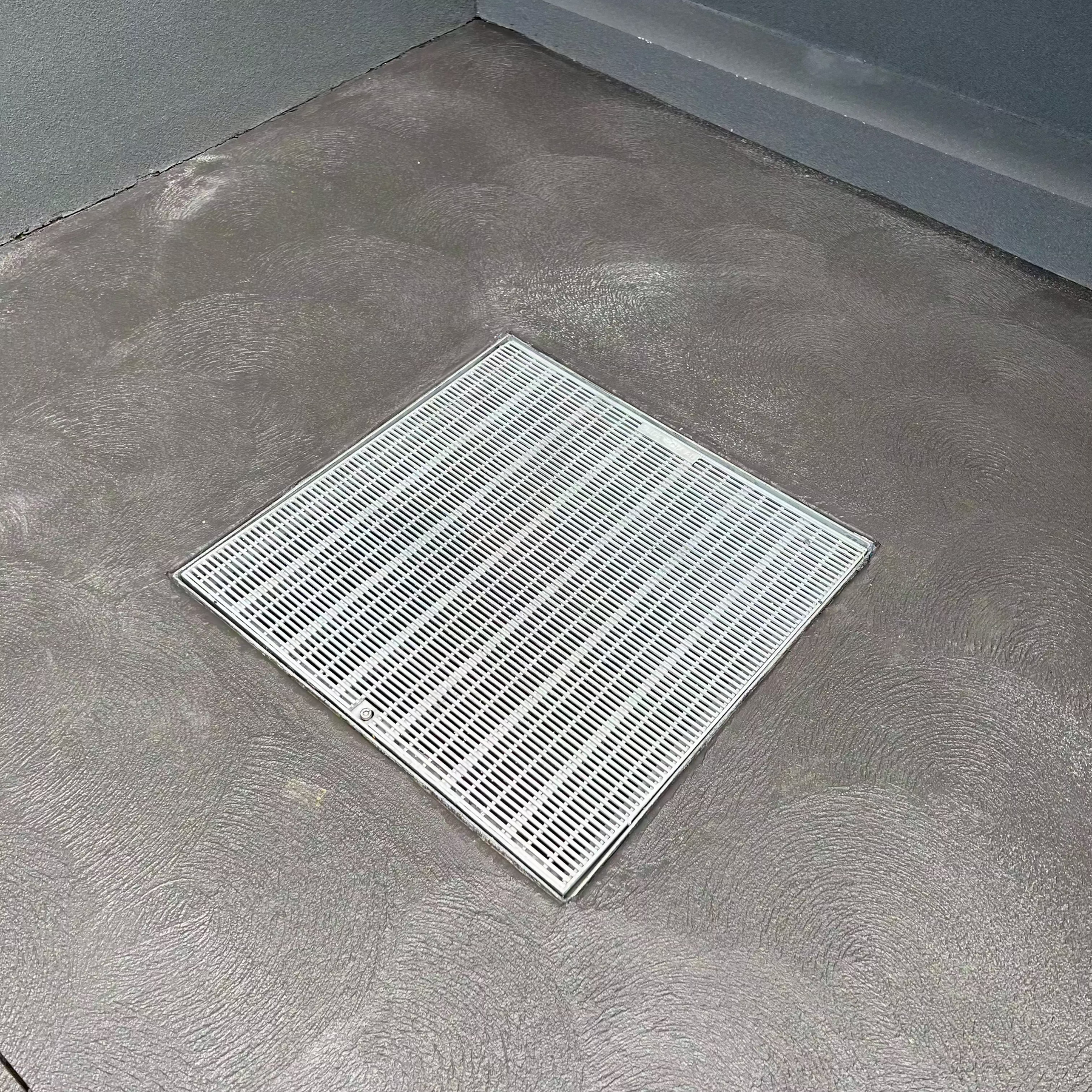

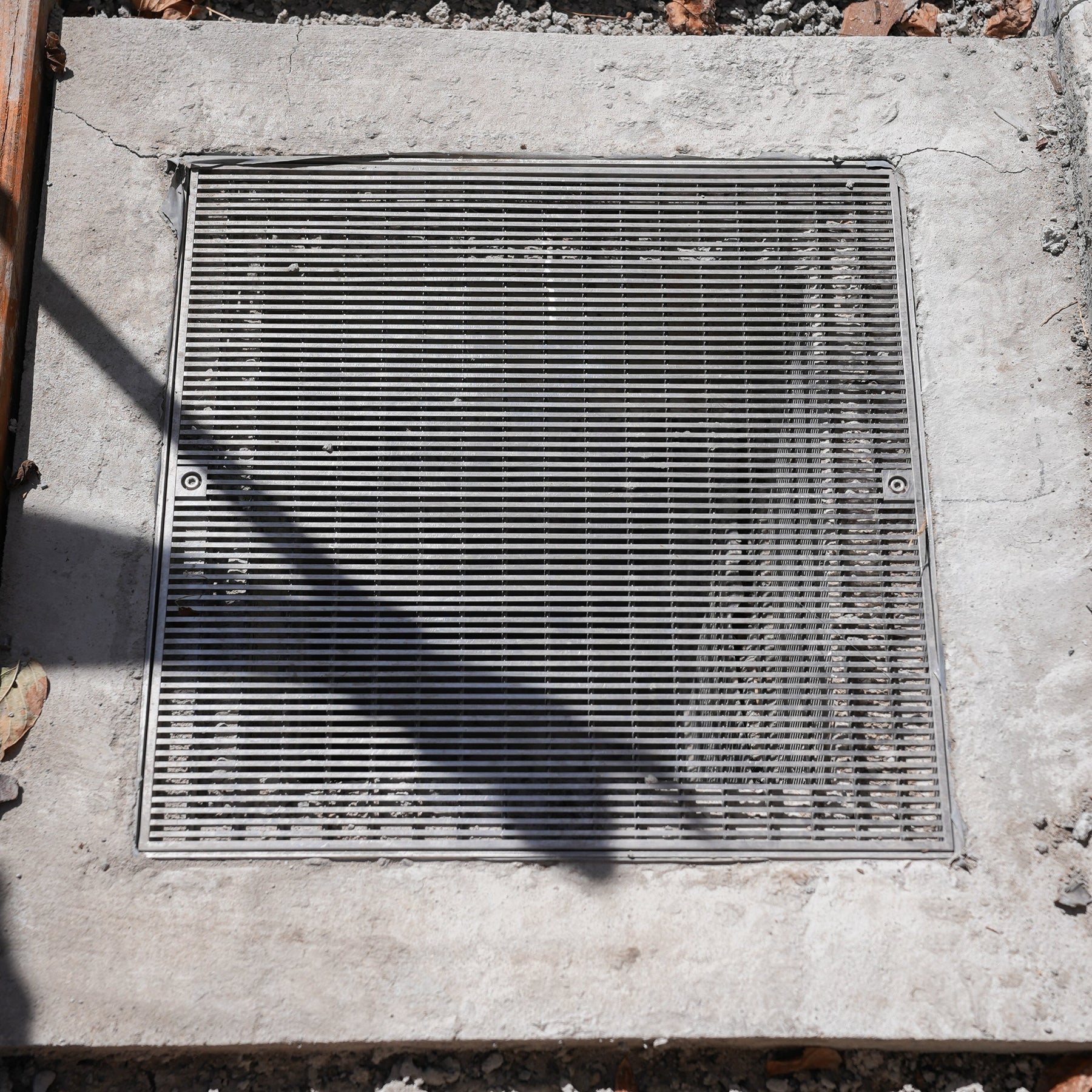

Yes, we supply these as complete grate and frame sets. This ensures the Budaguard™ grate sits perfectly flush with your concrete or pavers, eliminating trip hazards.
There is a removable bolt. Once removed, you can easily use a hook to hinge them open for access to the pit underneath.
