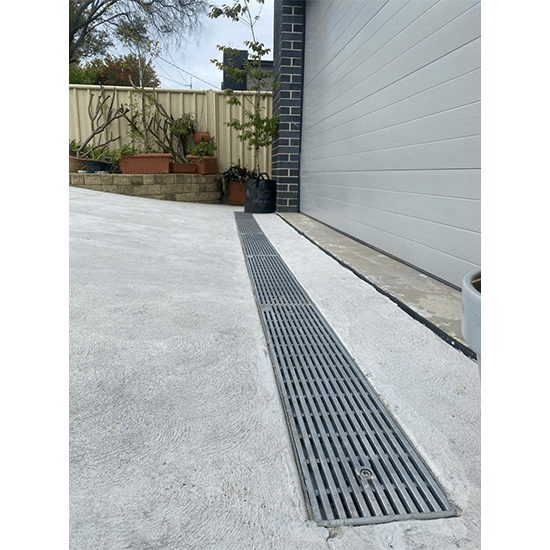

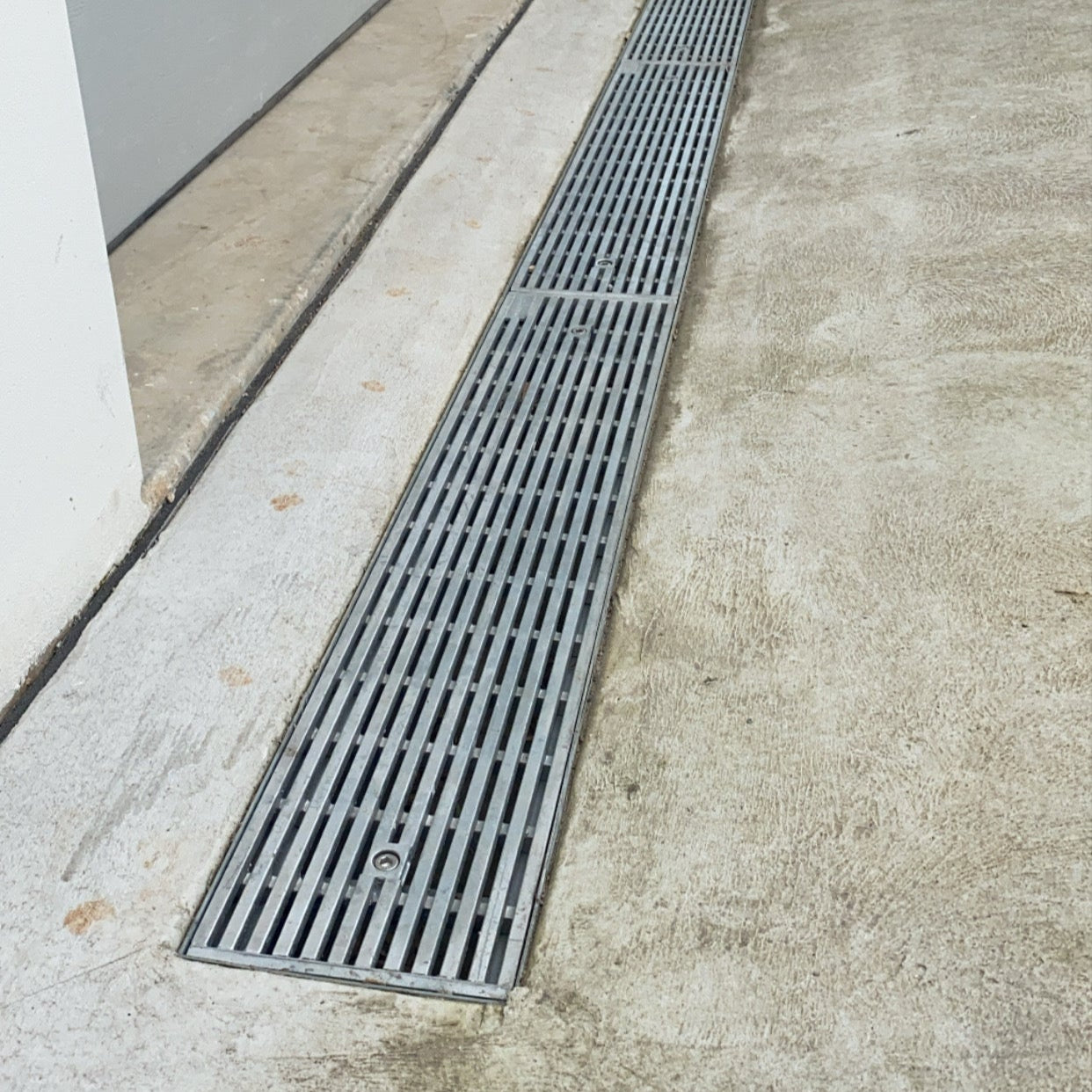

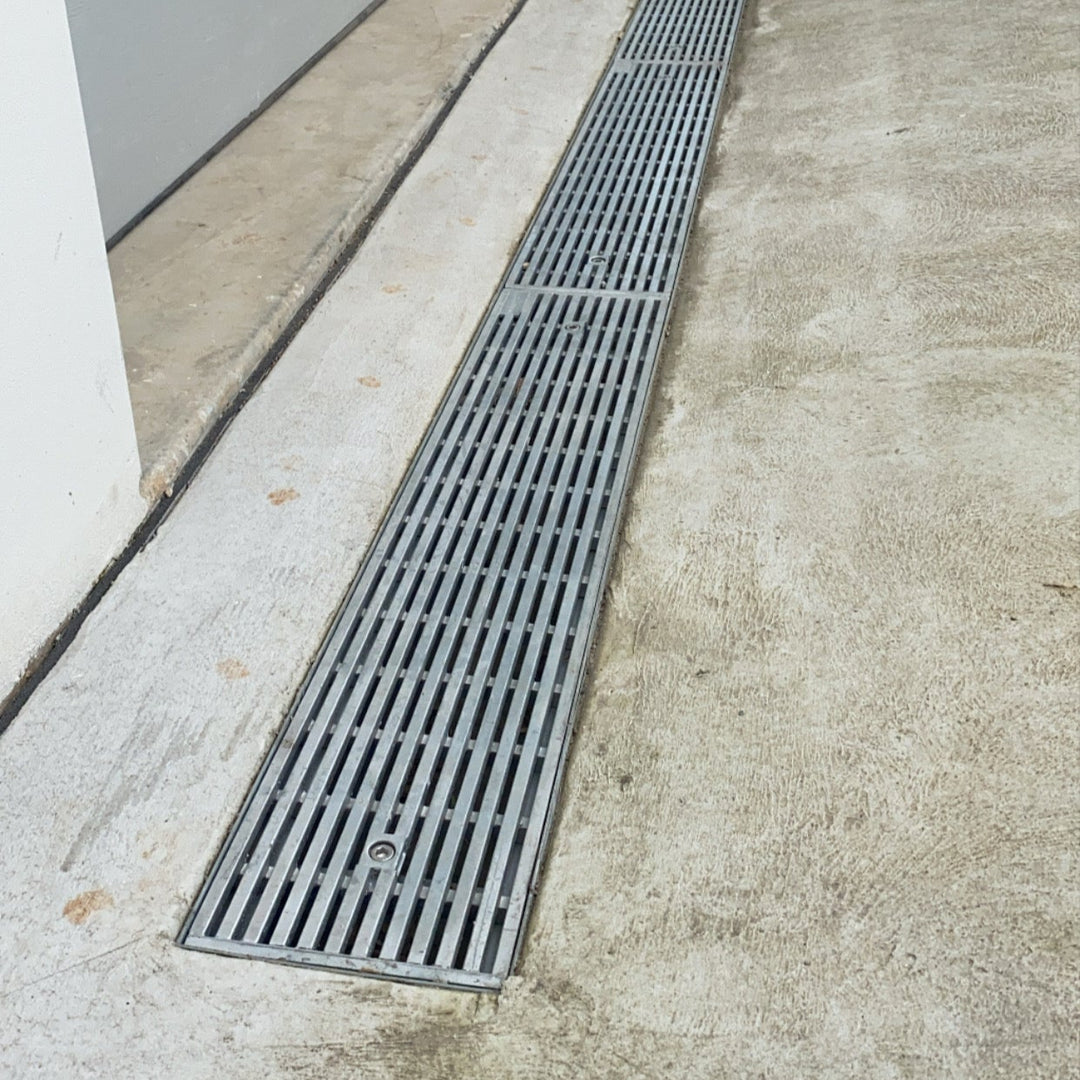

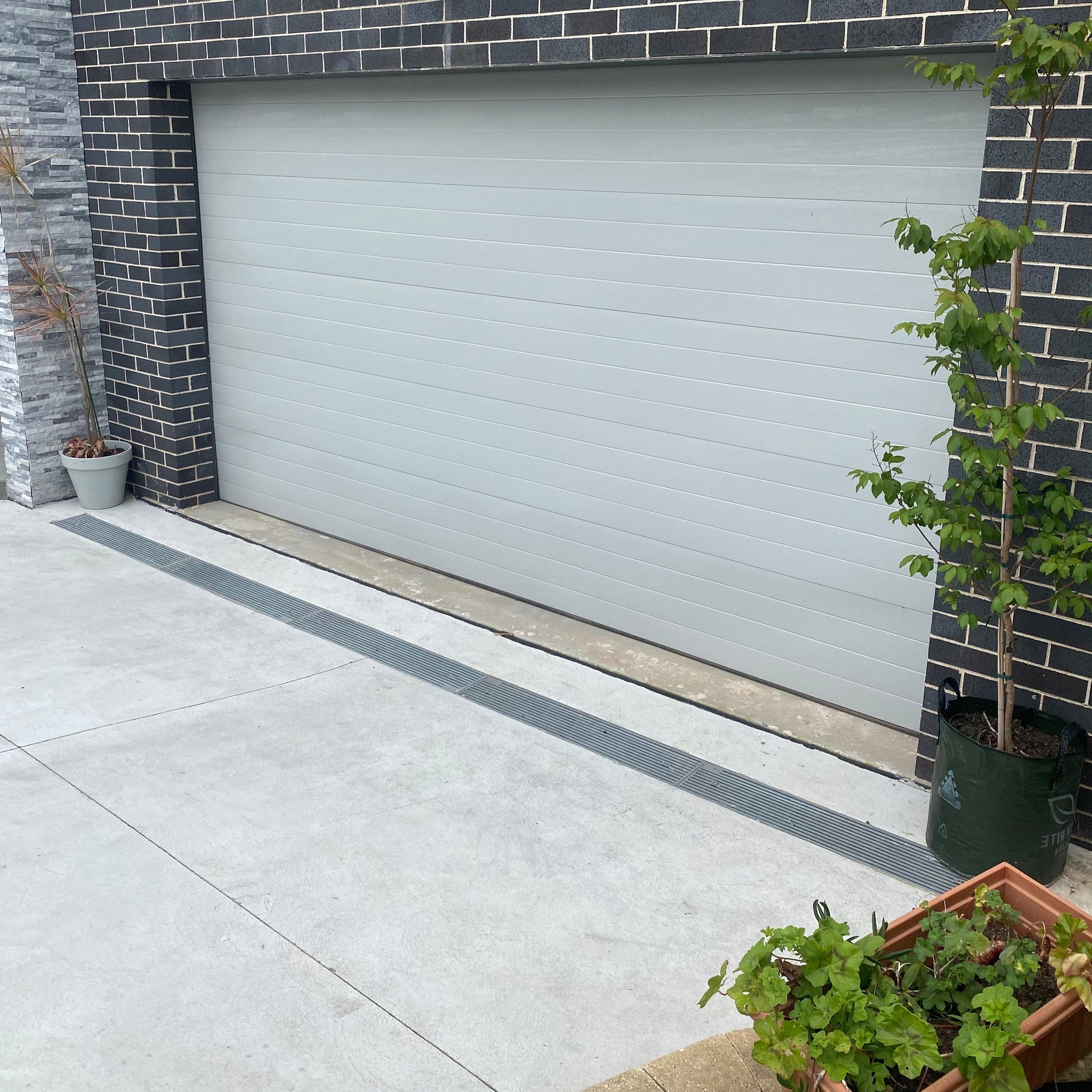

Available in 2 of our most popular sizes, the Maxi-Heelguard™ box drain is the perfect ready-to-go solution to form a drainage system in your driveway. Sold in standard lengths, these can be easily cut down and joined on site to meet your requirements. Grates bolt down to the base to prevent movement as they are driven over. Grates can be removed using an Allen key.

Available in the following profiles:

• 150mm wide x 125mm deep - Sold in 1, 2 and 3 metre lengths
• 200mm wide x 170mm deep - Sold in 2 and 3 metre lengths

With end caps, joiners and outlets sold separately, these box drains are easily cut, joined and modified on site to meet your requirements. There is no cut out in the base of the drain for the outlet position, allowing you to cut the position wherever you require it. Once you select the section profile you would like, the accessories to suit will appear.

Accessories Available to suit:

• Hex Head Screws - Packet of 25 screws to assist with installing accessories onto the box drain
• Hex Head Screw Bit - Screw bit to suit our hex head screws to assist with the installation of the screws
• Concreting Tape - Available in 150mm wide x 15m long to be used on the top of the box drain prior to pouring of concrete, allows for less damage and easy clean up after a concrete pour. May need to be doubled up on wider drains. Recommended to be removed 48 hours after installation.
• Galvanised Strainer - 80mm Galvanised Strainer with a 90mm flange designed to sit inside our 90mm Outlets to collect any additional debris that makes it past your grate without blocking your pipe.
• Box Ties - Our concrete box tie screws into the side of the box drain and holds it in place before the pour. You can either tie it to the reinforcing steel with tie wire or put a peg through the hole to anchor it. Once the concrete is poured, the tie stays in as a permanent connection between the drain and the slab. We recommend 2 ties per metre, one on each side of the box drain.
• End Caps - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain
• Joiners - These are easily installed using screws, U shaped and join the bases of 2 lengths together to allow ease of creating longer lengths
• Base Outlets - Available in multiple sizes depending on the profile selected, screwed easily onto the base of the drain to more easily connect to the pipe system beneath the drain
• End Cap Outlets - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain whilst also connecting to your pipe
• 90 Degree Joiners - Available to join 2 lengths together on a 90 degree angle

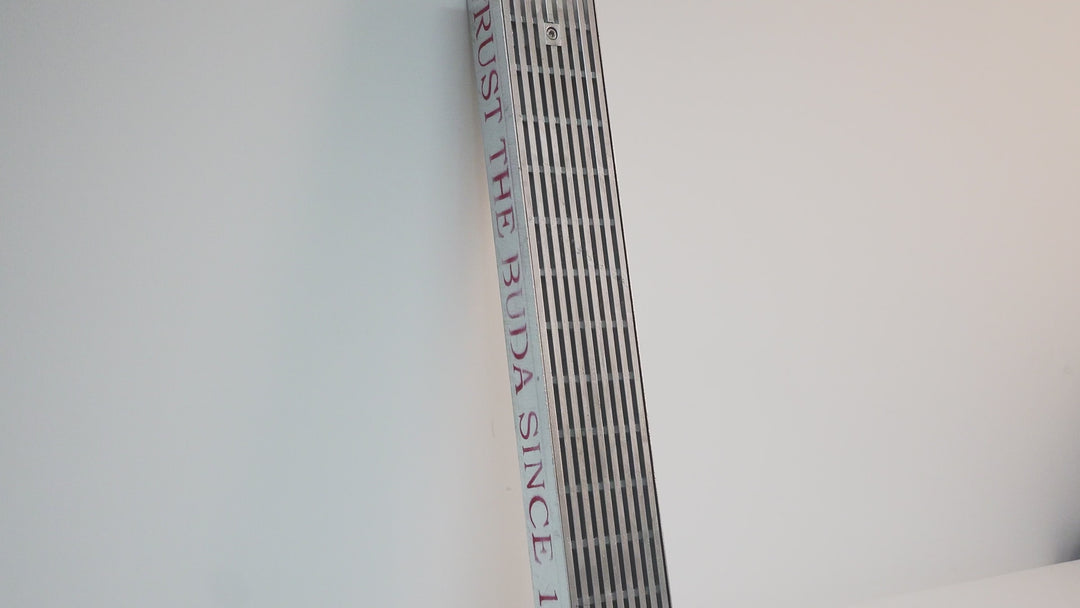

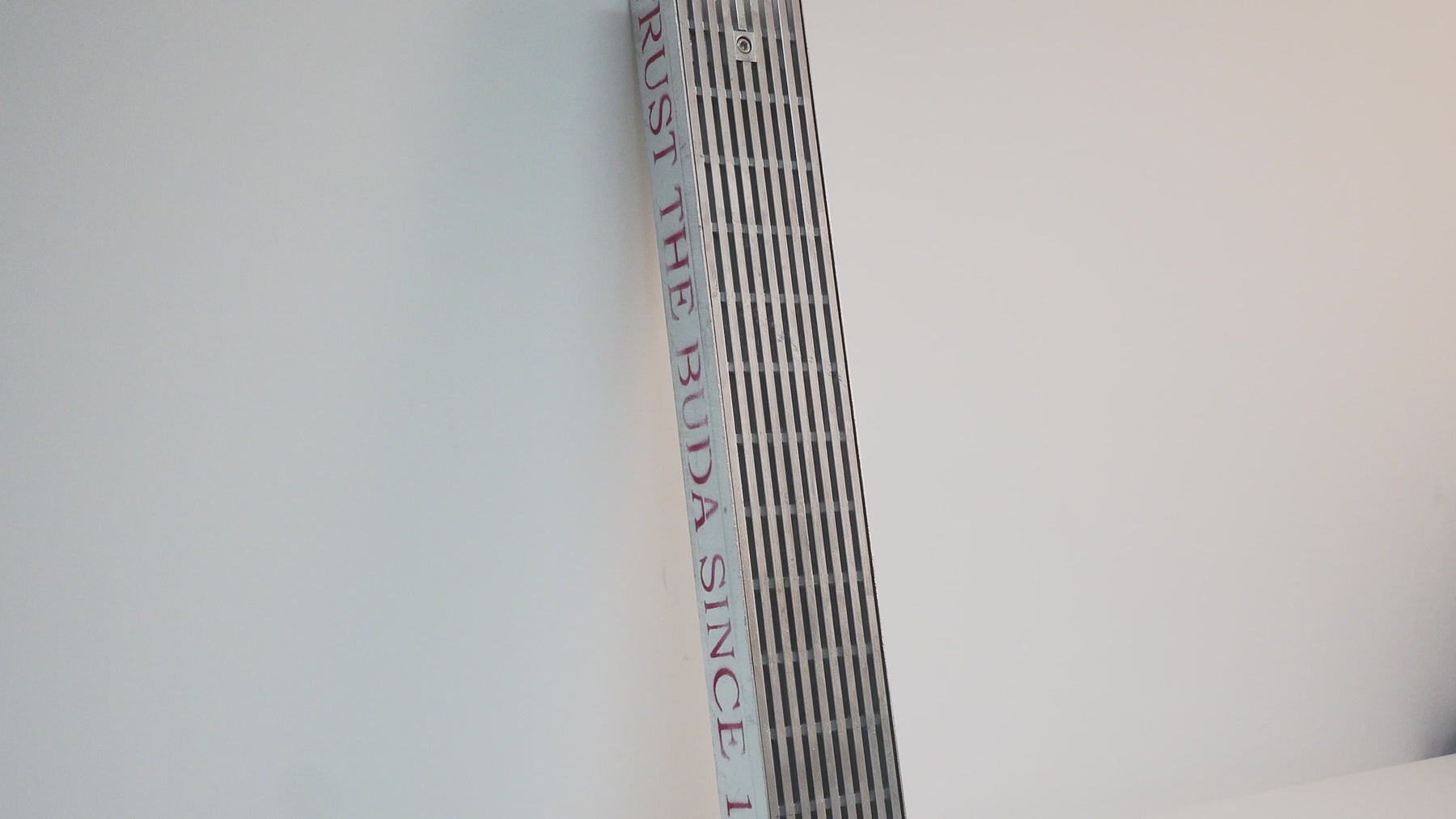

Please note: drains are supplied in 1 metre lengths and have buda.com.au tagging on each drain.

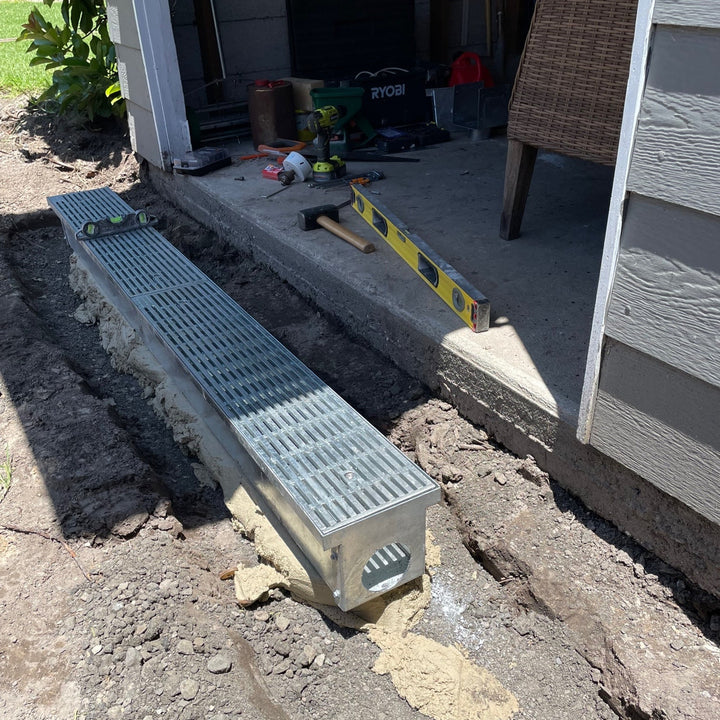

Simple Steps to Install Box Drain:

• Attach the end caps with screws.
• Drill the bottom to fit the outlet and secure with screws.

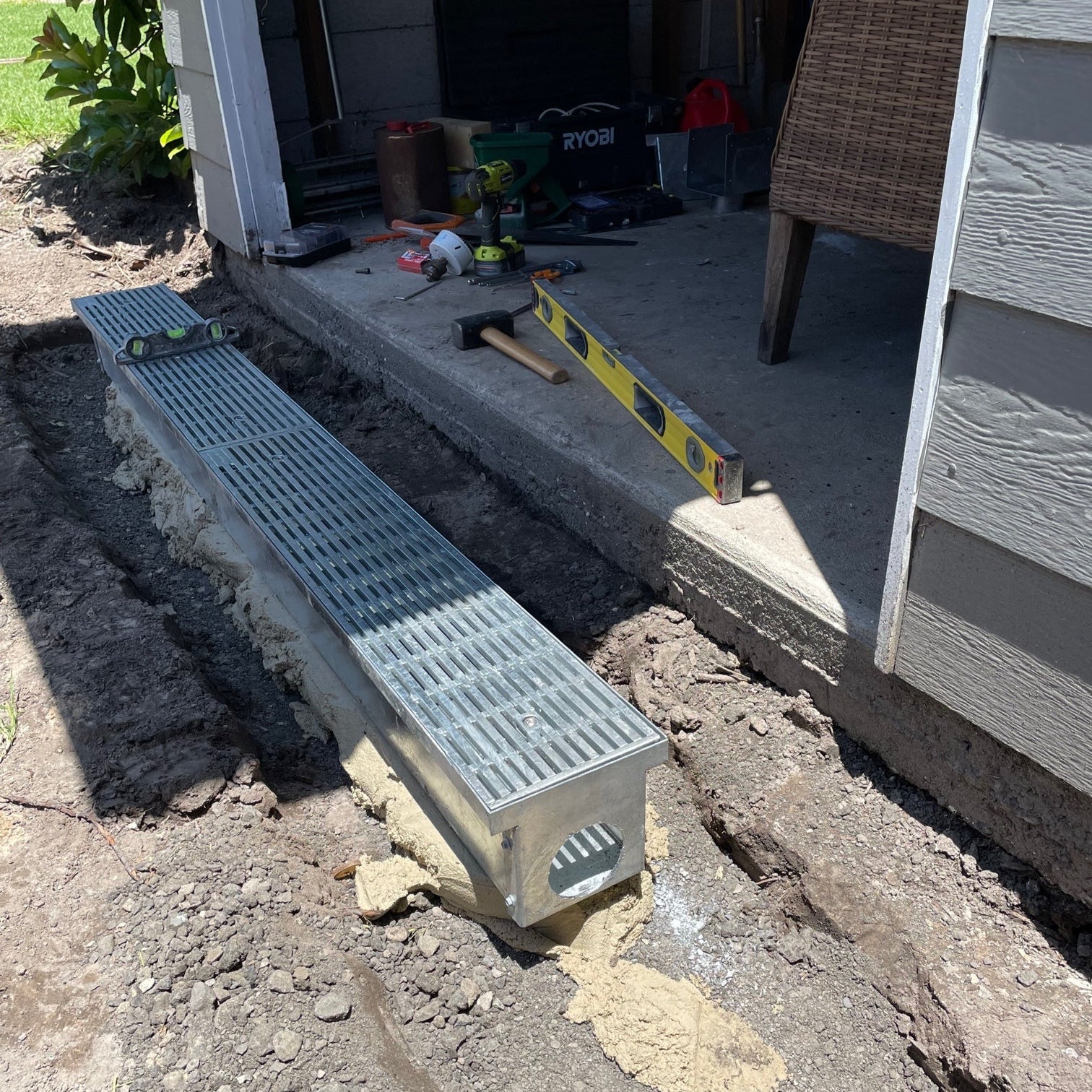

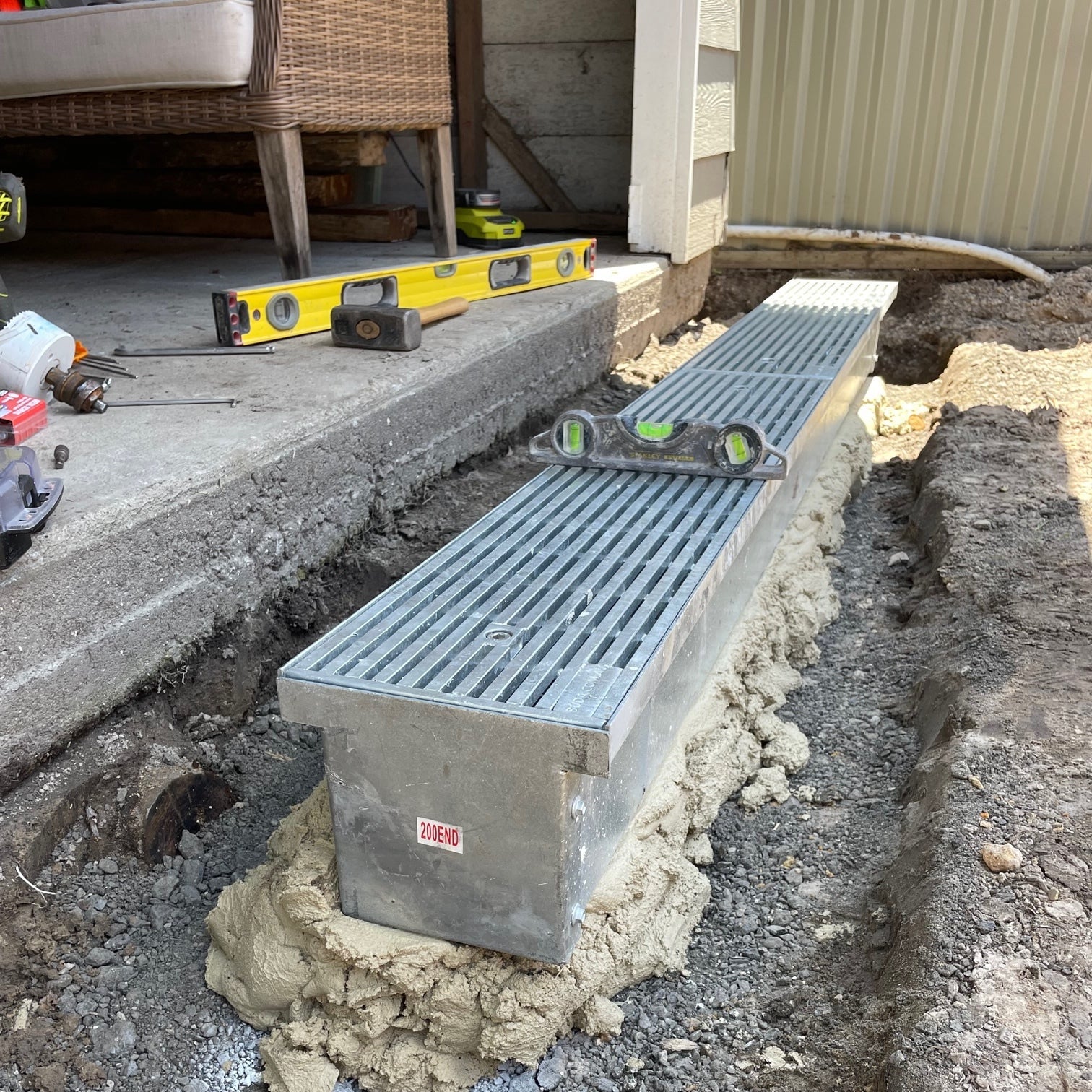

• Set the drain above the pipe ready for concrete pour around the drain.
• Pour concrete!

Quick and easy installation!

Care Guide

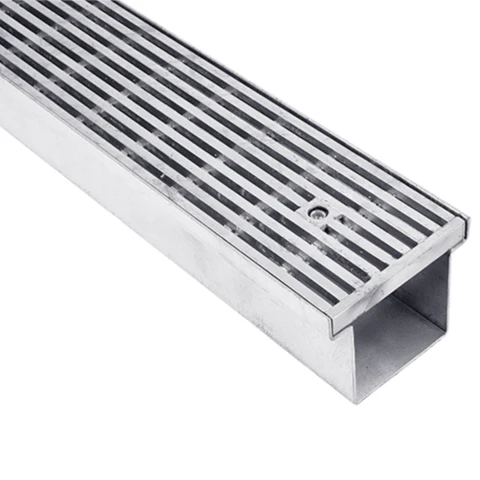

Specification Sheet

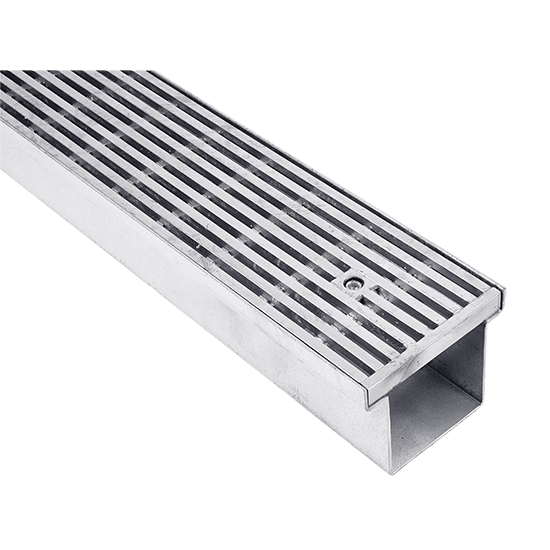

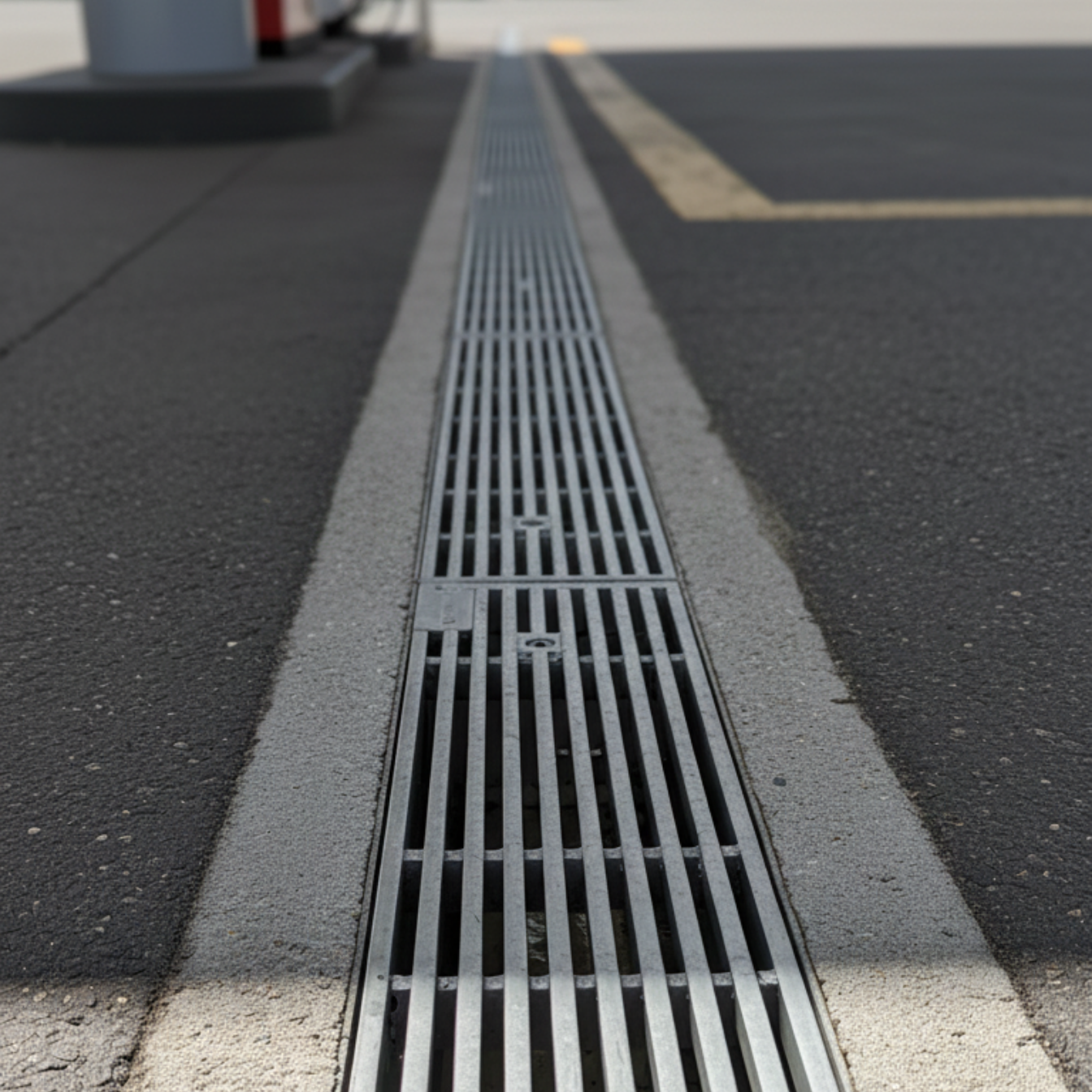

This product is made from fully Hot Dip Galvanised Steel. It is typically used in exterior applications such as walkways, driveways or garden areas.

The advantages of our Heelguard include:

- Wedge wire pattern with bars welded together with cross bars for additional support

- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow

- Edge bars to eliminate sharp edges

- Tapered cross bars reduces the build up of dirt & grime

- Heel safe & Pet Friendly

- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain

- Modern and stylish finish
