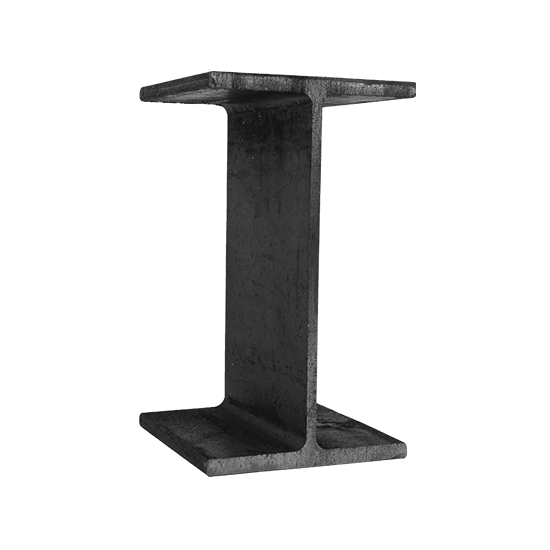

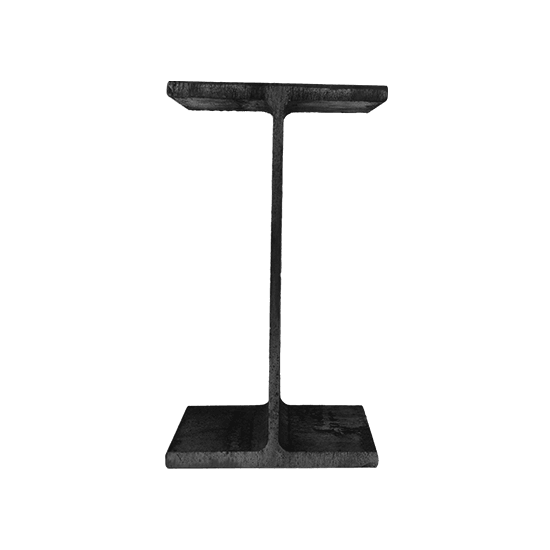

Steel Universal Beams (I-Beam & U-Beams)
Our popular structural steel range includes universal beams! Made to order, our beams are available in long lengths in either primed or galvanised steel. We also have the ability to drill holes in the webs or flange of the beam to suit your requirements. Please use the below table as a guide to figure out what section universal beam you require.
Suitable for a range of applications, universal beams are made to Australian Standards. If you are unsure as to which beam will suit your application, please consult with an engineer.
Please note this is a custom made/specialty ordered item and cannot be returned or exchanged for change of mind. Please choose carefully when ordering.
| Desc. | Kg/m | Depth (mm) | Width (mm) | Flange (mm) | Web (mm) |
| 150 UB | 14 | 150 | 75 | 7 | 5 |
| 18 | 155 | 75 | 9.5 | 6 | |
| 180 UB | 16.1 | 173 | 90 | 7 | 4.5 |
| 18.1 | 175 | 90 | 8 | 5 | |
| 22.2 | 179 | 90 | 10 | 6 | |
| 200 UB | 18.2 | 198 | 99 | 7 | 4.5 |
| 22.2 | 202 | 133 | 7 | 5 | |
| 25.4 | 203 | 133 | 7.8 | 5.8 | |
| 29.8 | 207 | 134 | 9.6 | 6.3 | |
| 250 UB | 25.7 | 248 | 124 | 8 | 5 |
| 31.4 | 252 | 146 | 8.6 | 6.1 | |
| 37.3 | 256 | 146 | 10.9 | 6.4 | |
| 310 UB | 32 | 298 | 149 | 8 | 5.5 |
| 40.4 | 304 | 165 | 10.2 | 6.1 | |
| 46.2 | 307 | 166 | 11.8 | 6.7 | |
| 360 UB | 44.7 | 352 | 171 | 9.7 | 6.9 |
| 50.7 | 356 | 171 | 11.5 | 7.3 | |
| 56.7 | 359 | 172 | 13 | 8 | |
| 410 UB | 53.7 | 403 | 178 | 10.9 | 7.6 |
| 59.7 | 406 | 178 | 12.8 | 7.8 | |
| 460 UB | 67.1 | 454 | 190 | 12.7 | 8.5 |
| 74.6 | 457 | 190 | 14.5 | 9.1 | |
| 82.1 | 460 | 191 | 16 | 9.9 | |
| 530 UB | 82 | 528 | 209 | 13.2 | 9.6 |
| 92.4 | 533 | 209 | 15.6 | 10.2 | |
| 610 UB | 101.0 | 602 | 228 | 14.8 | 10.6 |
| 113.0 | 607 | 228 | 17.3 | 11.2 | |
| 125.0 | 612 | 229 | 20 | 11.9 |
If you need something custom, please contact our office by emailing online@buda.com.au for a custom quote.
This item is made to order.
Delivery Time: Primed material typically takes 8+ business days to supply, while galvanized material takes 15+ business days**
Delivery Costs: For delivery costs, please enter your suburb and post code on the cart page.
**NOTE: Much like the broader Construction Industry, the fall-out from Covid-19 is causing delays with some of our external suppliers and supply chain. Please allow additional time for your structural steel orders, particularly orders requiring a Galvanised Finish. If you have concerns, please contact us directly before placing any orders with galvanising requirements.
