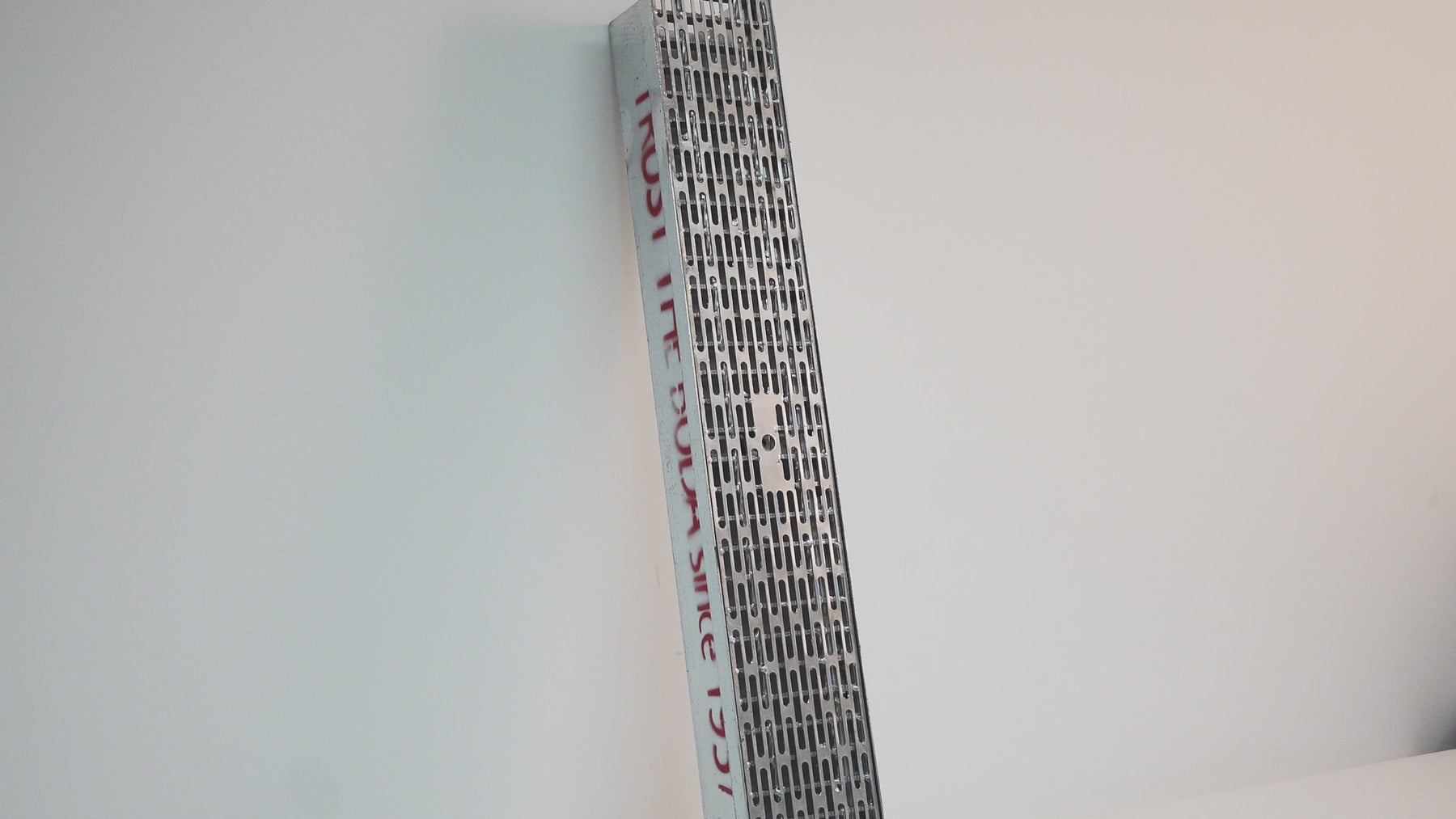

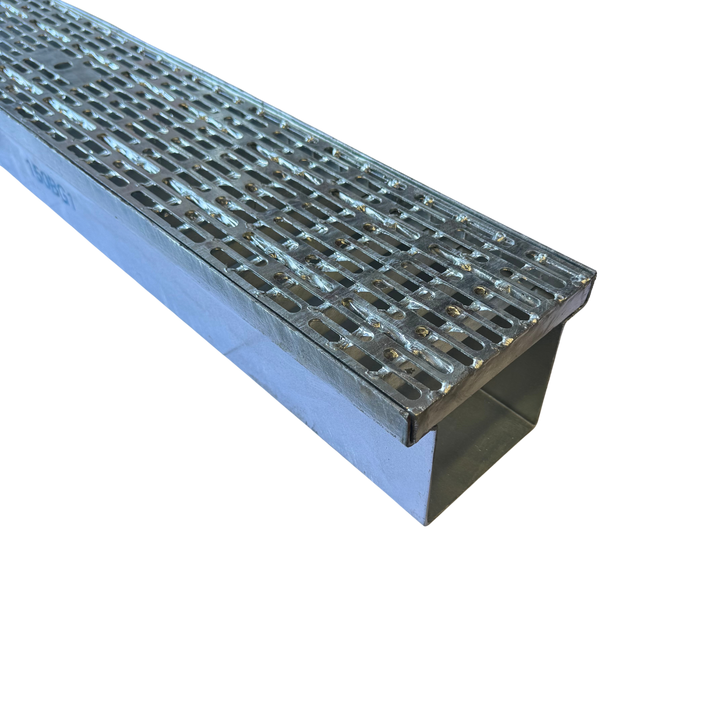

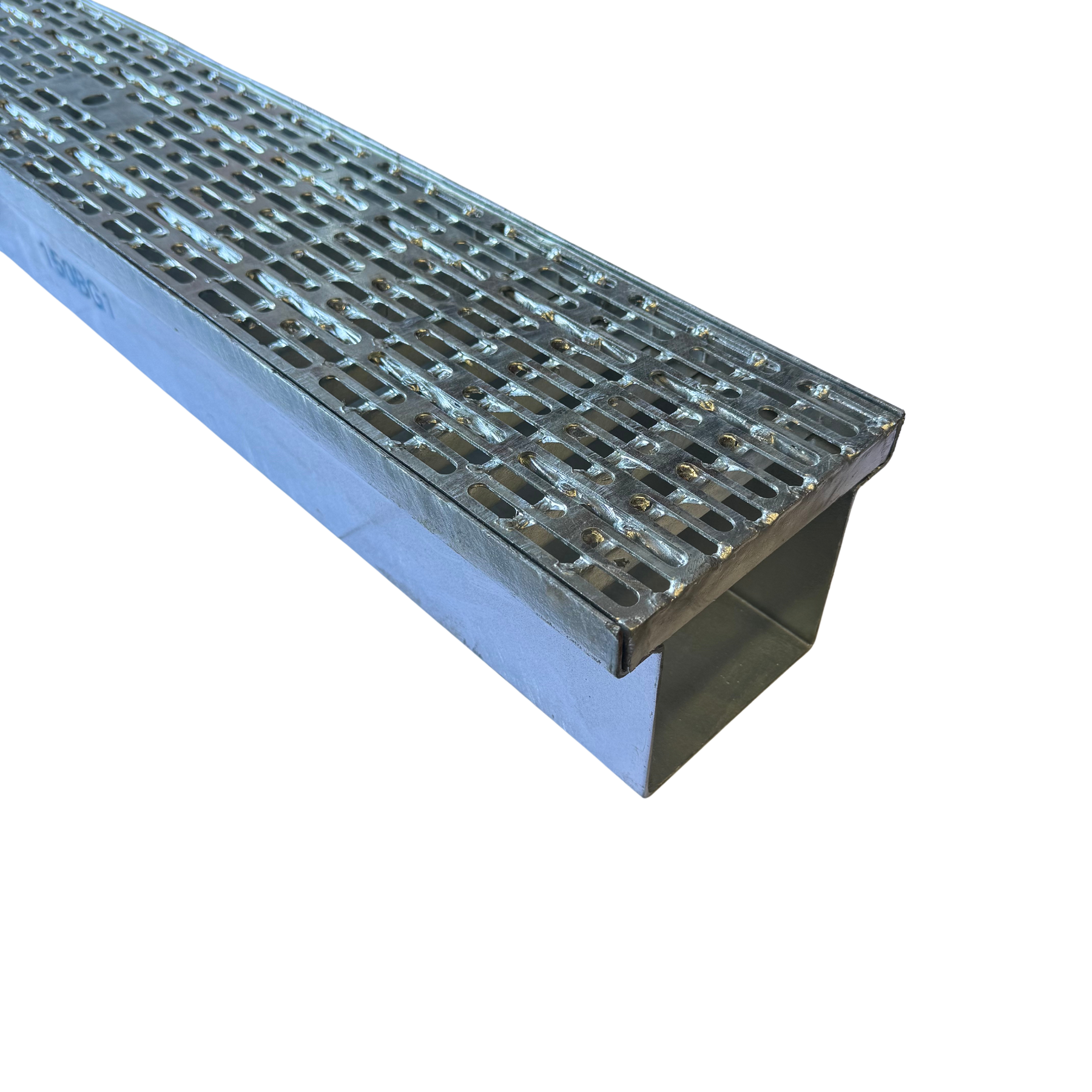

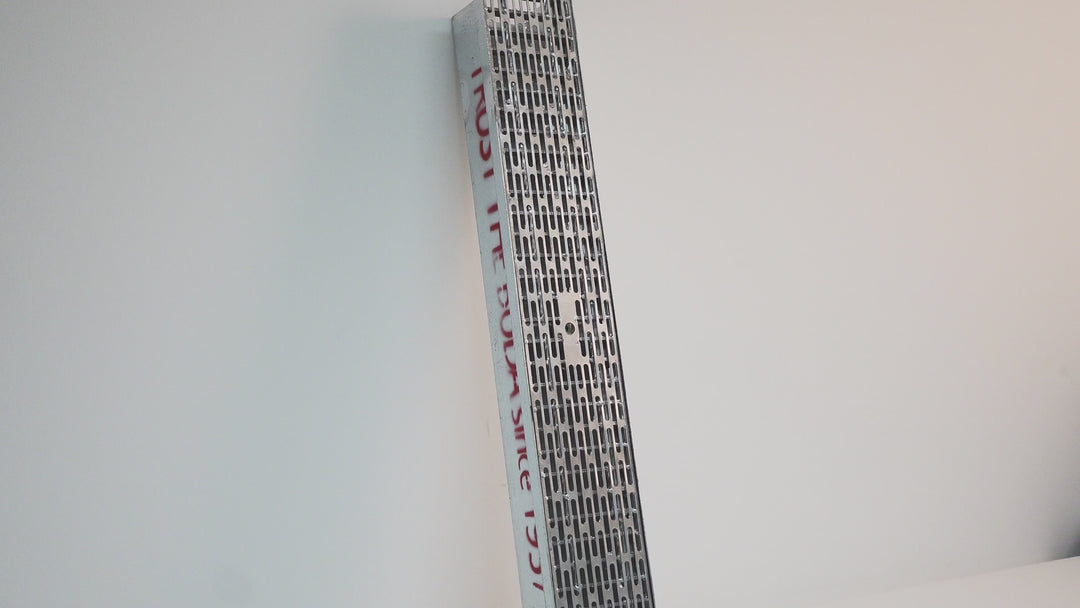

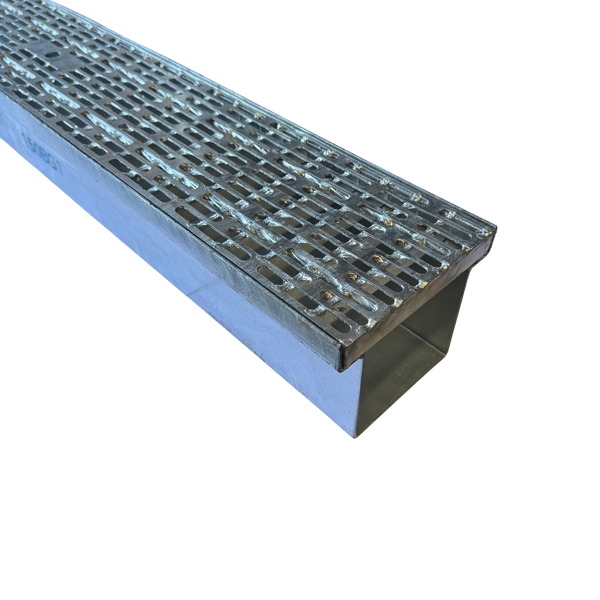

The Builders Guard™ Galvanised Trench Box Drain is the site-flexible drainage solution for residential driveways, pathways, and light commercial projects. Supplied in standard lengths that cut and join on site, it eliminates the guesswork of exact measurements before the pour. The traditional pattern delivers high flow capacity for Australian storm events, while the bolt-down design locks the grate securely to the box channel - no movement as vehicles drive over it, no removal without an Allen key. Since 1957, Vincent Buda and Company has supplied Australian builders with drainage they can count on.

Available in two profiles: 150mm wide x 125mm deep (1, 2, and 3-metre lengths) and 200mm wide x 170mm deep (2 and 3-metre lengths), both rated Class B to AS 3996:2019 for residential and light commercial driveways. End caps, joiners, and outlets are sold separately, and the base has no pre-cut outlet position - cut wherever your fall requires. Vincent Buda and Company stocks both profiles for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.

Product Specifications

• Material: Hot-dip galvanised steel
• Pattern: Traditional (parallel open-bar, high flow)
• Load Class: Class B to AS 3996:2019
• Profiles: 150mm wide x 125mm deep; 200mm wide x 170mm deep
• Lengths: 1m, 2m, 3m (150mm profile); 2m, 3m (200mm profile)
• Outlet Position: No pre-cut outlet - cut to suit your fall
• Fastening: Bolt-down to box channel; Allen key removal
• Accessories: End caps, joiners, outlets sold separately

Key Features at a Glance

• Site Flexible: Standard lengths cut and joined on site to suit any trench run without pre-measurement before delivery.
• Bolt-Down Security: Grate bolts to the box channel, preventing movement under vehicle load and deterring unauthorised removal.
• Traditional Pattern: Parallel open-bar design delivers high water flow to handle Australian downpours.
• Class B Rated: Load-tested to AS 3996:2019, suitable for residential driveways and light commercial access.

Primary Applications

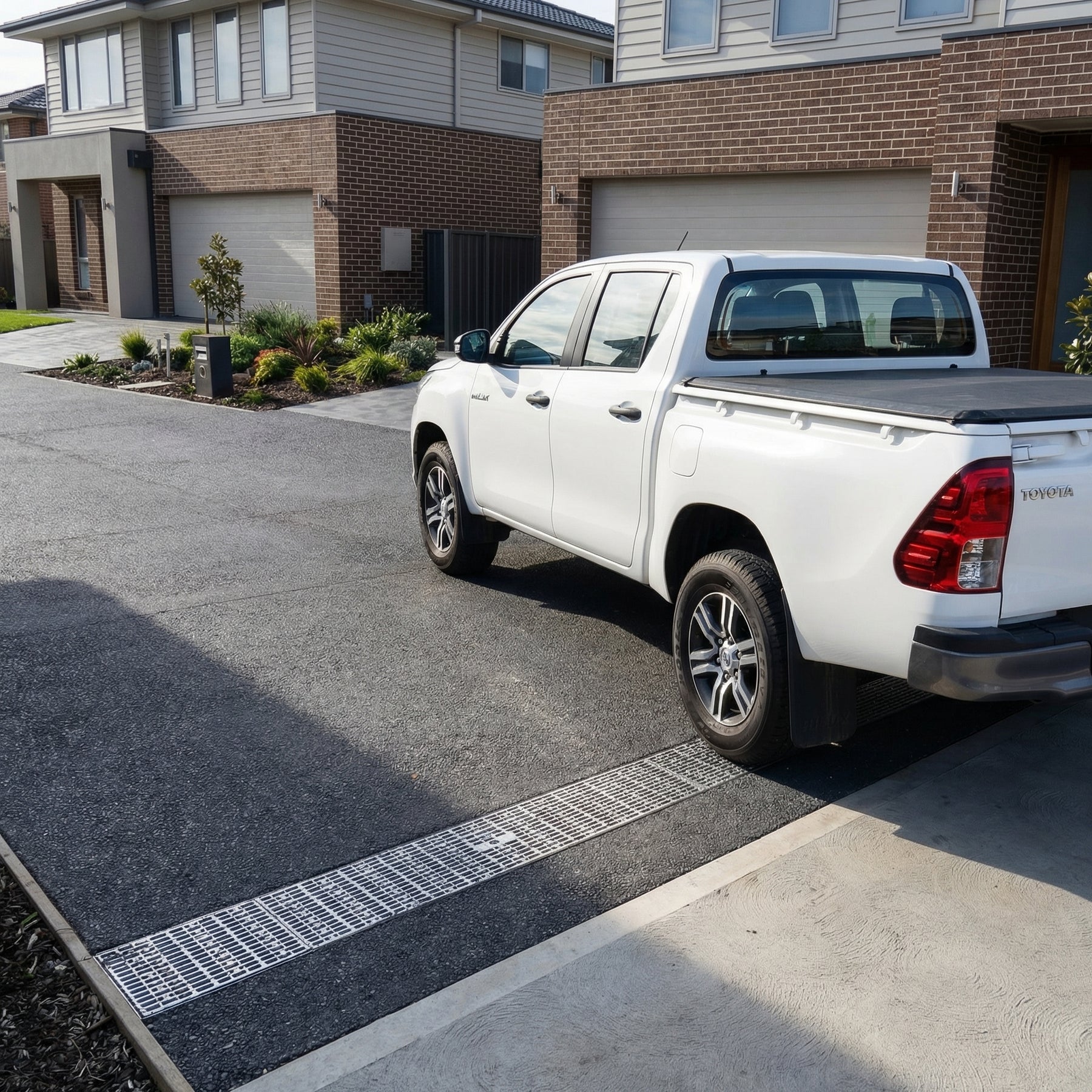

• Residential Driveways: Class B rated for domestic driveway crossovers and vehicle access areas.

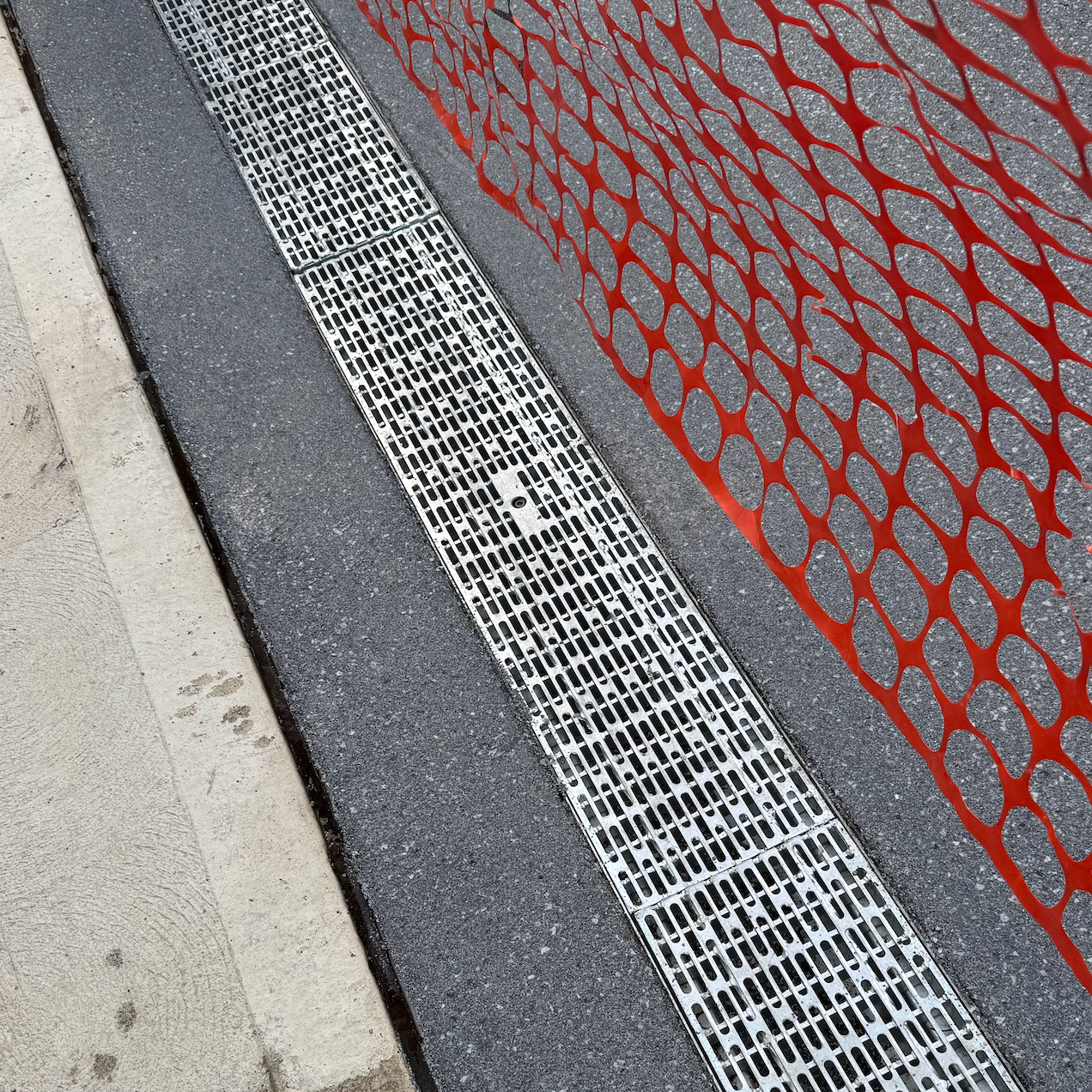

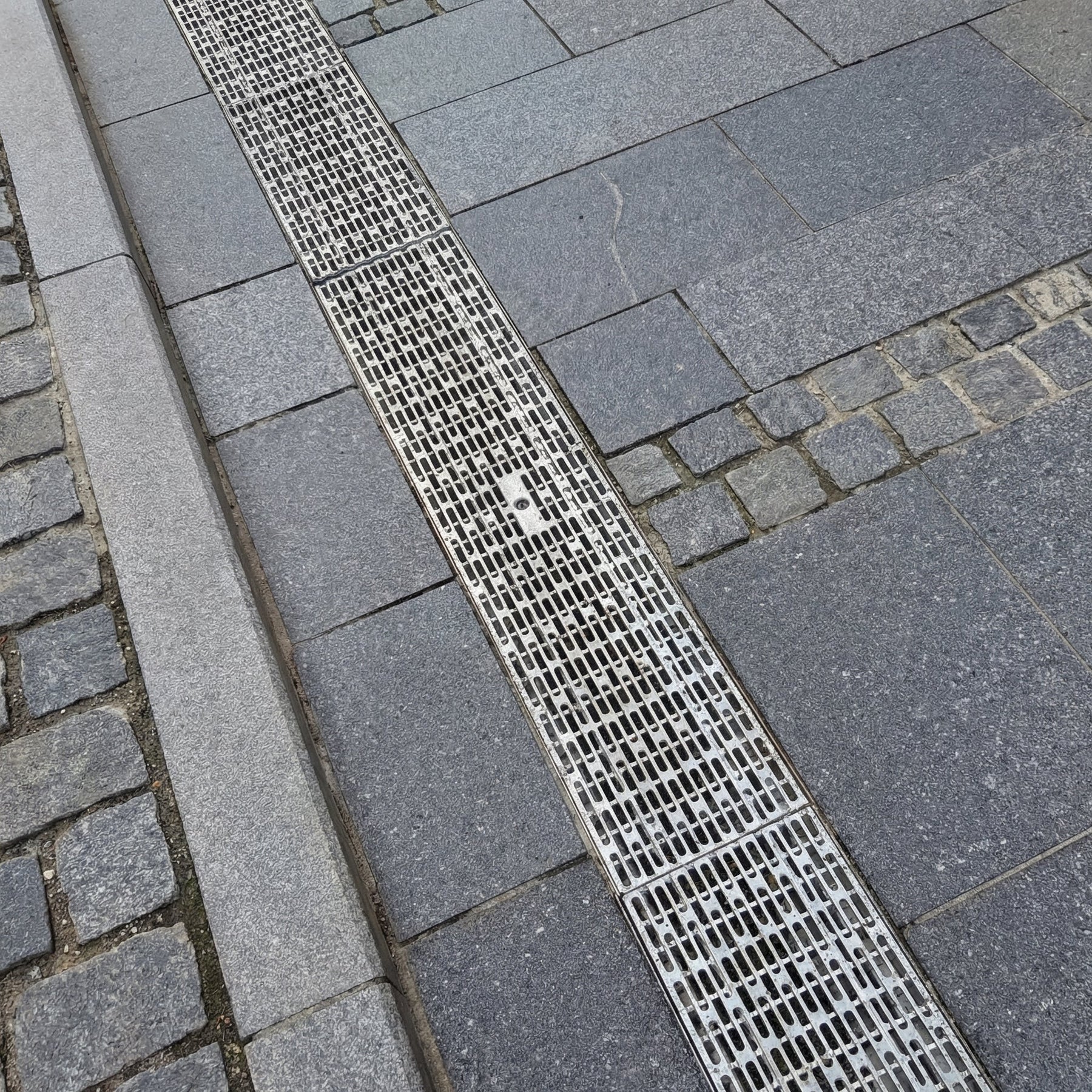

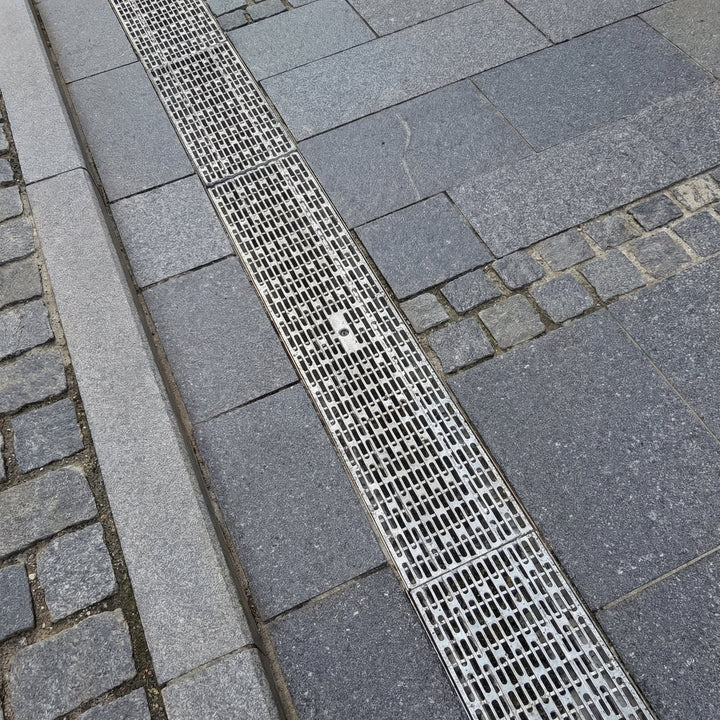

• Footpaths and Pathways: Linear drainage for pedestrian paths, courtyards, and shared access ways.
• Commercial Car Parks: Light commercial drainage where standard vehicle loads apply.
• Landscaped Gardens: Surface drainage across garden beds, retaining walls, and graded lawns.

Accessories Available to suit:

• Hex Head Screws - Packet of 25 screws to assist with installing accessories onto the box drain
• Hex Head Screw Bit - Screw bit to suit our hex head screws to assist with the installation of the screws
• Concreting Tape - Available in 150mm wide x 15m long to be used on the top of the box drain prior to pouring of concrete, allows for less damage and easy clean up after a concrete pour. May need to be doubled up on wider drains. Recommended to be removed 48 hours after installation.
• Galvanised Strainer - 80mm Galvanised Strainer with a 90mm flange designed to sit inside our 90mm Outlets to collect any additional debris that makes it past your grate without blocking your pipe.
• Box Ties - Our concrete box tie screws into the side of the box drain and holds it in place before the pour. You can either tie it to the reinforcing steel with tie wire or put a peg through the hole to anchor it. Once the concrete is poured, the tie stays in as a permanent connection between the drain and the slab. We recommend 2 ties per metre, one on each side of the box drain.
• End Caps - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain
• Joiners - These are easily installed using screws, U shaped and join the bases of 2 lengths together to allow ease of creating longer lengths
• Base Outlets - Available in multiple sizes depending on the profile selected, screwed easily onto the base of the drain to more easily connect to the pipe system beneath the drain
• End Cap Outlets - These are easily screwed onto each end of the box drain to be used to cap off the end of the drain whilst also connecting to your pipe
• 90 Degree Joiners - Available to join 2 lengths together on a 90 degree angle

Please click here to see product drawings of the 150mm wide.

Please click here to see product drawings of the 200mm wide.

Care Guide

Specification Sheet

This product is made from Hot Dip Galvanised Steel.
It is suitable for use in exterior applications. Some examples include driveways, walkways or garden areas.
