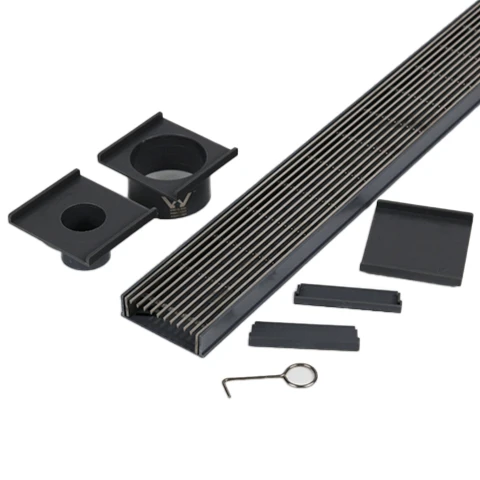

These kits are available with stainless steel finish or black finish grates. The Black Finish is created using the latest technology known as PVD (Physical Vapor Deposition) Coating.
Section sizes
- 70mm wide x 23mm deep (please note, upon installing the outlet on the base the drain will be approx. 26mm deep) - the measurement at the top of the drain is 70mm, however there is a small lip on the base of the drain making the bottom overall width 75mm.
- 95mm wide x 28mm deep (please note, upon installing the outlet on the base the drain will be approx. 31mm deep) - the measurement at the top of the drain is 95mm, however there is a small lip on the base of the drain making the bottom overall width 100mm.
- 95mm wide x 50mm deep (please note, upon installing the outlet on the base the drain will be approx. 53mm deep)
- Please click here to see drawings of the product.
Product Drawings |
75mm wide x 23mm deep |
100mm wide x 28mm deep |
95mm wide x 50mm deep |
Standard Lengths
- 1000mm long
- 1500mm long (only available in Stainless Steel Finish 70mm wide x 23mm deep and 95mm wide x 28mm deep)
- 2000mm long
- 3000mm long
100mm wide x 28mm deep
95mm wide x 50mm deep
