Buda Render Bar - 100mm x 100mm x 6mm
The Buda Render Bar is an Australian-designed steel lintel used to support brickwork over openings where a rendered finish is required.

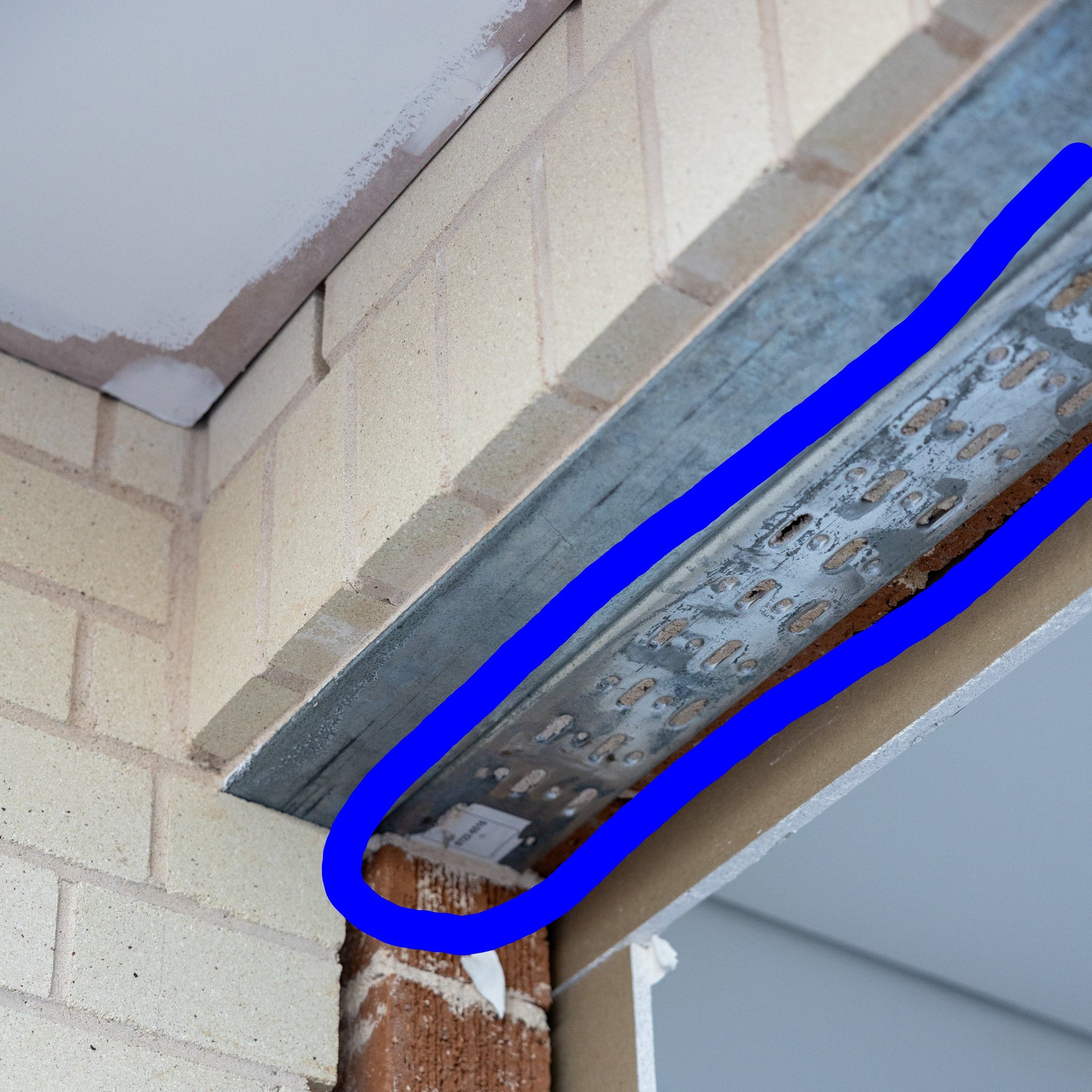

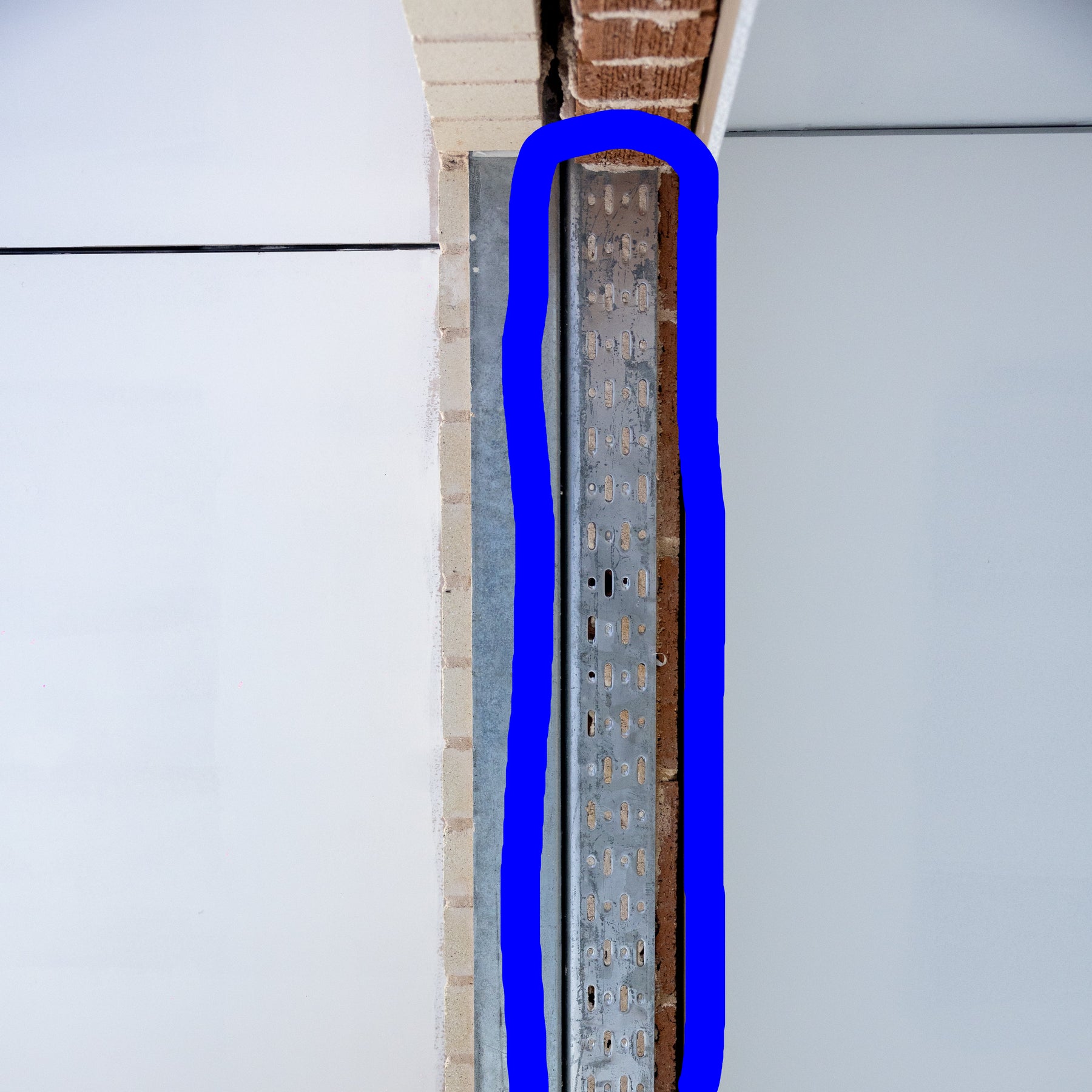

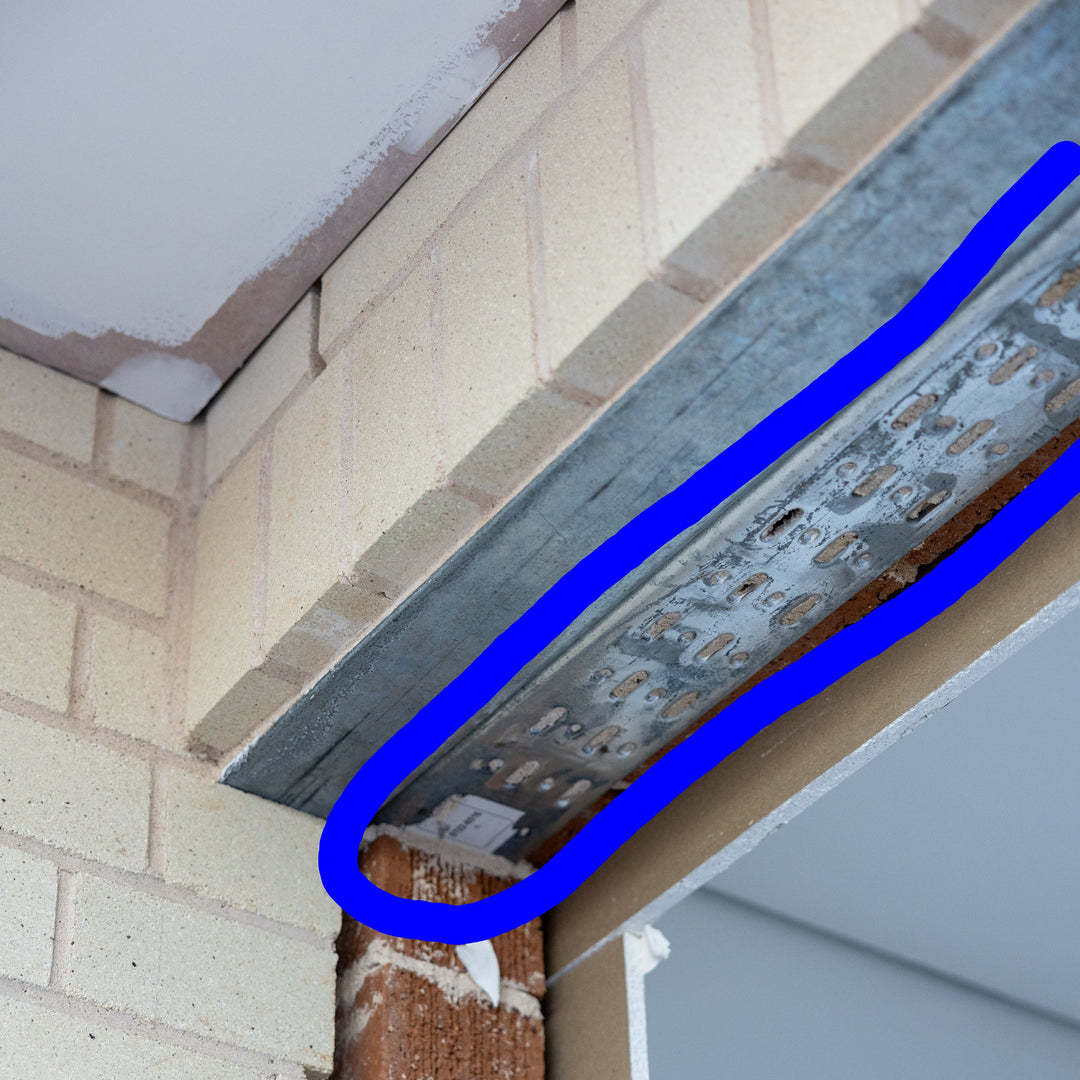

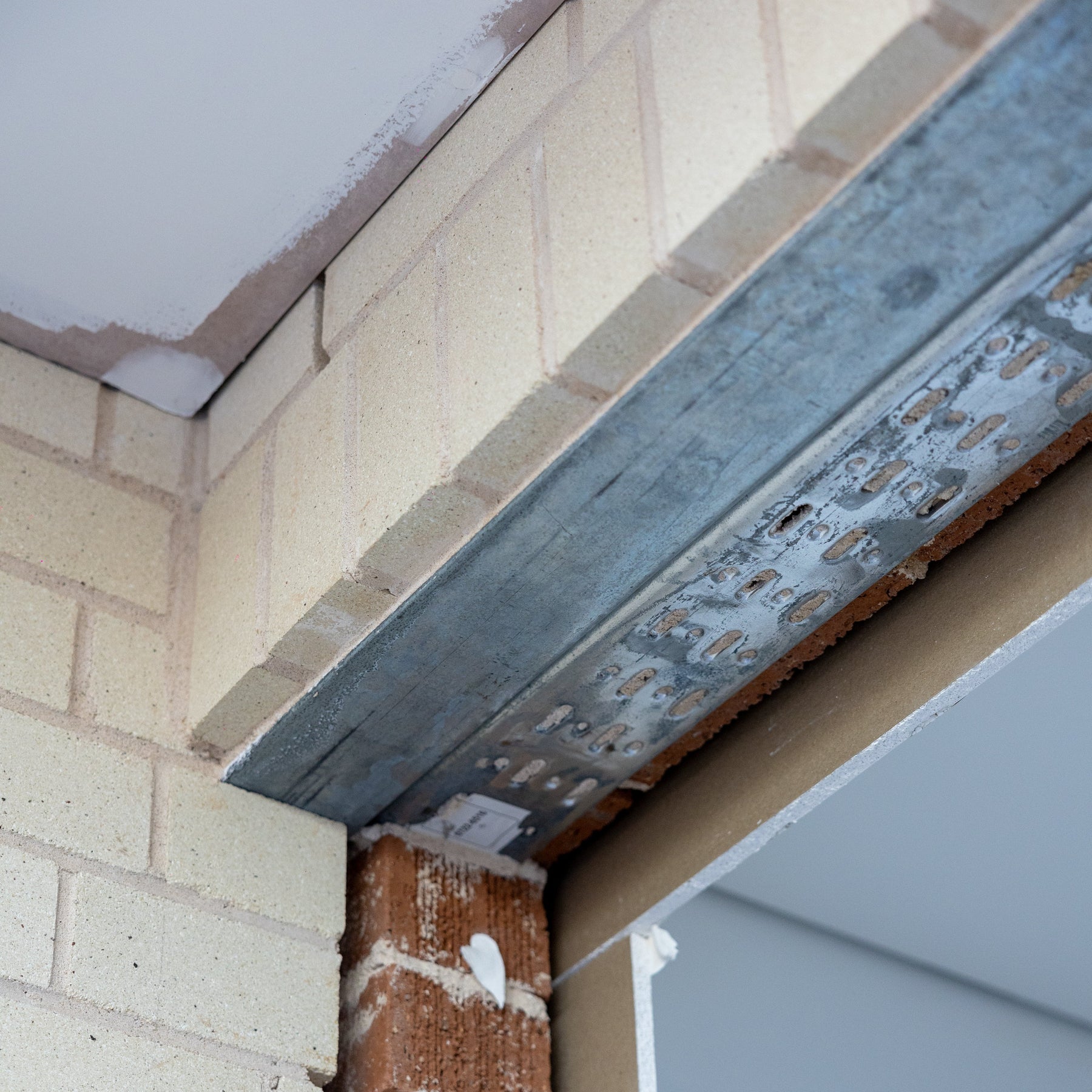

Unlike standard angle lintels, the Buda Render Bar features perforated slots along the underside, allowing render to bond mechanically to the steel. This helps reduce cracking and creates a stronger composite finish between the steel and render system.

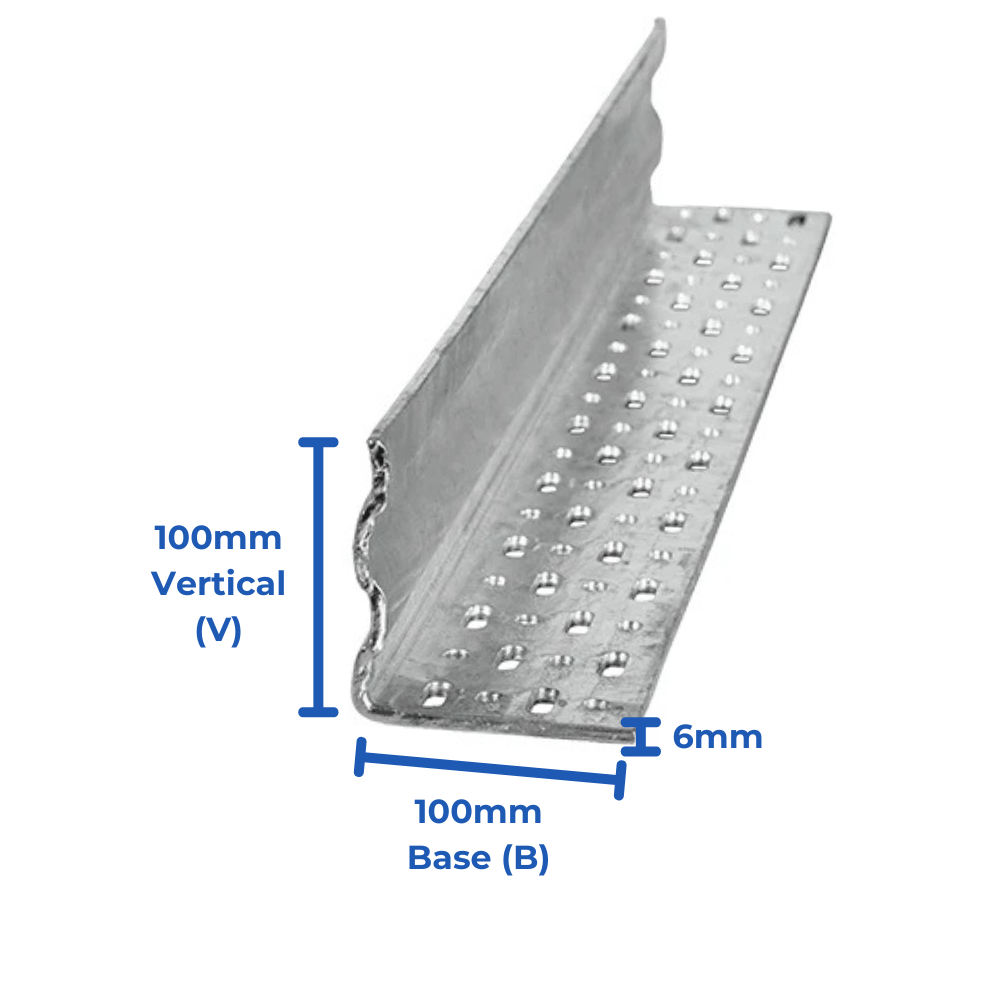

Manufactured from 100 × 100 × 6mm structural steel and R3 hot-dip galvanised, the Buda Render Bar (R-Bar) provides reliable corrosion protection and long service life in residential masonry construction.
- Load tested in accordance with AS/NZS 1170.1:2002
- Australian Design Mark No. 201215561
- Cost-effective alternative to heavier render lintel systems
Four Primary Applications
- Rendered Windows: Supporting brickwork over window openings in rendered brick veneer walls.
- External Doorways: Structural support for brickwork above door openings in rendered façades.
- Renovation Projects: Replacing corroded lintels in older rendered homes.
- Lightweight Masonry Systems: Suitable for applications where masonry will be finished with render.
Why Choose the 100mm Buda Render Bar?
- Improved Render Adhesion: Slotted design allows render to key into the steel for a stronger bond.
- R3 Galvanised Protection: Hot-dip galvanised coating helps prevent corrosion and rust staining.
- Reliable Structural Support: Manufactured from heavy-gauge steel for consistent strength and straightness.
- Fast Delivery: Available for same-day or next-day delivery within the Sydney Metro.
Features are:
Hot Dip Galvanised to AS/NZ 4680:2006R3
Durability Rating in accordance with AS/NZS 2699:2002
Light weight when compared to traditional Concrete/Brick Lintels
Available in a range of sizes.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
Standard angle lintels have a smooth surface that render does not bond to well. A render bar includes slots along the underside, allowing the render to mechanically grip the steel and reducing the risk of cracking or separation.
Yes. A 100 × 100 × 6mm render lintel is commonly used for standard residential openings and is designed to support typical brick loads across normal window spans.
A minimum of 150mm bearing on each side of the opening is required in most instances. This allows the masonry load to transfer safely into the supporting brickwork.
Yes. The product is load tested in accordance with AS/NZS 1170.1:2002 and manufactured to meet the requirements for structural steel used in masonry construction.
