Galvanised Grate Only to suit Plastic Pit
Upgrade your drainage without replacing the pit. If your existing plastic drainage pits are looking tired or the grates have failed, our premium galvanised replacement grates offer a high-strength, architectural facelift. Engineered as a perfect "drop-in" solution for Everhard Polymer Pits, these grates allow you to switch from basic plastic to heavy-duty, long-lasting steel in seconds. Whether you need maximum flow, pedestrian safety, or a completely hidden aesthetic, we provide the technical hardware to turn a standard utility pit into a high-end drainage feature.
Choose Your Style
We offer three distinct styles to match your project's specific drainage and design requirements:

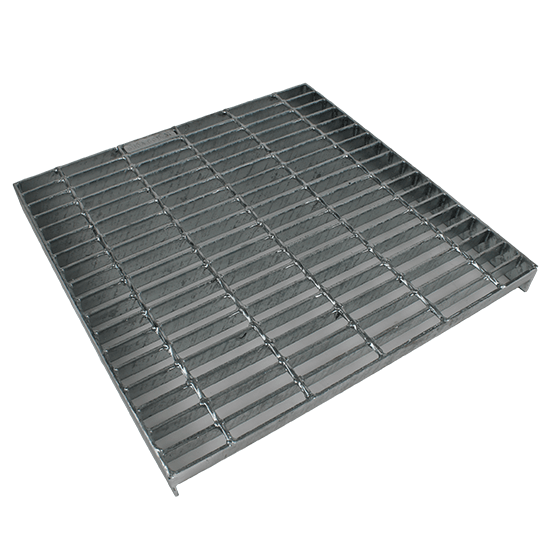

- Traditional Bar Grate: The professional’s choice for maximum water intake. This is our most affordable option and provides the highest flow rate for areas prone to heavy runoff.

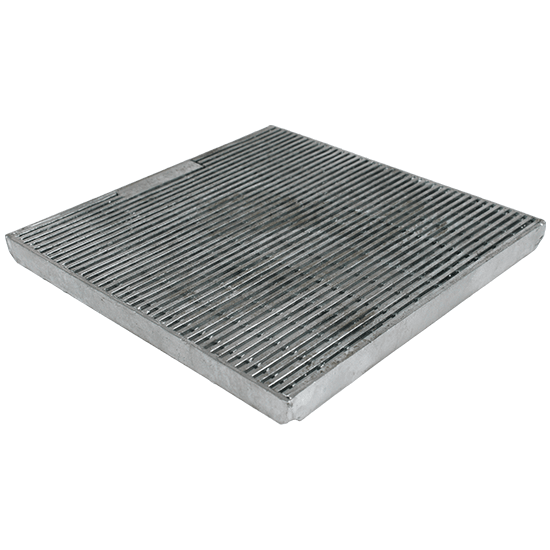

- Budaguard™ Heelguard: The ultimate in safety and maintenance. The tight wedge-wire pattern is Anti-Slip tested to AS 3996:2019, preventing heels from catching and keeping leaves/debris out of your pit—meaning less cleaning for you.

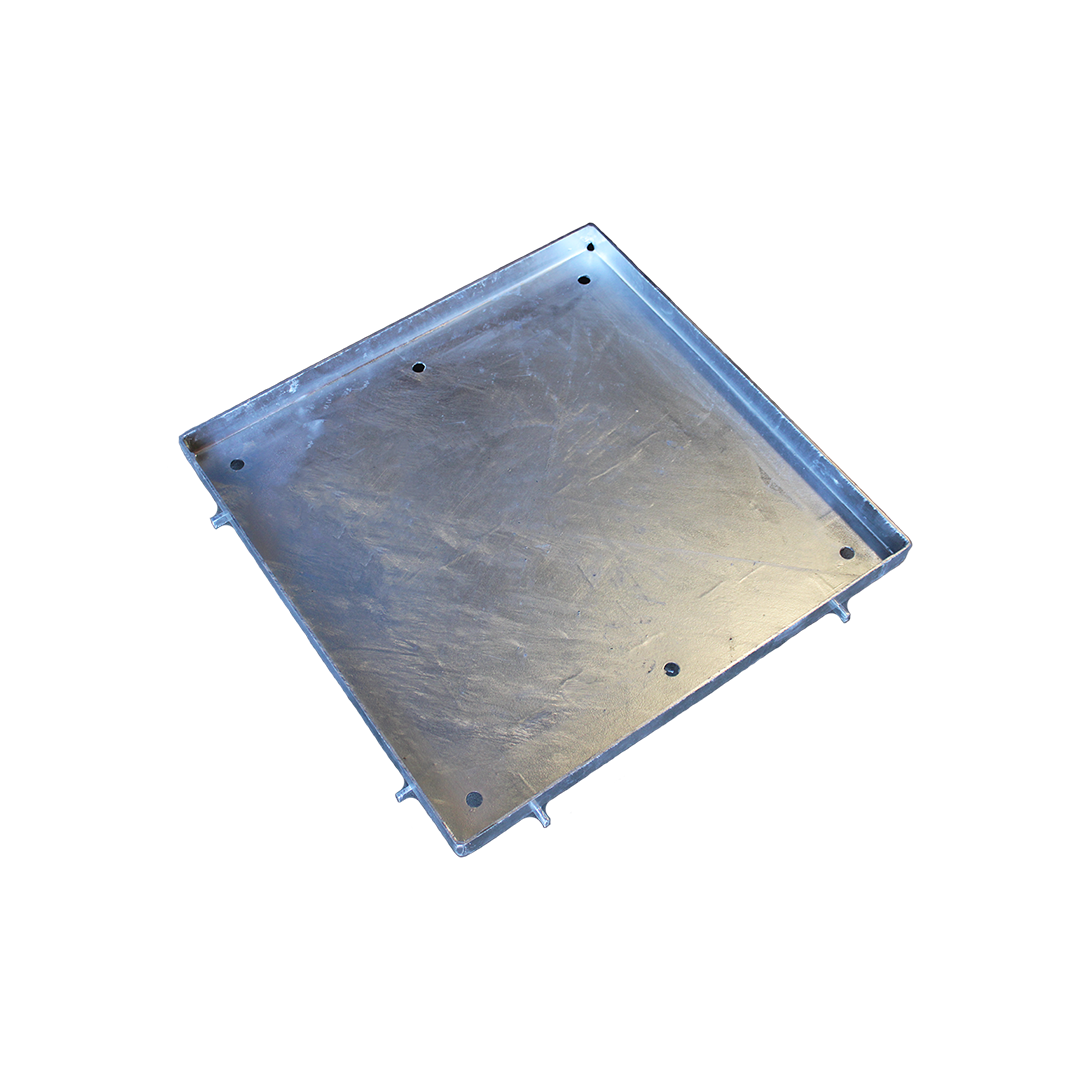

- Tile Insert (Hidden): For a seamless, architectural finish. This variant allows you to tile directly into the grate, leaving only a discreet perimeter gap for water. It’s the perfect way to make a bulky pit "disappear" into your patio or pool deck.
Sizing & Load Ratings
Our grates are available in multiple sizes to suit standard polymer pit profiles.
- 340mm × 340mm (300mm Pit) — Heelguard
- 540mm × 540mm (450mm Pit) — Traditional, Heelguard, Tile Insert
- 685mm × 685mm (600mm Pit) — Traditional, Heelguard, Tile Insert
Please note: Currently, the grate only to suit the 300x300 plastic pit is considered a factory second as the grate sits approximately 2–3mm higher than the pit. Please keep in mind factory seconds purchases are considered final sale and cannot be returned or exchanged for a change of mind. New stock has been ordered to the correct height. Online inventory will be updated accordingly when stock is available.
Please check our Care Guide for Galvanised Products
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
Measure the internal "lip" of your pit. Our grates are made to fit standard Everhard 300mm, 450mm and 600mm nominal pits.
Yes, the R3 rating is designed for direct moisture contact. It provides a durable, non-staining barrier that prevents rust from discolouring your surrounding pavers or concrete.
They are typically Class A (Pedestrian) or Class B (Light to Medium Vehicles). Check your specific site requirements to ensure the grate matches the expected traffic.
Light Duty (Class A) is rated for pedestrian traffic - perfect for garden paths, patios, and pool surrounds. Medium Duty (Class B) handles light vehicle loads, making it the right choice if cars or utes may occasionally pass over the pit.
Upgrade your drainage without replacing the pit. If your existing plastic drainage pits are looking tired or the grates have failed, our premium galvanised replacement grates offer a high-strength, architectural facelift. Engineered as a perfect "drop-in" solution for Everhard Polymer Pits, these grates allow you to switch from basic plastic to heavy-duty, long-lasting steel in seconds. Whether you need maximum flow, pedestrian safety, or a completely hidden aesthetic, we provide the technical hardware to turn a standard utility pit into a high-end drainage feature.
Choose Your Style
We offer three distinct styles to match your project's specific drainage and design requirements:
- Traditional Bar Grate: The professional’s choice for maximum water intake. This is our most affordable option and provides the highest flow rate for areas prone to heavy runoff.
- Budaguard™ Heelguard: The ultimate in safety and maintenance. The tight wedge-wire pattern is Anti-Slip tested to AS 3996:2019, preventing heels from catching and keeping leaves/debris out of your pit—meaning less cleaning for you.
- Tile Insert (Hidden): For a seamless, architectural finish. This variant allows you to tile directly into the grate, leaving only a discreet perimeter gap for water. It’s the perfect way to make a bulky pit "disappear" into your patio or pool deck.
Sizing & Load Ratings
Our grates are available in multiple sizes to suit standard polymer pit profiles.
- 340mm × 340mm (300mm Pit) — Heelguard
- 540mm × 540mm (450mm Pit) — Traditional, Heelguard, Tile Insert
- 685mm × 685mm (600mm Pit) — Traditional, Heelguard, Tile Insert
Please note: Currently, the grate only to suit the 300x300 plastic pit is considered a factory second as the grate sits approximately 2–3mm higher than the pit. Please keep in mind factory seconds purchases are considered final sale and cannot be returned or exchanged for a change of mind. New stock has been ordered to the correct height. Online inventory will be updated accordingly when stock is available.
Please check our Care Guide for Galvanised Products
Measure the internal "lip" of your pit. Our grates are made to fit standard Everhard 300mm, 450mm and 600mm nominal pits.
Yes, the R3 rating is designed for direct moisture contact. It provides a durable, non-staining barrier that prevents rust from discolouring your surrounding pavers or concrete.
They are typically Class A (Pedestrian) or Class B (Light to Medium Vehicles). Check your specific site requirements to ensure the grate matches the expected traffic.
Light Duty (Class A) is rated for pedestrian traffic - perfect for garden paths, patios, and pool surrounds. Medium Duty (Class B) handles light vehicle loads, making it the right choice if cars or utes may occasionally pass over the pit.
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
