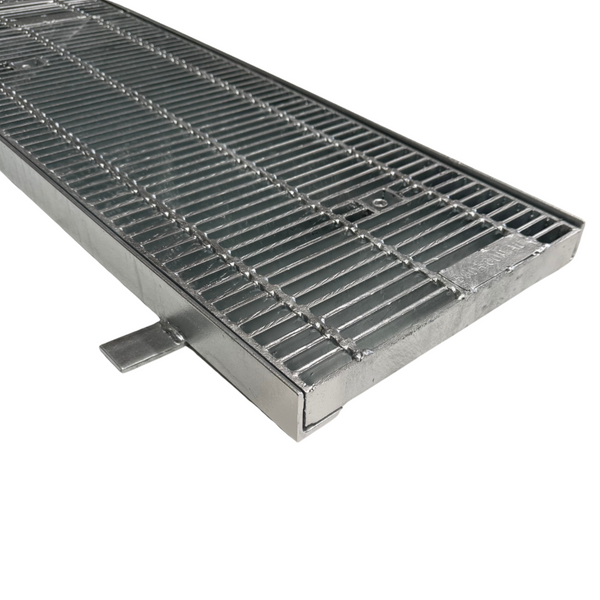

MEGAGUARD™- Heelguard Galvanised Class D HEAVY DUTY Grate & Frame
When the load is heavy and the traffic is relentless, MEGAGUARD™ delivers. The Class D rating under AS 3996:2019 makes this the highest-rated galvanised heelguard grate in the Vincent Buda and Company range, built for heavy commercial, industrial, and civil drainage where nothing less will do. The heelguard pattern keeps bar spacing tight enough to be pedestrian-safe even under the heaviest loads, while the bolt-down frame locks the grate securely to eliminate movement under vehicle impact. Since 1957, Vincent Buda and Company has been trusted by Australian builders to supply drainage that performs under pressure.
Available in 200mm wide and 300mm wide profiles, both supplied in 1500mm lengths, MEGAGUARD™ is a drop-in system that lets you form the concrete channel surround to whatever depth your project requires. Both profiles cut on site with an angle grinder to suit any trench run. Vincent Buda and Company stocks both profiles for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Product Specifications
- Material: Hot-dip galvanised steel
- Pattern: Heelguard (pedestrian-safe bar spacing)
- Load Class: Class D to AS 3996:2019
- Profiles: 200mm wide x 1500mm long (grate 25mm thick, frame 30mm thick); 300mm wide x 1500mm long
- Installation: Drop-in with concrete formed channel surround (adjustable depth)
- Cutting: On-site cutting with angle grinder
- Product Drawings (200mm): Click to view
- Product Drawings (300mm): Click to view
Key Features at a Glance
- Class D Rated: Highest load class under AS 3996:2019, built for heavy commercial and industrial sites.
- Heelguard Pattern: Pedestrian-safe bar spacing in a heavy-duty frame - no compromise on safety at any load class.
- Adjustable Channel Depth: Form the concrete surround to any required depth before pouring - shallow or deep.
- Site Flexible: 1500mm lengths cut on site with an angle grinder to suit any trench length.
Primary Applications
- Industrial Hardstands: Class D drainage for forklift, truck, and heavy machinery areas.
- Commercial Loading Docks: High-traffic vehicle access points where standard load ratings are insufficient.
- Civil and Infrastructure: Road-adjacent drainage and civil works requiring Class D compliance.

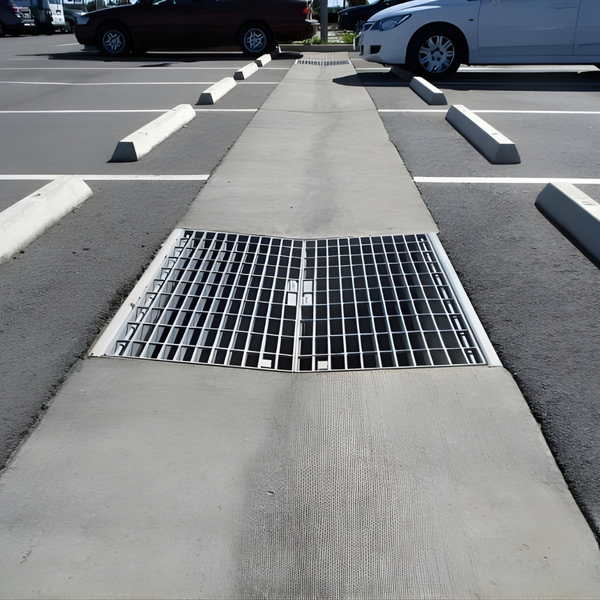

- Commercial Car Parks: Heavy multi-level car park drainage where maximum load rating is specified by engineers.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
Class D is one of the highest load class under AS 3996:2019, rated for heavy commercial vehicles, forklifts, and industrial traffic. If your drainage is in the path of trucks or heavy machinery, specify Class D as the minimum requirement.
The heelguard pattern spaces bars closely enough to stop high heels and small wheels from penetrating the grate, even at Class D load ratings. MEGAGUARD™ is the only Class D galvanised grate in the Vincent Buda and Company range that is both pedestrian-safe and heavy-industrial rated.
Form the concrete surround around the frame to whatever depth your project requires before pouring. The drop-in system accommodates shallow and deep channels without modifying the grate or frame.
Yes, the 1500mm lengths cut cleanly with an angle grinder to suit your trench length. Always wear appropriate PPE and cut the frame at a clean right angle for a secure end fit.
Yes, Vincent Buda and Company stocks both MEGAGUARD™ profiles in the Lakemba warehouse. Order for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
