DIY OUTLET AQUALUNA LINEAR DRAINS
Made from 304 stainless steel. Available in different styles, our drains are sold in standard lengths or can be customised to size as per your requirements. Sold as a fully welded unit, our drains are the easy drop in solution for your bathroom, shower or kitchen application.
Our drain bases have folds in the base to allow for water flow directly to the outlet. This excludes our DIY outlet and custom position outlet shower drains as they don't have folds towards the outlet, but they have a pressed V in the base but not towards any direction.
Please note shower drains longer than 1500mm may have the tops in multiple lengths.
Lines, Square and Brick Pattern
- Lines, Square and Brick Pattern grate top is made from 1.5mm stainless steel
Lines pattern is available in 100mm wide x 20mm deep or 85mm wide x 20mm deep
Square pattern is available in 85mm wide x 20mm deep or 70mm wide x 22mm deep
Brick pattern is available in 85mm wide x 20mm deep
PLEASE NOTE BRICK AND SQUARE PATTERN ARE DISCONTINUED AND CANNOT BE RETURNED FOR CHANGE OF MIND.

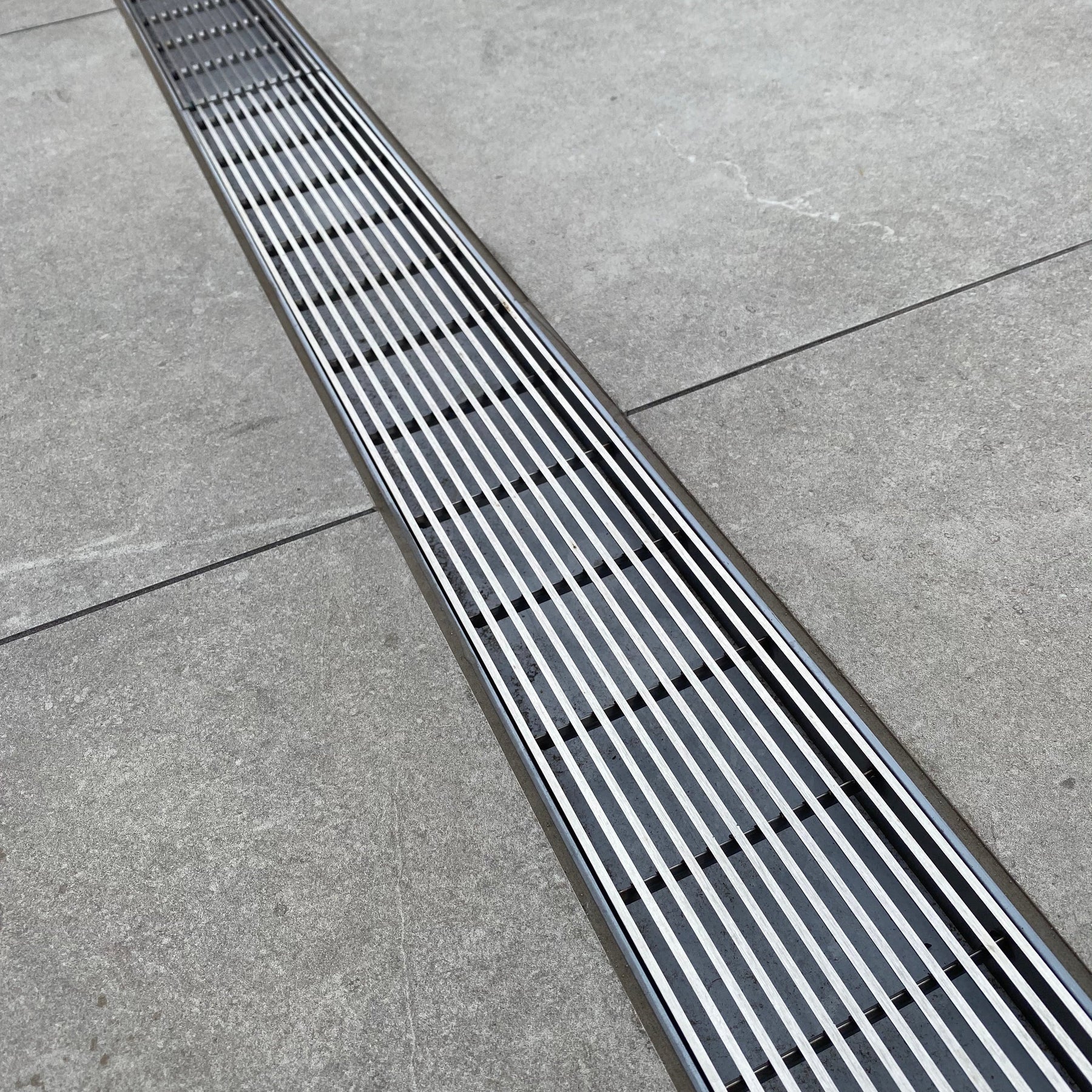

Heelguard Pattern
-
Our Heelguard pattern grates are made from 3mm Wedge Wire welded with cross braces and full edge bars around the perimetre.
Our heelguard pattern is available in 70mm wide x 22mm deep, 85mm wide x 20mm deep or 100mm wide x 20mm deep
Tile Insert
Our tile insert pattern is available in 100mm wide x 30mm deep and 70mm wide x 25mm deep.
Outlet Positioning
- All options have the option of different outlet sizes supplied loose to be cut on site as required.
- 70mm wide drains have the option of 50mm outlet
- 85mm wide and 100mm wide shower drains have the option of 50 or 76mm outlet
The advantages of our stainless steel heelguard include:
- 3mm Wedge Wire with 4mm Aperture
- 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges
- Cross bars every 25mm, not touching base of drain the base of the drains allowing plenty of water flow
- Tapered cross bars reduces the buildup of dirt & grime
- Heel & Pet Friendly
