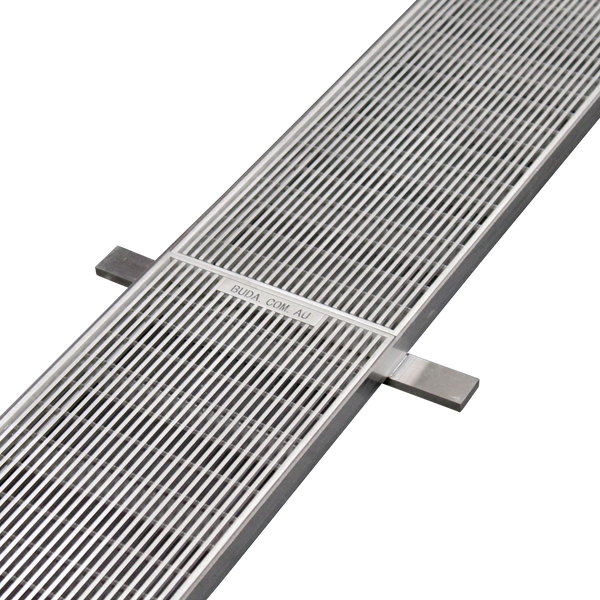

Stainless Steel Heelguard Trench Grate and Frame
The Stainless Steel Heelguard Trench Grate and Frame brings Class B channel drainage to driveways, pool surrounds, and pedestrian paths without the need for a pre-formed box drain. Available in 200mm wide profiles in 2-metre and 3-metre lengths, the frame is cast directly into the concrete and acts as permanent formwork. You control the channel depth on-site. The 316 marine grade stainless steel grate drops in on top, secured by one lockdown mechanism per linear metre.
Since 1957, Vincent Buda and Company has supplied quality drainage to builders, civil contractors, and tradespeople across Australia. This grate and frame is load-rated to Class B under AS 3996:2019, covering residential driveways, carparks, and light commercial access routes. Vincent Buda and Company stocks both lengths ready for despatch, with Same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Product Specifications
- Material: 316 marine grade stainless steel, corrosion-resistant
- Profile Width: 200mm
- Lengths: 2000mm and 3000mm (standard full lengths)
- Load Class: Class B (tested to AS 3996:2019)
- Lockdown: One lockdown mechanism per metre length
- Finish: Brushed 316 stainless steel
- Product Drawings: 200mm Heelguard Trench Grate Drawings
Key Features at a Glance
- 316 Marine Grade Construction: Corrosion-resistant and genuinely stainless steel - suited to coastal properties, pools, and outdoor entertaining areas.
- Class B Load Rating: Carries everyday passenger vehicles and light commercial traffic, tested to AS 3996:2019.
- Flexible Channel Depth: No pre-formed box required. Cast the frame and form your channel to any required depth on-site.
- Lockdown Security: One lockdown mechanism per metre keeps the grate firmly in place under vehicle and pedestrian loads.
Primary Applications
- Residential Driveways: The 200mm heelguard profile channels driveway runoff at Class B loading, protecting the drain from everyday vehicle traffic.
- Pool Surrounds and Outdoor Entertaining: A flush, refined grate line complements tiled pool decks and alfresco surfaces.
- Coastal Properties: Marine-grade 316 stainless steel holds up against salt air, pool chemicals, and harsh outdoor conditions.
- Commercial Entries and Pedestrian Walkways: The heelguard pattern provides a safety-conscious, heel-safe surface at building thresholds.
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
The trench grate uses the frame as permanent formwork, so you set the channel depth on-site. The box drain comes as a pre-formed unit with a fixed depth. Browse our full stainless steel grates range
Class B, tested to AS 3996:2019. That covers standard passenger cars and light commercial vehicles, making it suitable for residential driveways and carparks. For heavier loads, see our Class D civil options.
Form up your drainage channel to the required depth, then cast the frame into the concrete.
No, not with basic maintenance. 316 marine-grade stainless steel contains molybdenum, which resists salt air and pool chemicals far better than 304 grade. Rinse the grate periodically in coastal environments to maintain performance.
Vincent Buda and Company stocks the 200mm heelguard trench grate and frame in both 2m and 3m lengths. Same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
