Shower Grate & Drain - Square Pattern

Shower Grate & Drain - Square Pattern

Shower Grate & Drain - Square Pattern

  • Made from 304 Stainless Steel
  • In stock, ready to ship
  • Inventory on the way
  • Australia Wide Shipping
Length
Width
Outlet
Sale price $145.00
/
Shipping calculated at checkout.

SQUARE PATTERN AQUALUNA SHOWER DRAINS

Made from 304 stainless steel. Our shower drains are sold in standard lengths or can be customised to size as per your requirements. Sold as a fully welded unit, our drains are the easy drop in solution for your bathroom.

Our shower drain bases have folds in the base to allow for water flow directly to the outlet. This excludes our DIY outlet and custom position outlet shower drains as they don't have folds towards the outlet, but they have a pressed V in the base but not towards any direction.

Please also note for lengths longer than 1500, the tops may be supplied in 2 pieces.

PLEASE NOTE THESE ITEMS ARE DISCONTINUED AND CANNOT BE RETURNED FOR CHANGE OF MIND.

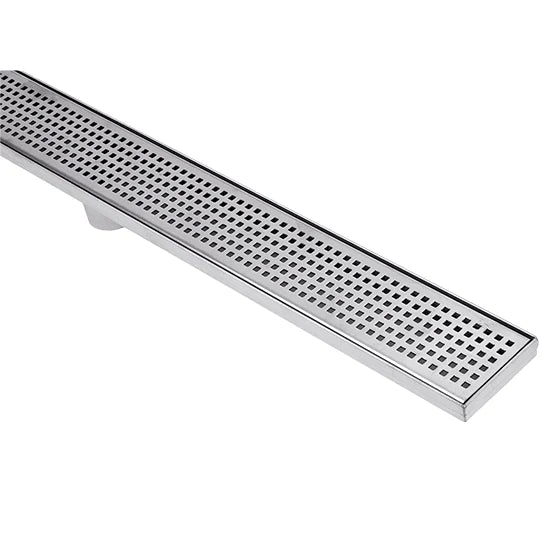

Square Pattern Shower Drains

  • Square Pattern grate top is made from 1.5mm stainless steel

Square pattern is available in 85mm wide x 20mm deep or 70mm wide x 22mm deep

Outlet Positioning

  • On our 85mm wide square pattern drains the outlet is 50.8 OD. Outlet is in either the centre, end of the drain (50mm from end to centre).

  • On our 70mm wide square pattern drains the outlet is 50mm in the centre of the drain or DIY outlet option with a 50mm stainless steel outlet supplied loose to be cut and installed on site as required.

Custom Drains

When a standard shower grate won't work, we can modify an existing shower grate to suit your needs.

We can customise the outlet size and position based on your requirements. Please visit our custom shower grate product.

Our square pattern shower drains are made from 304 stainless steel. They are suitable for internal use such as showers, bathrooms and laundries.

The advantages of our stainless steel heelguard include:

- 3mm Wedge Wire with 4mm Aperture

- 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges

- Cross bars every 25mm, not touching base of drain the base of the drains allowing plenty of water flow

- Tapered cross bars reduces the buildup of dirt & grime

- Heel & Pet Friendly

Courier Deliveries:
We aim to dispatch orders the same day if received before 12pm AEST.
Sydney Metro - 1-2 business days
Melbourne - 2-3 business days
Brisbane - 2-5 business days

Generally most courier deliveries in non regional areas are completed within 3-5 days. Rural deliveries can take up to 2 weeks.

Please keep in mind if you purchase a large bulky item with a small item, the small product will be packaged together with the larger bulkier item and larger bulkier item delivery conditions apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Installation Instructions

Shower Drain Installation

Shower Drain Installation - Timber Flooring

See the PDF version here


Shower Drain Installation - Concrete Flooring

See the PDF version here.
