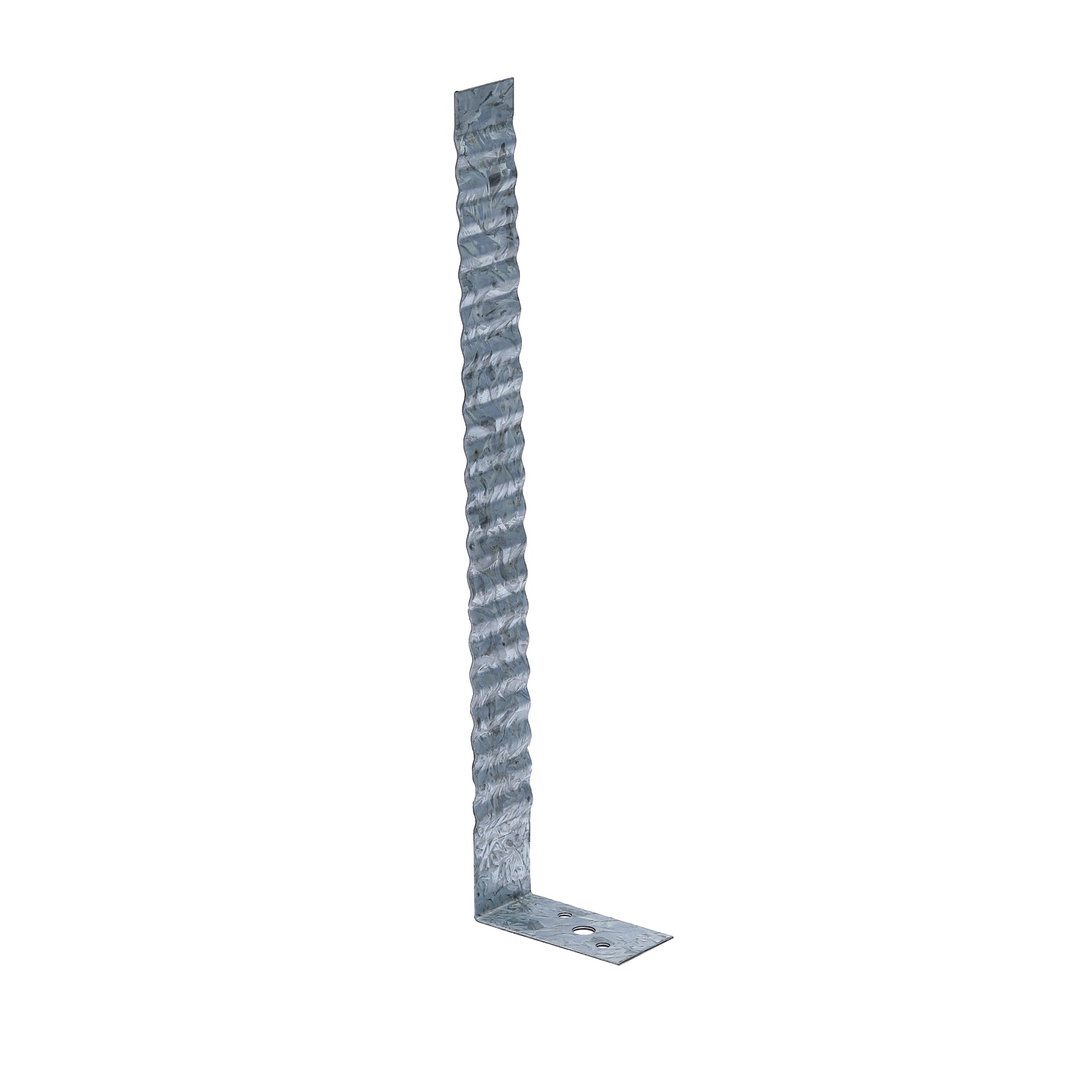

Frame Ties (L-Shaped)
Frame Ties (L-Shaped) secure timber or steel stud framing to the outer masonry leaf in brick veneer construction. The L-shaped profile is face-fixed to the frame stud and embedded in the mortar bed as brickwork rises, creating a reliable mechanical connection between the structural frame and the masonry veneer. Typically used for 230mm cavity walls, these ties comply with AS/NZS 2699-2000 and are supplied in boxes of 150 pieces.
Each Frame Tie is galvanised for long-term corrosion resistance inside the wall cavity. Since 1957, Vincent Buda and Company has stocked the complete range of wall ties for Sydney builders. Vincent Buda and Company stocks Frame Ties for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Product Specifications
- Material: Hot-dip galvanised steel, corrosion-resistant for wall cavity conditions
- Standard: AS/NZS 2699-2000 (wall ties for masonry construction)
- Shape: L-shaped (right angle)
- Cavity: Typically used for 230mm walls
- Application: Frame-to-masonry connection in brick veneer construction, face-fix to stud
- Packing: 150 pieces per box
- Product Drawings: See Product Drawings
Key Features at a Glance
- Standard L-Shape Profile: Designed for face-fix to timber or steel studs, then embedded in the mortar course as brickwork is laid.
- AS/NZS 2699-2000 Compliant: Meets the Australian Standard for wall ties, suitable for residential and light commercial brick veneer.
- Galvanised for Cavity Durability: Corrosion-resistant galvanised finish stands up to the moist conditions inside a wall cavity over the life of the structure.
- 150 Pieces Per Box: Supplied in trade quantities ready for standard residential brick veneer frames.
Primary Applications
- Standard Brick Veneer Walls: Face-fix to timber or steel stud framing, embedded in mortar as the outer brick leaf is built up.
- Residential Construction: The standard frame tie for single-storey and double-storey brick veneer houses throughout Australia.
- Renovation and Extension Work: Used wherever a new brick veneer leaf is connected to an existing or new timber frame.
- Light Commercial Buildings: Suitable for light commercial brick veneer projects requiring AS/NZS 2699-2000 compliant frame-to-masonry connections.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.

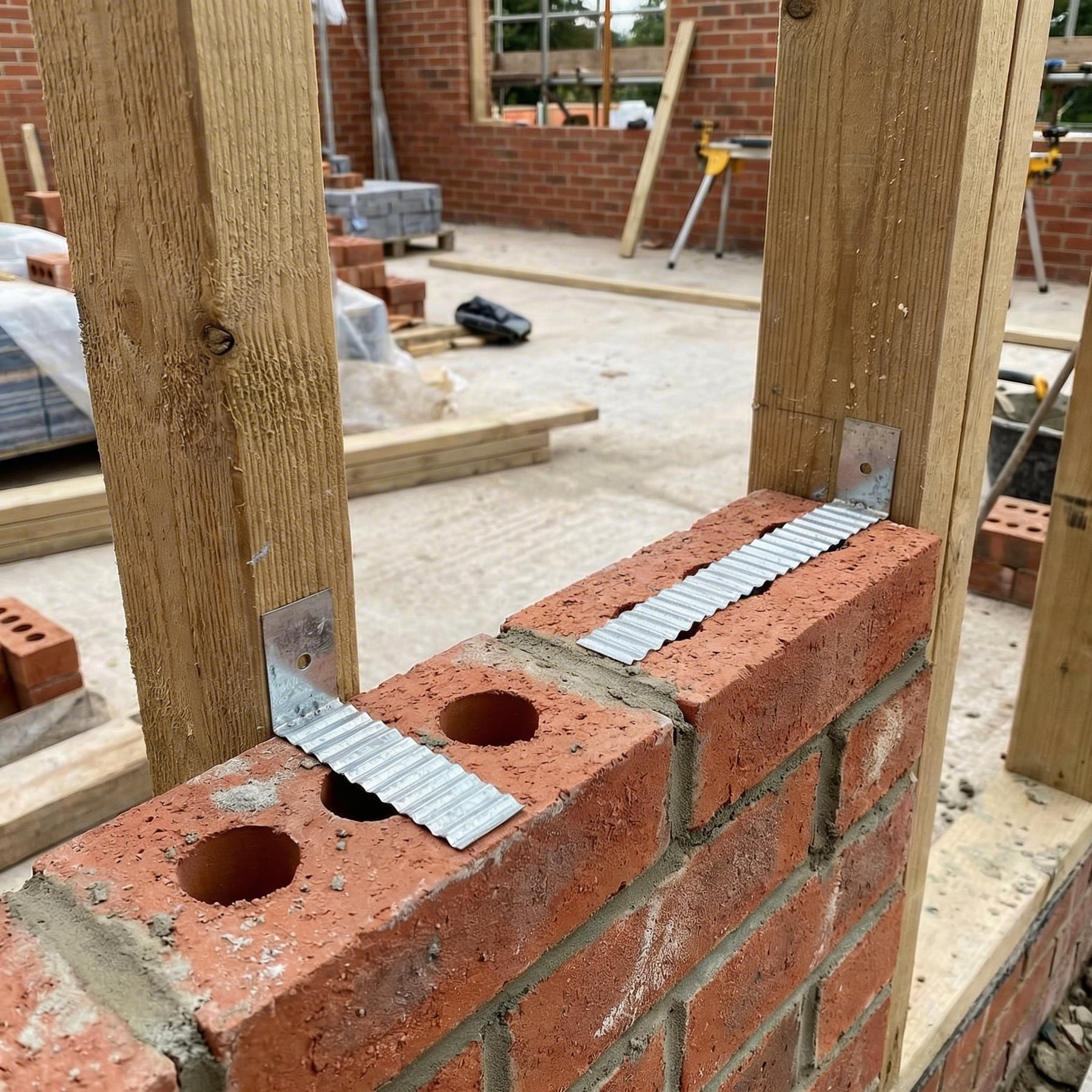

The L-shape allows one leg to be screw-fixed to the frame stud before brickwork reaches that height. The other leg sits horizontally in the mortar bed as the brick course is laid. This makes installation straightforward and does not require outside access. See all wall connection products in the Building Supplies collection.
Spacing is determined by AS 3700 and your engineering plans. As a guide, ties are typically spaced at 600mm horizontally and 600mm vertically, but your structural engineer's specification governs. Each box contains 150 pieces.
Yes, they are galvanised for long-term corrosion resistance. The galvanised coating protects the tie from the moist conditions that exist in any wall cavity, maintaining the structural connection between frame and masonry for the life of the building.
Frame Ties are for standard cavity widths (typically 230mm), while Stubby Ties are for narrow cavities. If the frame-to-brick clearance is tighter than standard, the compact 100mm x 35mm Stubby Tie is the correct product. Both comply with AS/NZS 2699-2000.
Frame Ties are in stock now at Vincent Buda and Company. Same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
