Linear Shower Grate & Drain - 600mm

Linear Shower Grate & Drain - 600mm

  • Made from 304 Stainless Steel
  • In stock, ready to ship
  • Inventory on the way
  • Australia Wide Shipping
Regular price $85.00
/
Shipping calculated at checkout.

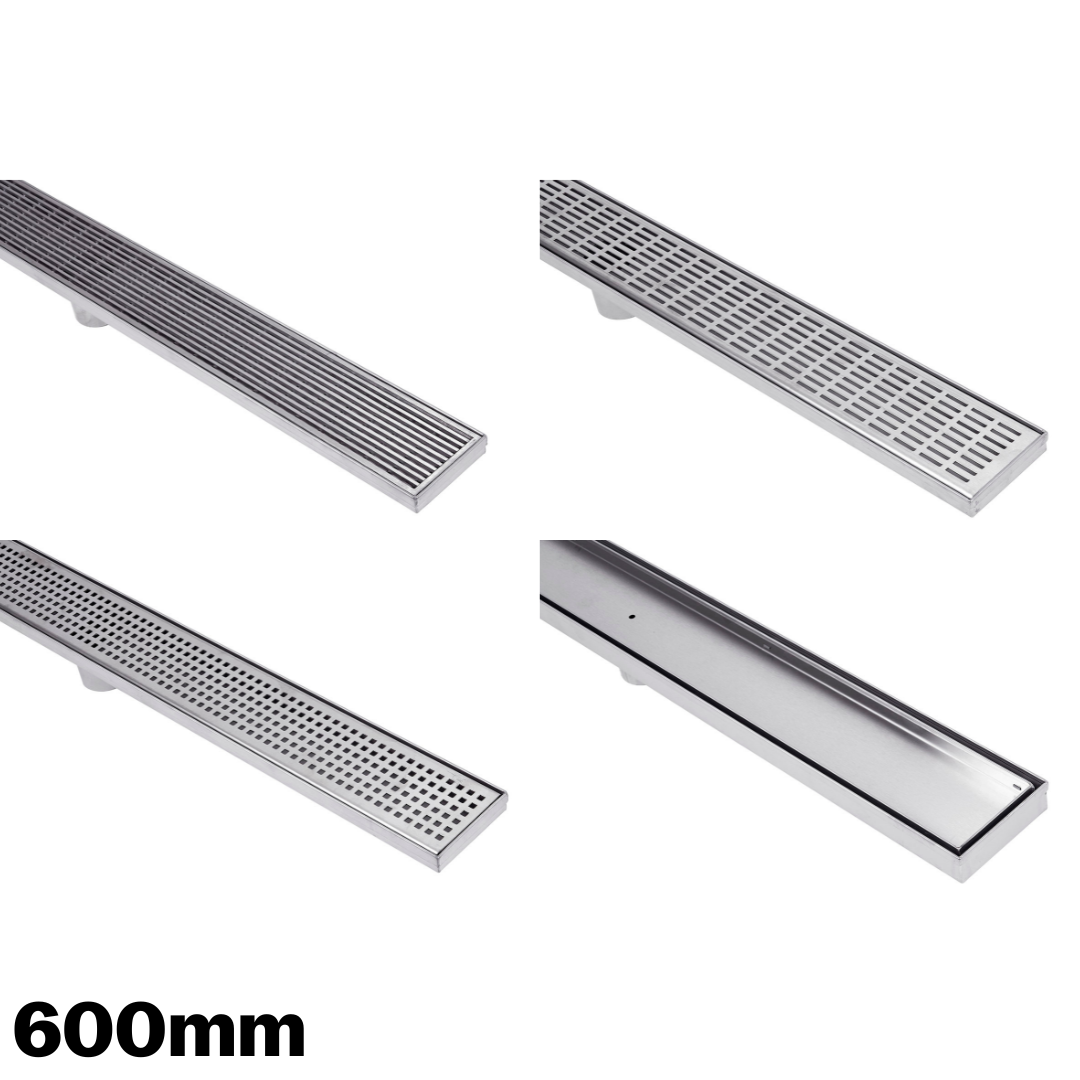

600mm LONG AQUALUNA SHOWER DRAINS

Made from 304 stainless steel. Available in different styles, our shower drains are available in 600mm long in various widths and depths. Sold as a fully welded unit, our drains are the easy drop in solution for your bathroom.

Our shower drain bases have folds in the base to allow for water flow directly to the outlet. This excludes our DIY outlet and custom position outlet shower drains as they don't have folds towards the outlet, but they have a pressed V in the base but not towards any direction.

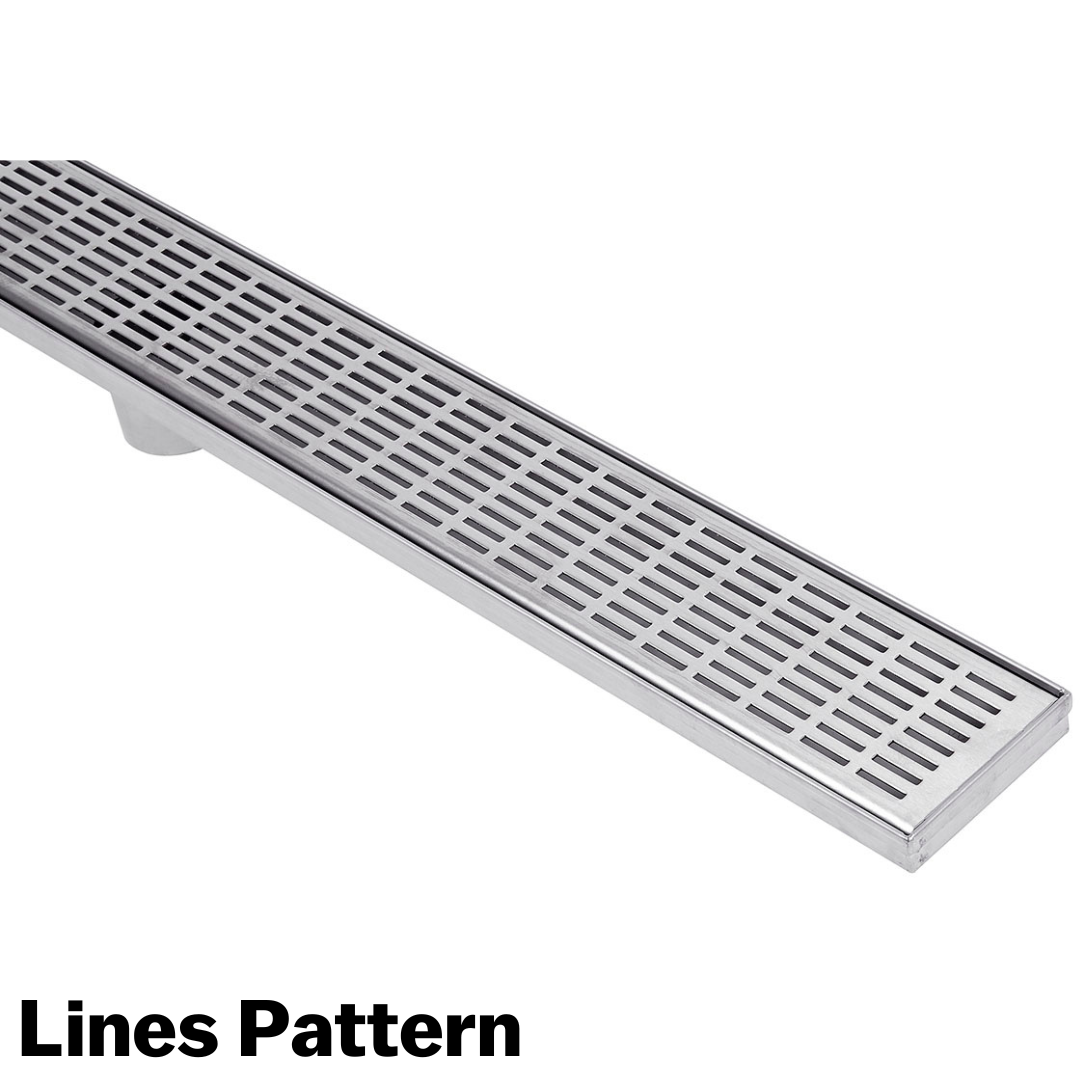

Lines and Square Pattern

  • Lines and Square Pattern grate top is made from 1.5mm stainless steel

Lines pattern is available in 100mm wide x 20mm deep or 85mm wide x 20mm deep

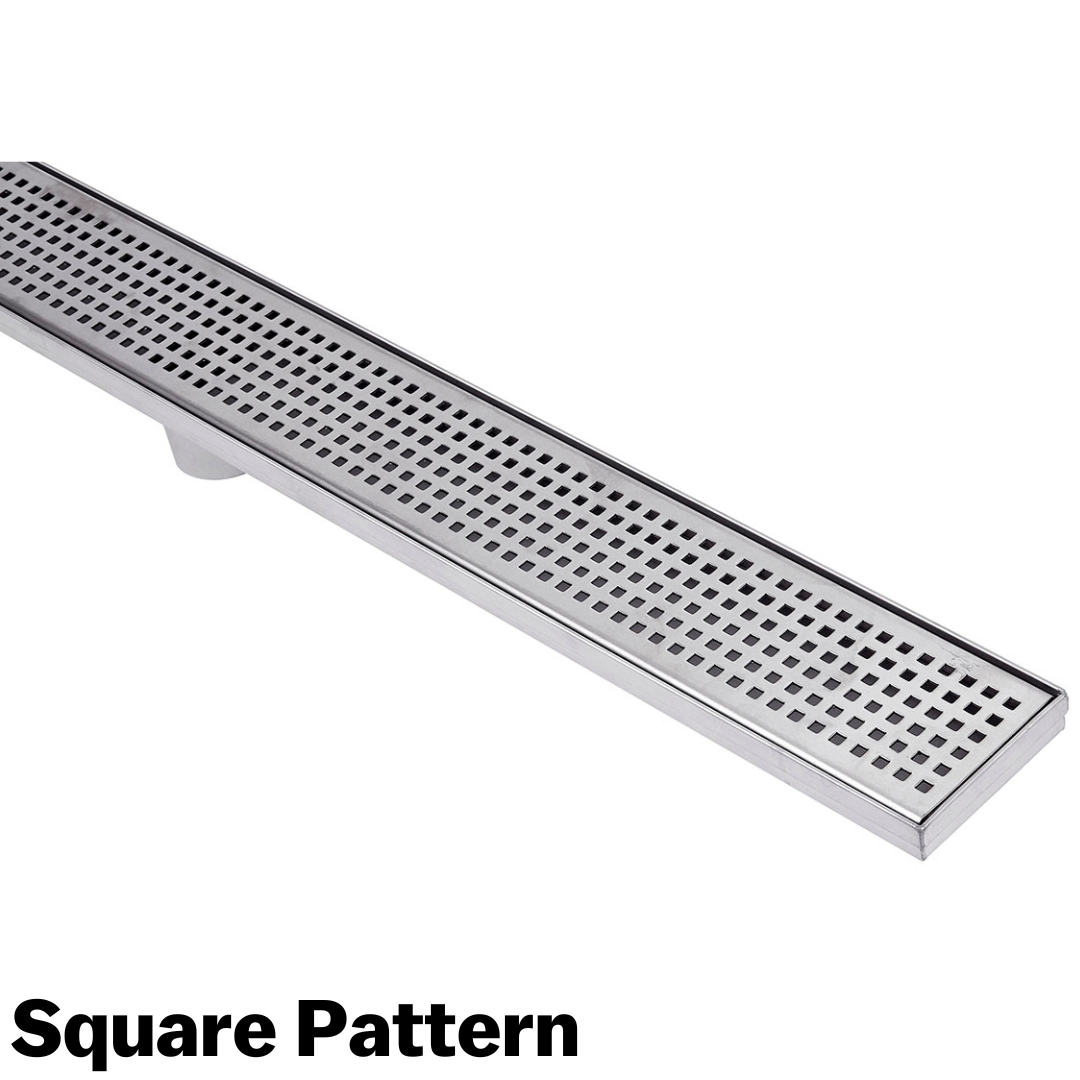

Square pattern is available in 85mm wide x 20mm deep or 70mm wide x 22mm deep

PLEASE NOTE SQUARE PATTERN IS DISCONTINUED AND CANNOT BE RETURNED FOR CHANGE OF MIND.

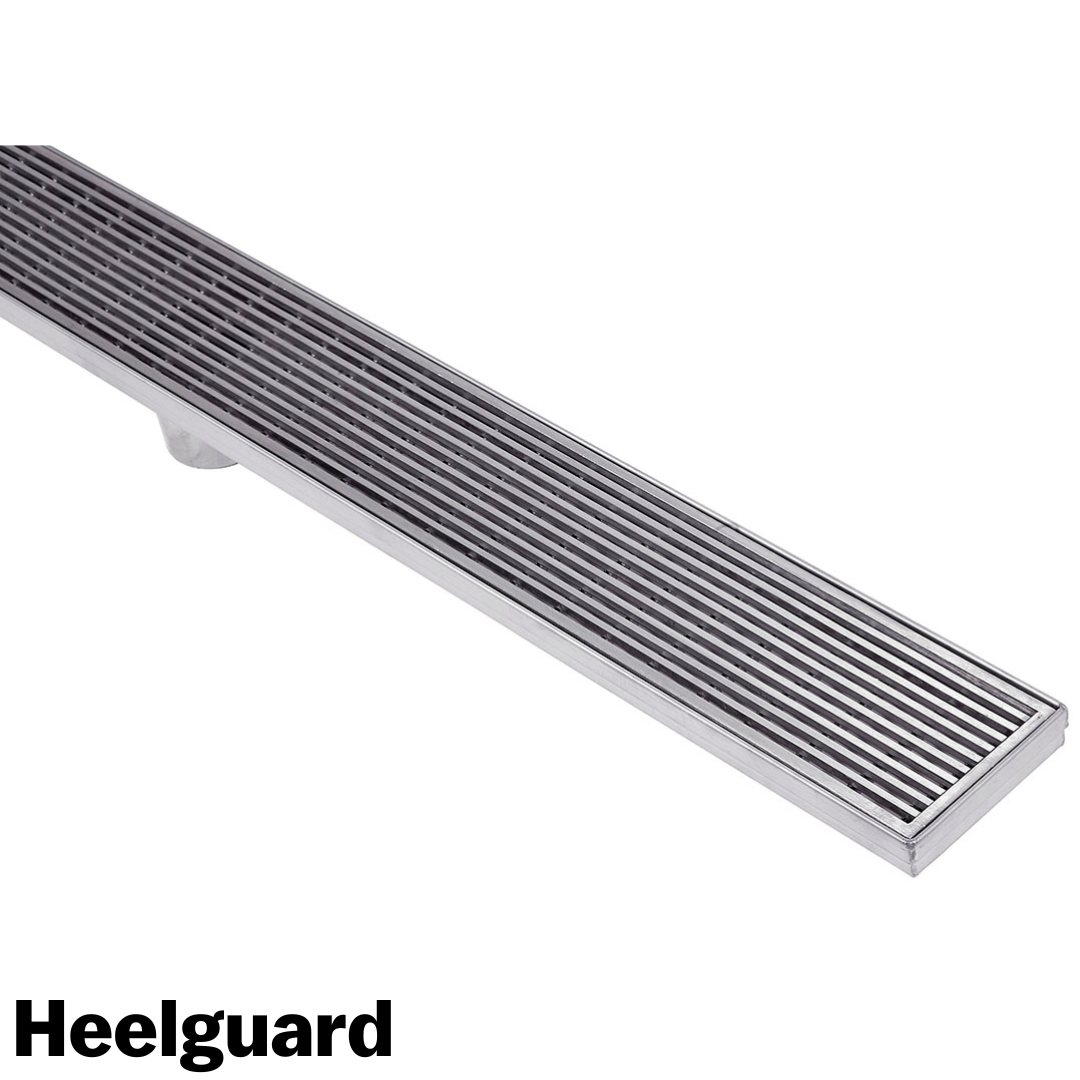

Heelguard Pattern

  • Our Heelguard pattern grates are made from 3mm Wedge Wire welded with cross braces and full edge bars around the perimetre.

Our heelguard pattern is available in 70mm wide x 22mm deep, 85mm wide x 20mm deep or 100mm wide x 20mm deep

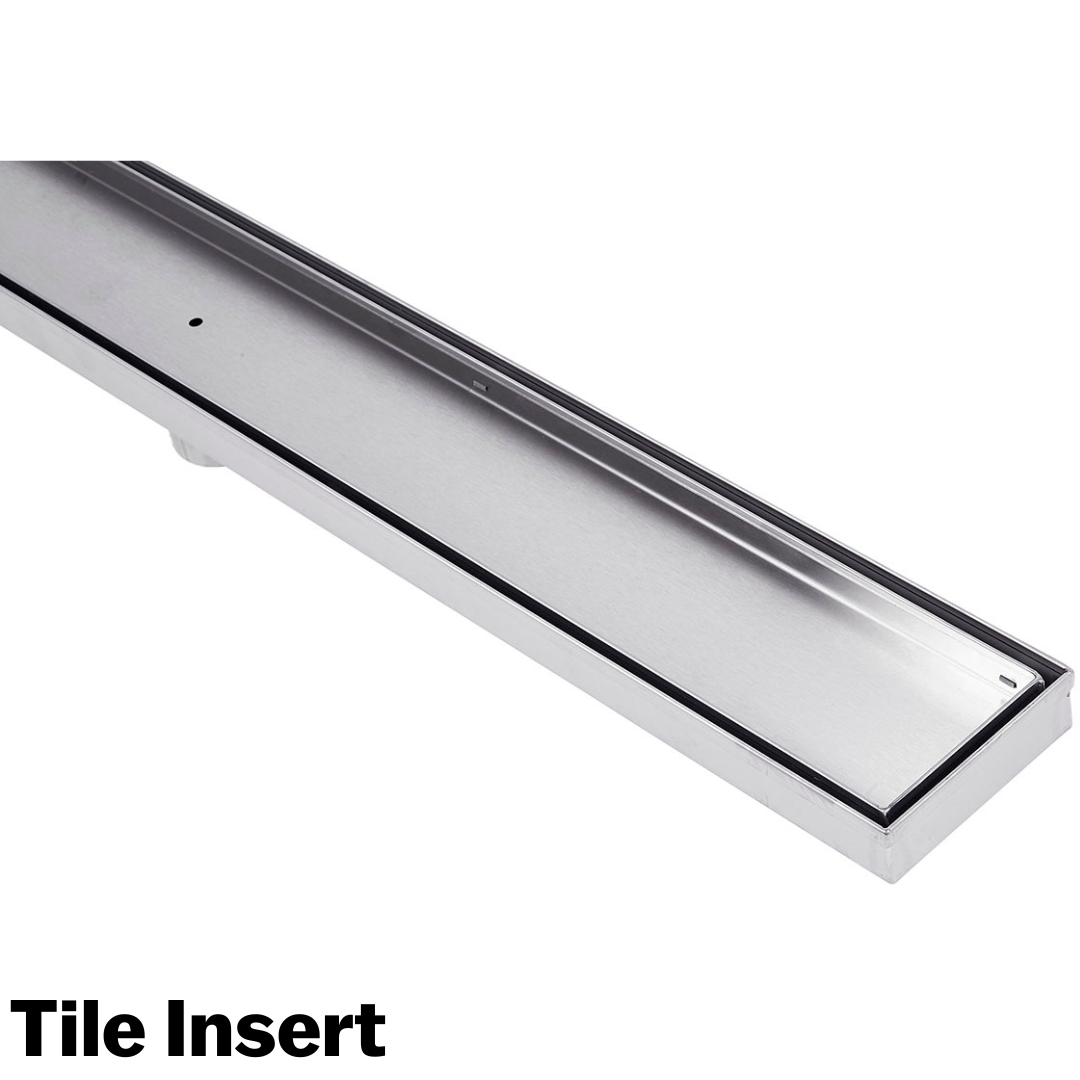

Tile Insert

Our tile insert pattern is available in 100mm wide x 30mm deep and 70mm wide x 25mm deep.

Outlet Positioning

  • On our 70mm wide (all styles), 85mm wide (all styles) and 100mm wide (tile insert) drains the outlet is 50.8 OD. Outlet is in either the centre, end of the drain (50mm from end to centre) or no outlet with DIY and custom outlet options.

  • On our 100mm wide lines and heelguard pattern drains the outlet is 80mm in the centre of the drain.

Custom Drains

When a standard shower grate won't work, we can modify an existing shower grate to suit your needs.

Available in Lines Pattern top, Heelguard Top or Tile Insert, these 3 styles are available where we can modify the outlet position to your requirements.

Please also note there is no fall specifically towards the outlet, only a V base in the drain.

This product is made from 304 stainless steel. Suitable for use internally in bathrooms, showers, laundries etc.

The advantages of our stainless steel heelguard include:

- 3mm Wedge Wire with 4mm Aperture

- 5mm (x20mm deep) edge bar all the way around the grate - eliminating any sharp edges

- Cross bars every 25mm, not touching base of drain the base of the drains allowing plenty of water flow

- Tapered cross bars reduces the buildup of dirt & grime

- Heel & Pet Friendly

Courier Deliveries:
We aim to dispatch orders the same day if received before 12pm AEST.
Sydney Metro - 1-2 business days
Melbourne - 2-3 business days
Brisbane - 2-5 business days

Generally most courier deliveries in non regional areas are completed within 3-5 days. Rural deliveries can take up to 2 weeks.

Please keep in mind if you purchase a large bulky item with a small item, the small product will be packaged together with the larger bulkier item and larger bulkier item delivery conditions apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Installation Instructions

Shower Drain Installation

Shower Drain Installation - Timber Flooring

See the PDF version here


Shower Drain Installation - Concrete Flooring

See the PDF version here.
