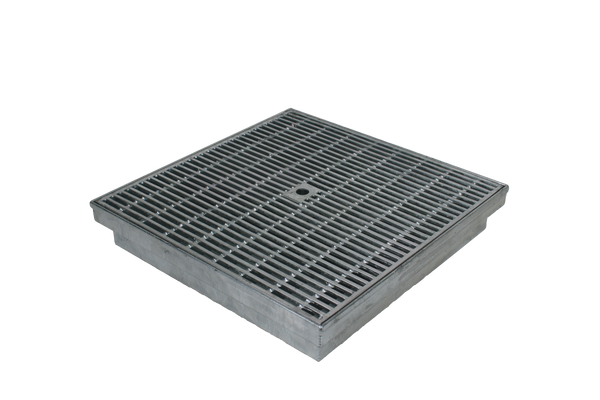

The Mini-Heelguard™ 340mm Square Sump Grate is a compact, lockable floor waste built for pedestrian areas where drainage and safety both matter. Manufactured from hot-dip galvanised steel, it delivers a corrosion-resistant finish at a practical price point. The heelguard pattern keeps bar spacing tight enough to stop high heels, crutch tips, and bicycle tyres from dropping through - the right choice for any pedestrian drainage installation. Since 1957, Vincent Buda and Company has supplied reliable drainage solutions to Australian builders, and the Mini-Heelguard™ is a staple of that range.
At 340mm x 340mm x 60mm with a 90mm outlet, this grate is load-tested to Class A under AS 3996:2019, with a wheel load rating of 630kg. It comes complete with an Allen key and lifting tool for easy access and maintenance. Vincent Buda and Company stocks this grate for same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Product Specifications
-
Material: Hot-dip galvanised steel
-
Pattern: Heelguard (heel-safe bar spacing)
-
Dimensions: 340mm x 340mm x 60mm
-
Outlet: 90mm (single)
-
Load Class: Class A to AS 3996:2019
-
Wheel Load Rating: 630kg
-
Locking: Lockable with Allen key (included)
-
Accessories: Allen key and lifting tool included
-
Product Drawings:
See Product Drawings index
Key Features at a Glance
-
Lockable Design: Secure bolt-down with included Allen key prevents theft and protects pedestrian safety.
-
Heelguard Pattern: Bar spacing stops high heels, crutch tips, and bicycle wheels from penetrating the grate.
-
Class A Certified: Load-tested to AS 3996:2019, rated for pedestrian areas with a 630kg wheel load.
-
Hot-Dip Galvanised: Corrosion-resistant zinc coating for long-term outdoor performance.
Primary Applications
-
Residential Sump Drainage: Gardens, driveways, and pedestrian pathways where a compact lockable floor waste is needed.
-
Pool Surrounds: Safe, heel-proof drainage around pool decks and wet areas.
-
Commercial Footpaths: Pedestrian-safe drainage for shopping centres, car parks, and public areas.
-
Light Industrial: Small floor waste drainage where Class A pedestrian rating is sufficient.
Made from Hot Dip Galvanised Steel.
Some examples of applications where it can be used include in external applications like walkways, garden areas, pathways and footpaths.
The advantages of our Heelguard include:
- Wedge wire pattern with bars welded together with cross bars for additional support
- Cross bars are not touching base of drain the base of the drains allowing plenty of water flow
- Edge bars to eliminate sharp edges
- Tapered cross bars reduces the build up of dirt & grime
- Heel safe & Pet Friendly
- Smaller gaps in the bars prevent leaves and foreign items from entering the channel of the grate and blocking up your drain
- Modern and stylish finish
