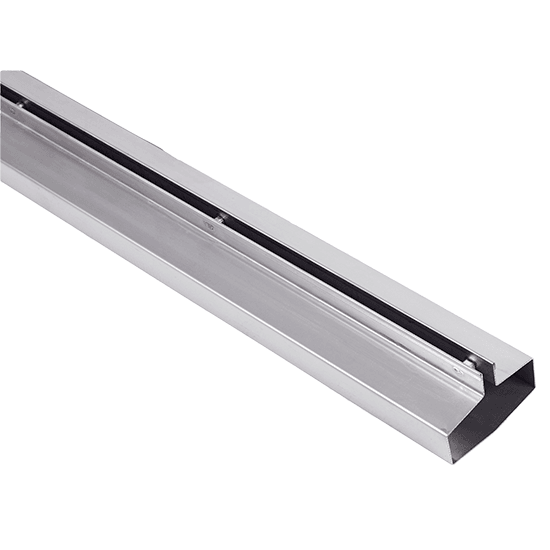

Achieve a clean, minimalist edge with a drainage system that all but disappears into the tiled surface. The Stainless Steel Slot Drain leaves only a single, continuous slot opening visible at the surface - no grate pattern, no visible bars. The drain body measures 85mm wide x 60mm deep and is available in 1-metre and 2-metre lengths, with a V-shaped base that channels water efficiently to the 50mm outlet, cut on-site wherever your plumbing falls. Accessories including end caps, joiners, and clear-out units are sold separately.

Manufactured from 316 stainless steel, this drain is corrosion-resistant for internal and external installations including pool surrounds, garden edges, balconies, and walkways. Since 1957, Vincent Buda and Company has supplied drainage solutions to builders and contractors across Australia who need performance without compromise on aesthetics. Vincent Buda and Company stocks 1m and 2m lengths for Same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.

Product Specifications

• Material: 316 stainless steel (corrosion-resistant, internal and external use)
• Overall Width: 85mm
• Overall Depth: 60mm
• Slot Opening: Single continuous slot - only the slot is visible at the surface (no grate or bar pattern)
• Length Options: 1-metre and 2-metre standard lengths
• Outlet Size: 50mm - no pre-cut outlet hole; cut on-site to suit plumbing layout
• Base Profile: V-shaped to direct flow to outlet and minimise sediment pooling
• Accessories: End caps, joiners, corners, and clear-out units sold separately
• Product Drawings: Slot Drain Product Drawings
• Clear-Out Drawings: Slot Drain Clear-Out Drawings

Key Features at a Glance

• True Invisible Drainage: Only a single, continuous slot is visible at the surface - no grate bars, no heelguard pattern. Tiles run right to the slot edge for a fully flush finish.
• 316 Stainless Construction: Corrosion-resistant for pool surrounds, coastal installations, and outdoor wet areas. Built to last without surface treatment.
• On-Site Flexibility: 1m and 2m lengths cut, join, and modify on-site. No pre-cut outlet means you position the 50mm opening exactly where it is needed.
• Clear-Out Access: Matching clear-out units connect along the length for easy maintenance without dismantling the full installation.

Primary Applications

• Pool and Spa Surrounds: Handles wet-area perimeter drainage while maintaining a continuous tile plane. The 316 grade resists pool chemicals and salt water.
• Garden Edges and Paved Pathways: Drains surface runoff along landscaped borders, keeping paved areas dry without a visible grate breaking the design.
• Balconies and Outdoor Entertaining Areas: The 60mm depth suits standard slab profiles and the narrow slot blends into tiled finishes on apartments and entertainment decks.
• Commercial Pedestrian Walkways: Delivers high-volume drainage at building entries, hospitality venues, and retail precincts where a clean, uninterrupted floor finish is specified.
