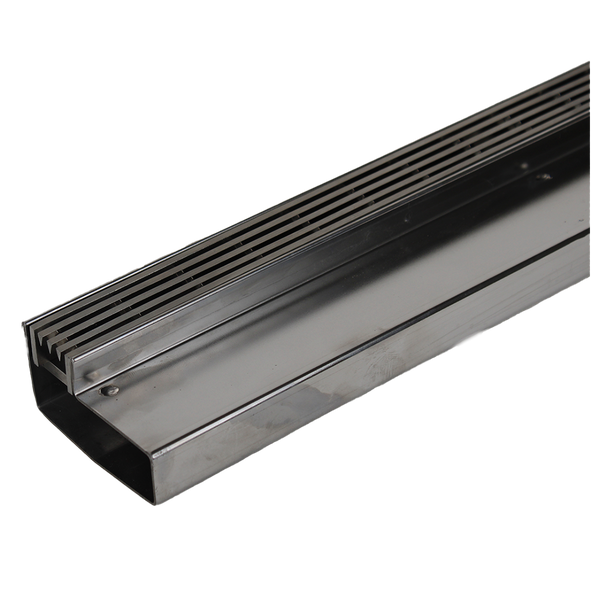

Slimline Heelguard Slot Drain
Bring clean, minimal drainage to any tiled surface with the Slimline Heelguard Slot Drain - a narrow-profile channel that keeps only a 30mm heelguard grate visible at the surface. The drain body is 70mm wide x 38mm deep overall, designed to sit flush against a wall or edge so tiling can run up to one or both sides. The 316 marine grade stainless steel construction makes it at home at pool surrounds, apartment balconies, and coastal courtyards. Sold in standard 1.5-metre lengths with a V-shaped base that channels water efficiently to the 65mm outlet, cut on-site to suit your plumbing layout.
Vincent Buda and Company has supplied quality drainage products since 1957. Accessories including joiners, end caps, and outlets are sold separately for on-site modification. The system is easy to clean with a high-pressure hose - the V base keeps water moving toward the outlet and prevents pooling. Vincent Buda and Company stocks the Slimline Heelguard Slot Drain for Same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
Product Specifications
- Material: 316 marine grade stainless steel, corrosion-resistant in coastal and pool environments
- Overall Width: 70mm
- Overall Depth: 38mm
- Visible Grate Width: 30mm heelguard pattern (grate is visible, slimline profile)
- Length: 1.5m standard lengths
- Base Profile: V-shaped for accelerated drainage to the outlet
- Outlet: 65mm, cut on-site using a quality stainless steel hole saw
- Placement: Designed to sit flush against walls or edges; tiling possible on one or both sides
- Accessories: Joiners, end caps, and outlets sold separately for on-site modification
- Product Drawings: Slimline Heelguard Slot Drain Drawings
Key Features at a Glance
- Slimline Heelguard Profile: Only the 30mm heelguard grate is visible after installation, giving a refined, low-profile look without sacrificing drainage performance.
- Corrosion-Resistant 316 Steel: Built from 316 marine grade stainless steel for genuinely stainless steel performance at pools, coastal sites, and outdoor entertaining areas.
- Flush-Against-Wall Design: The one-sided slot means the drain can be pushed directly against a wall or threshold, with tiling running up to one or both sides.
- V-Base Water Flow: The V-shaped base directs water towards the outlet, reducing debris build-up and making pressure-wash maintenance quick and easy.
Primary Applications
- Pool Surrounds: Runs along the pool edge to collect deck water. The heelguard grate is heel-safe and pool-chemical resistant, blending neatly into the surround tiles.
- Apartment Balconies: Manages water runoff on tiled balconies where a compact, refined finish is required. The slim 70mm body fits tight spaces.
- Modern Courtyards: Set against a garden edge or perimeter wall to drain paved and tiled outdoor areas cleanly, without a bulky grate breaking up the surface.
- Commercial Thresholds: Provides continuous, heel-safe drainage at hotel entries, retail spaces, and hospitality venues where aesthetics and safety both matter.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
Cut it on-site exactly where your plumbing needs it. There is no pre-drilled hole in the base, so you have full flexibility. Use a quality stainless steel hole saw for a clean cut.
Yes, that is exactly what it is designed for. The 70mm profile and one-sided slot allow the drain to sit flush against a wall or threshold. Tiles can run up to one or both sides of the body.
Yes, the 30mm heelguard pattern prevents heels and small debris from catching in the grate. It is designed for high-traffic pedestrian areas including pool surrounds, balconies, and hospitality venues where footwear safety matters.
Buy joiners and end caps separately for each run. Accessories are sold individually so you only purchase what your project requires. Cut lengths on-site and connect with joiners as needed.
Flush the channel with a high-pressure hose periodically. The V-shaped base keeps water moving toward the outlet, reducing debris accumulation. For full maintenance advice, see our Stainless Steel Product Care Guide . Vincent Buda and Company stocks this drain for Same-day or next-day delivery within the Sydney Metro. Courier delivery available Australia-wide.
