Hot Rolled Angle Lintel - 150mm x 100mm x 12mm
For the widest spans and the heaviest loads, this is the angle lintel that holds it all up.
The Hot Rolled Angle Lintel - 150mm x 100mm x 12mm from Vincent Buda and Company is the most robust profile in the hot rolled angle range. Hot-dip galvanised to AS/NZS 4680:2006 with an R3 durability rating, this lintel is built for structural brickwork openings where deflection tolerance is minimal and load requirements are at their highest. The 150mm vertical leg provides the structural depth needed for commercial headers, wide garage openings, and engineer-specified applications. Available in 4000mm and 6000mm lengths, it can be cut to length on site to suit any opening. Vincent Buda and Company has supplied galvanised structural lintels to Australian builders since 1957.
Both lengths are stocked at the Lakemba warehouse. Same-day or next-day delivery within the Sydney Metro.
Product Specifications

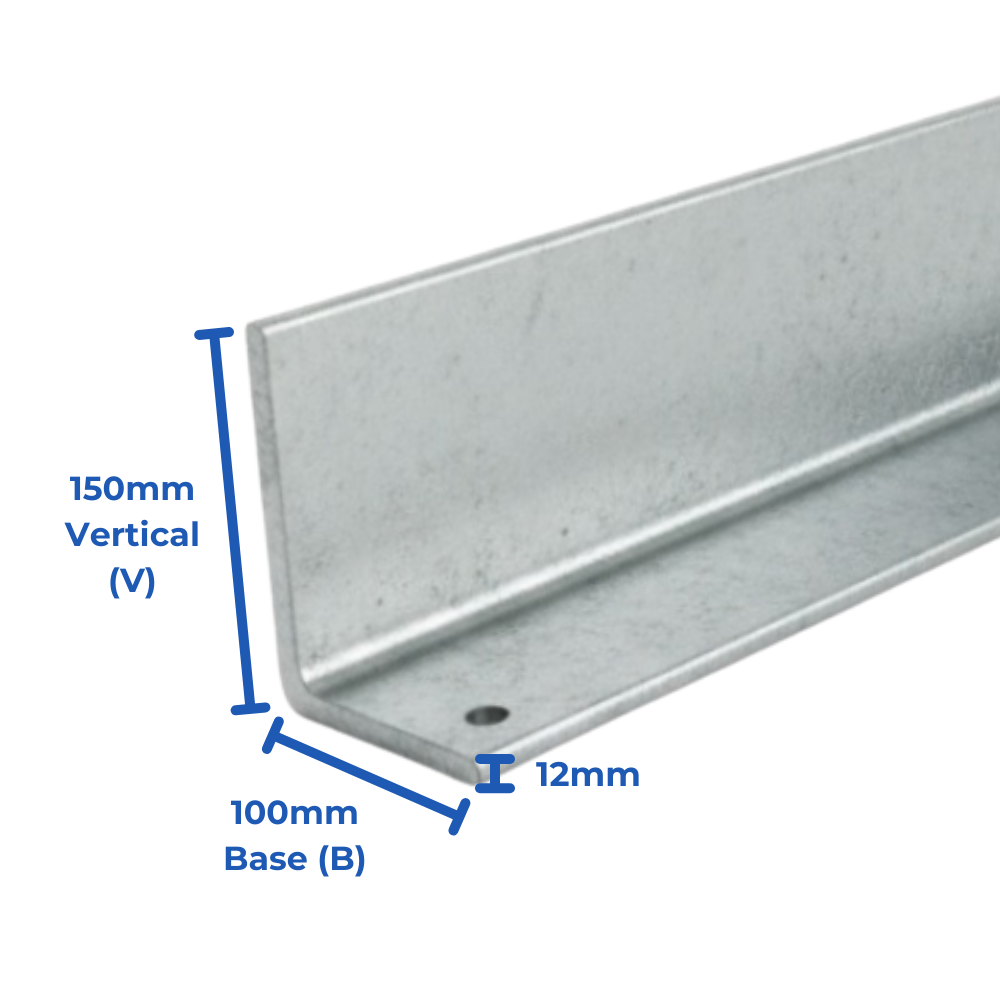

- Profile Dimensions: 150mm (vertical leg) x 100mm (horizontal leg)
- Thickness: 12mm
- Material: Structural-grade hot rolled steel
- Finish: Hot-dip galvanised to AS/NZS 4680:2006
- Durability Rating: R3
- Available Lengths: 4000mm, 6000mm
- Application: Structural brickwork openings, commercial headers, heavy-duty spans
Key Features at a Glance
- 12mm Structural Thickness: The thickest angle profile in the range, delivering maximum stiffness and minimum deflection for the longest commercial spans.
- Hot-Dip Galvanised to R3: Complies with AS/NZS 4680:2006 and carries an R3 durability rating for external and coastal residential applications.
- 150mm Vertical Leg: Provides the load-carrying depth required for wide openings and heavy structural loads in brick construction.
- Stocked at Lakemba: Both 4000mm and 6000mm lengths are held at the Lakemba warehouse for same-day or next-day delivery.
Primary Applications
- Commercial Headers and Wide Openings: The go-to profile for commercial construction and wide residential spans where maximum stiffness is required.
- Structural Residential Brickwork: Used above garage doors, bi-fold openings, and wide window heads where the 10mm profile is insufficient.
- External and Exposed Brickwork: The R3-rated hot-dip galvanised finish makes this the right choice for external and coastal brickwork openings.
- Engineer-Specified Heavy-Duty Applications: Frequently called up on engineering drawings for projects where deflection limits are critical.
Features are:
Hot Dip Galvanised to AS/NZ 4680:2006R3
Durability Rating in accordance with AS/NZS 2699:2002
Light weight when compared to traditional Concrete/Brick Lintels
Available in a range of sizes.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
A hot rolled angle lintel is an L-shaped structural steel section placed above a brickwork opening to carry the weight of the masonry above. The horizontal leg sits in the mortar joint; the vertical leg carries the load. Hot rolling produces a more uniform, stronger section than cold-formed alternatives.
The 12mm is the heavy-duty profile for maximum stiffness and the longest spans. It is primarily used in commercial construction and engineer-specified residential applications where deflection is critical. The 10mm is the standard wide-span residential profile. Browse the full range in the Lintels & T-Bars collection .
R3 is an Australian durability classification confirming the hot-dip galvanised coating meets AS/NZS 4680:2006 for external use in residential construction. This includes coastal environments within standard corrosion zones. For highly corrosive marine zones, check with your structural engineer.
Yes, these lintels can be cut to length on site with appropriate cutting equipment. Allow a minimum of 150mm bearing on each side of the opening when calculating your cut length, and ensure cuts are made square.
