Galvanised Steel Flat Bar - 100mm x 10mm
When a project requires structural support but height is extremely limited, the 100mm x 10mm Galvanised Flat Bar is the ultimate low-profile solution.
At Vincent Buda and Company, our flat bars are manufactured from structural-grade steel and Hot-Dip Galvanised (R3) to ensure they never rust or cause expansion cracking within your masonry.

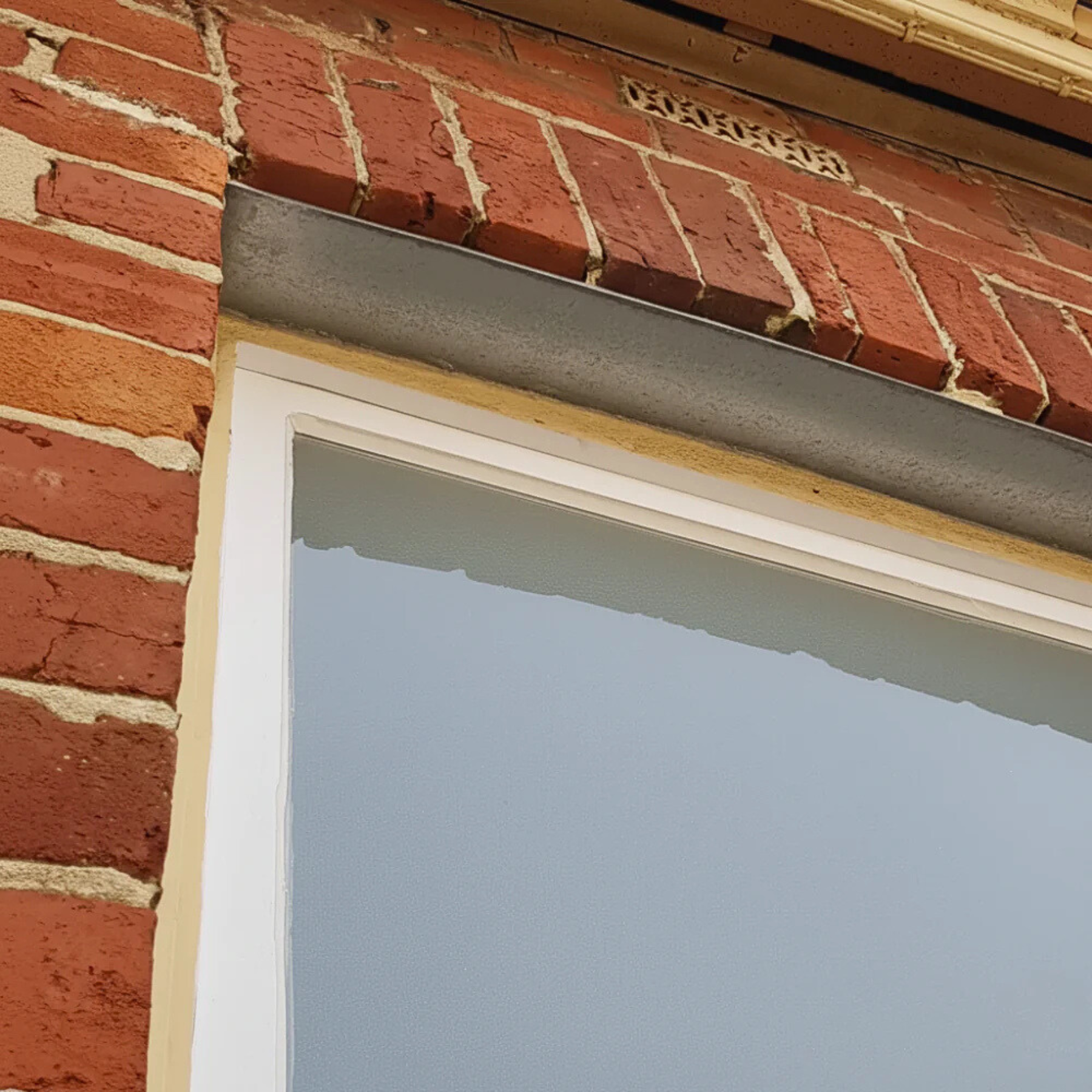

Because they are only 10mm thick, they can be tucked effortlessly into a standard mortar joint, making them invisible in the finished wall. They are a favourite for modern architectural designs where a traditional vertical angle leg would be visible.
Four Primary Applications
- Low-Profile Masonry Support: Supporting single-skin brickwork over small spans with minimal clearance.
- Decorative Brick Arches: Providing a subtle horizontal support base for arched or curved masonry.
- Structural Connection Plates: Custom-making brackets and joiners for structural steel frames on-site.
- Landscaping Edges: Providing a durable, rust-proof silver edge for garden beds and paths.
Why choose our Galvanised Flat Bars?
- Ultra-Slim Profile: 10mm thickness allows for a discreet support hidden within the wall.
- R3 Protection: Fully hot-dip galvanised to withstand moisture trapped in the brick cavity.
- Structural Grade Steel: High-strength material that provides reliable support for light-to-medium loads.
- Fast Delivery: We ship orders out same day or next day to keep your construction moving.
Features are:
Hot Dip Galvanised to AS/NZ 4680:2006R3
Durability Rating in accordance with AS/NZS 2699:2002
Light weight when compared to traditional Concrete/Brick Lintels
Available in a range of sizes.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
It is for light-to-medium spans only. Because it lacks the vertical leg of an angle bar, it is not as stiff. It is typically used for spans under 1200mm or where the brick load above is minimal. Always refer to your engineer's plans for specific load requirements.
No, it is usually bedded into the mortar. The weight of the masonry above and the bond of the mortar bed create an inherently secure installation without the need for additional fixings.
Yes, our R3 galvanising is excellent for most environments. If you are building within 1km of the surf, Vincent Buda and Company recommends checking if your project requires stainless steel for the highest possible protection.
We offer same day or next day delivery within Sydney Metro. We keep massive stock of all standard flat bar widths (50mm to 200mm) at Vincent Buda and Company for immediate dispatch.
When a project requires structural support but height is extremely limited, the 100mm x 10mm Galvanised Flat Bar is the ultimate low-profile solution.
At Vincent Buda and Company, our flat bars are manufactured from structural-grade steel and Hot-Dip Galvanised (R3) to ensure they never rust or cause expansion cracking within your masonry.
Because they are only 10mm thick, they can be tucked effortlessly into a standard mortar joint, making them invisible in the finished wall. They are a favourite for modern architectural designs where a traditional vertical angle leg would be visible.
Four Primary Applications
- Low-Profile Masonry Support: Supporting single-skin brickwork over small spans with minimal clearance.
- Decorative Brick Arches: Providing a subtle horizontal support base for arched or curved masonry.
- Structural Connection Plates: Custom-making brackets and joiners for structural steel frames on-site.
- Landscaping Edges: Providing a durable, rust-proof silver edge for garden beds and paths.
Why choose our Galvanised Flat Bars?
- Ultra-Slim Profile: 10mm thickness allows for a discreet support hidden within the wall.
- R3 Protection: Fully hot-dip galvanised to withstand moisture trapped in the brick cavity.
- Structural Grade Steel: High-strength material that provides reliable support for light-to-medium loads.
- Fast Delivery: We ship orders out same day or next day to keep your construction moving.
It is for light-to-medium spans only. Because it lacks the vertical leg of an angle bar, it is not as stiff. It is typically used for spans under 1200mm or where the brick load above is minimal. Always refer to your engineer's plans for specific load requirements.
No, it is usually bedded into the mortar. The weight of the masonry above and the bond of the mortar bed create an inherently secure installation without the need for additional fixings.
Yes, our R3 galvanising is excellent for most environments. If you are building within 1km of the surf, Vincent Buda and Company recommends checking if your project requires stainless steel for the highest possible protection.
We offer same day or next day delivery within Sydney Metro. We keep massive stock of all standard flat bar widths (50mm to 200mm) at Vincent Buda and Company for immediate dispatch.
Features are:
Hot Dip Galvanised to AS/NZ 4680:2006R3
Durability Rating in accordance with AS/NZS 2699:2002
Light weight when compared to traditional Concrete/Brick Lintels
Available in a range of sizes.
Pick-Ups
All stocked items are available for pickup within 2 working hours of placing your order.
Unsure if your items are in stock? Call us on (02) 9740 1500 before ordering to confirm availability.
Sydney Metro Deliveries
Courier Deliveries (Australia-Wide)
Direct-to-Door & Business-to-Business: Your goods will be unloaded using professional equipment and placed in a safe, accessible location at your destination.
Depot Delivery: Your order will be delivered to a Logistics Depot closest to your location. For details about your nearest depot, contact us on (02) 9740 1500 or sales@buda.com.au.
