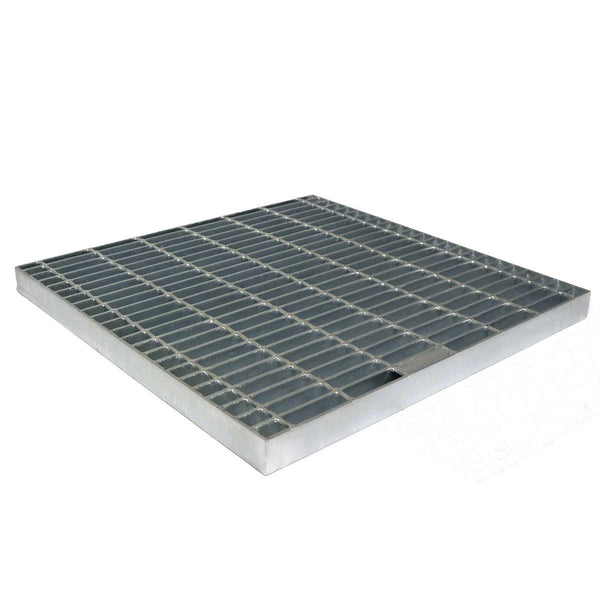

Drop-In Grates to Suit Civil Concrete Pits
These galvanised drop-in grates sit flush into the rebate for a clean, compliant finish with no frame and no fuss. Vincent Buda and Company's Drop-In Grates are engineered for civil stormwater concrete pits, dropping straight into the rebate opening for a seamless flush finish. Hot-dip galvanised for long-term durability, each grate has been tested to comply with Australian Standards for load classification. Since 1957, we have supplied civil contractors and engineers with drainage products built to perform.
Available in five sizes from 450x450mm to 1200x1200mm, these grates cover a range of standard civil pit configurations for inter-allotment drainage, stormwater management, and civil infrastructure. Next-day delivery within the Sydney Metro.
Product Specifications
Hot-dip galvanised steel. Tested to Australian Standards (AS 3996:2019). Drop-in fit to suit standard civil concrete pit rebates.
- 450mm x 450mm
- 600mm x 600mm
- 900mm x 600mm
- 900mm x 900mm
- 1200mm x 1200mm (two-piece)
Key Features at a Glance
- Drop-In Fit: Sits flush into the rebate of standard civil concrete pits with no frame required.
- Hot-Dip Galvanised: Corrosion-resistant finish built for outdoor stormwater and civil infrastructure applications.
- Australian Standards Tested: Load-rated and tested to AS 3996:2019 for use on civil and council-specified projects.
- Bike Safe and Pedestrian Safe: Traditional pattern and load rating designed to protect cyclists and pedestrians in public spaces.
Primary Applications
- Inter-Allotment Drainage: Cost-effective grating for residential and civil drainage pits in subdivisions and stormwater systems.
- Civil Stormwater Infrastructure: Flush-finish grates for council and contractor-installed concrete pits in roads and footpaths.
- Residential and Commercial Driveways: Load-rated options for pits in areas with pedestrian and light vehicle traffic.
- Landscape and Pathway Drainage: Bike-safe and pedestrian-safe grating for parks, shared paths, and public open spaces.
With our extensive range of Civil Cast products, we offer next-day delivery within the Sydney Metro for any orders processed before 12pm. We have 2 delivery options on offer:
Option 1: Customer off load - this delivery option is for customers who have access to both facilities and machinery available on-site in order to assist in offloading the truck. (no HIAB required)
Option 2: Hiab Delivery option - Alternatively, if you do not have access to any kind of machinery on site, we can provide a truck that will come with a HIAB to assist with offloading the goods from the truck. This option is perfect for customers who don’t have access to facilities to help with offloading goods from the truck, our truck does all the hard work for you!
Please note that Hiab truck deliveries can only unload materials within the front or back yard boundary. We cannot guarantee placement in an exact location or the ability to lift materials above the ground floor (first floor or higher) due to various constraints.
Due to safety, please ensure the correct of the above 2 options is selected based on your requirements. If delivery can't be completed—due to lack of machinery or delays exceeding 15 minutes—a re-delivery fee will apply.
Option 1: Customer off load - this delivery option is for customers who have access to both facilities and machinery available on-site in order to assist in offloading the truck. (no HIAB required)
Option 2: Hiab Delivery option - Alternatively, if you do not have access to any kind of machinery on site, we can provide a truck that will come with a HIAB to assist with offloading the goods from the truck. This option is perfect for customers who don’t have access to facilities to help with offloading goods from the truck, our truck does all the hard work for you!
Please note that Hiab truck deliveries can only unload materials within the front or back yard boundary. We cannot guarantee placement in an exact location or the ability to lift materials above the ground floor (first floor or higher) due to various constraints.
Due to safety, please ensure the correct of the above 2 options is selected based on your requirements. If delivery can't be completed—due to lack of machinery or delays exceeding 15 minutes—a re-delivery fee will apply.
Measure the internal rebate opening of your concrete pit. These grates are sized to drop into the rebate, not the overall pit opening. Match the grate size to your rebate dimension, and it will sit flush without a frame.
These grates are tested to Australian Standards (AS 3996:2019). Load class depends on the size selected. See the Drains Load Rating document in Resources for the specific class of each size, or contact our team to confirm the right grate for your application.
Yes, a hinged heelguard drop-in option is available. See our heelguard grates range for the hinged heelguard product.
Weight varies by size, and most can be handled by one or two people. For the larger 1200x1200mm two-piece grates, two people are recommended for safe handling and installation.
Next-day delivery within the Sydney Metro. Vincent Buda and Company stocks drop-in grates at our Lakemba warehouse. Place your order, and we will have it out to you the next business day.
These galvanised drop-in grates sit flush into the rebate for a clean, compliant finish with no frame and no fuss. Vincent Buda and Company's Drop-In Grates are engineered for civil stormwater concrete pits, dropping straight into the rebate opening for a seamless flush finish. Hot-dip galvanised for long-term durability, each grate has been tested to comply with Australian Standards for load classification. Since 1957, we have supplied civil contractors and engineers with drainage products built to perform.
Available in five sizes from 450x450mm to 1200x1200mm, these grates cover a range of standard civil pit configurations for inter-allotment drainage, stormwater management, and civil infrastructure. Next-day delivery within the Sydney Metro.
Product Specifications
Hot-dip galvanised steel. Tested to Australian Standards (AS 3996:2019). Drop-in fit to suit standard civil concrete pit rebates.
- 450mm x 450mm
- 600mm x 600mm
- 900mm x 600mm
- 900mm x 900mm
- 1200mm x 1200mm (two-piece)
Key Features at a Glance
- Drop-In Fit: Sits flush into the rebate of standard civil concrete pits with no frame required.
- Hot-Dip Galvanised: Corrosion-resistant finish built for outdoor stormwater and civil infrastructure applications.
- Australian Standards Tested: Load-rated and tested to AS 3996:2019 for use on civil and council-specified projects.
- Bike Safe and Pedestrian Safe: Traditional pattern and load rating designed to protect cyclists and pedestrians in public spaces.
Primary Applications
- Inter-Allotment Drainage: Cost-effective grating for residential and civil drainage pits in subdivisions and stormwater systems.
- Civil Stormwater Infrastructure: Flush-finish grates for council and contractor-installed concrete pits in roads and footpaths.
- Residential and Commercial Driveways: Load-rated options for pits in areas with pedestrian and light vehicle traffic.
- Landscape and Pathway Drainage: Bike-safe and pedestrian-safe grating for parks, shared paths, and public open spaces.
Measure the internal rebate opening of your concrete pit. These grates are sized to drop into the rebate, not the overall pit opening. Match the grate size to your rebate dimension, and it will sit flush without a frame.
These grates are tested to Australian Standards (AS 3996:2019). Load class depends on the size selected. See the Drains Load Rating document in Resources for the specific class of each size, or contact our team to confirm the right grate for your application.
Yes, a hinged heelguard drop-in option is available. See our heelguard grates range for the hinged heelguard product.
Weight varies by size, and most can be handled by one or two people. For the larger 1200x1200mm two-piece grates, two people are recommended for safe handling and installation.
Next-day delivery within the Sydney Metro. Vincent Buda and Company stocks drop-in grates at our Lakemba warehouse. Place your order, and we will have it out to you the next business day.
