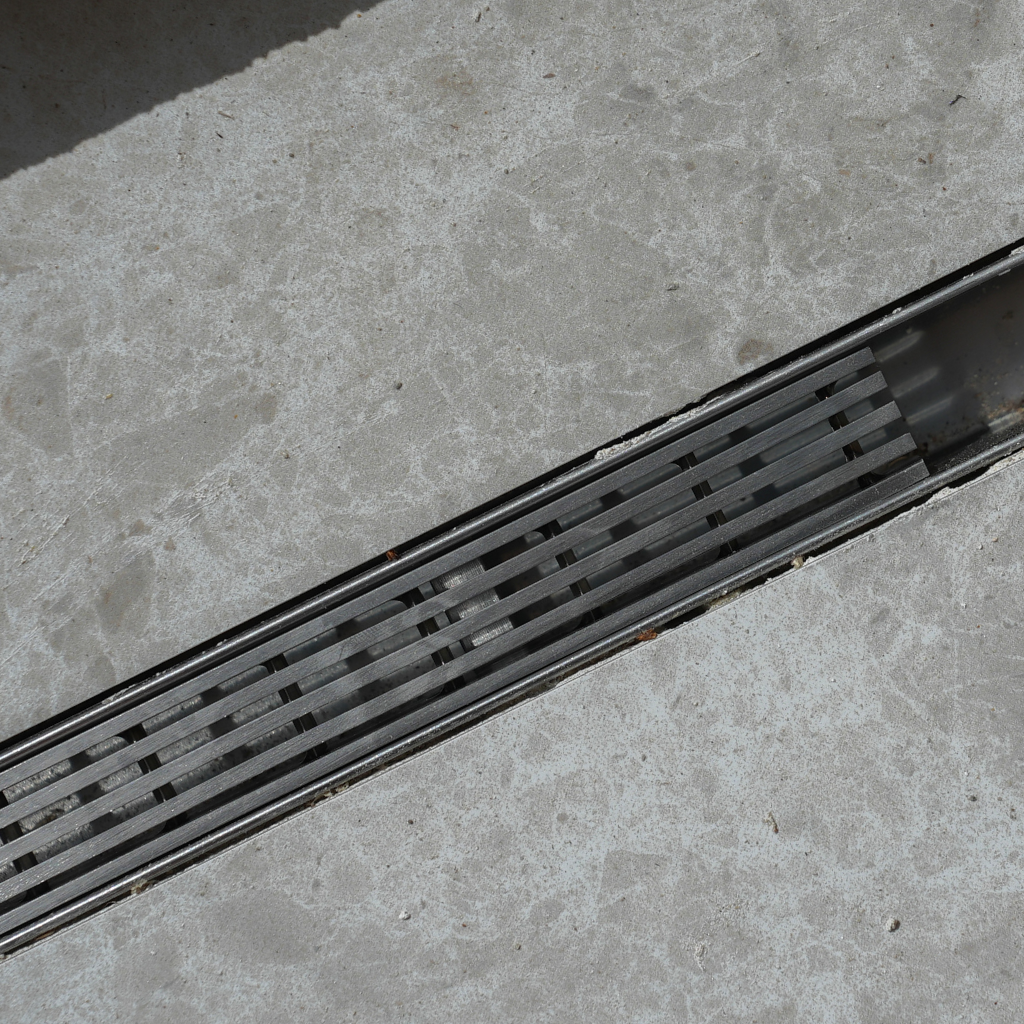

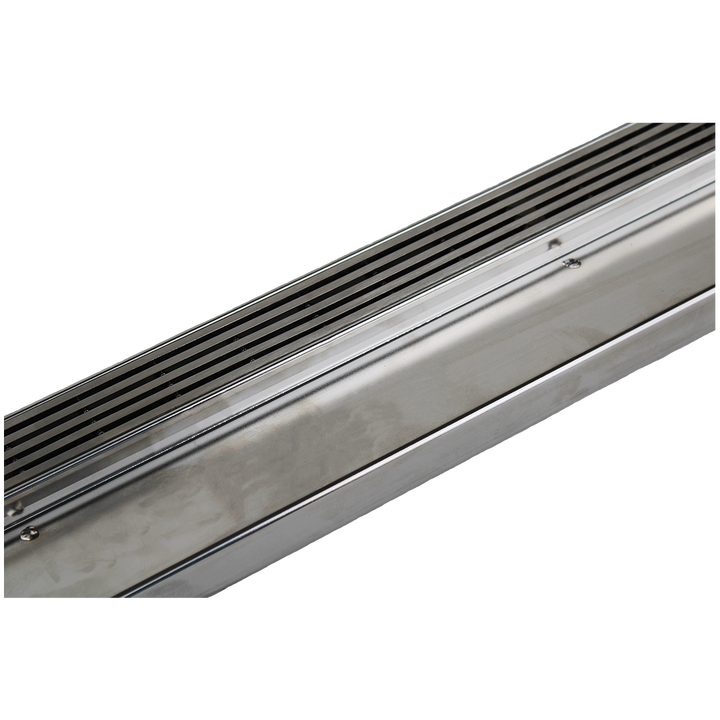

Our slimline stainless steel heelguard slot drain is a unique product that can be used in a range of applications. It provides that "hidden" look, with only a small slimline heelguard grate visible.

The heelguard slot is on one side means this product can be pushed all the way up against a wall or edge and can be tiled up to on one or both sides.

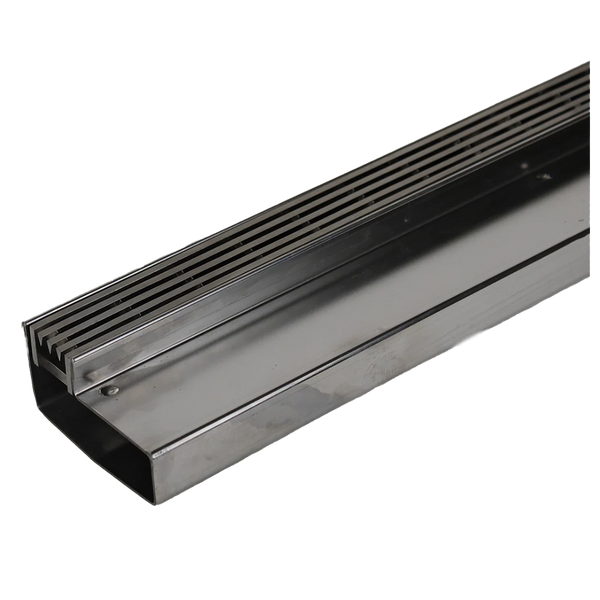

Drain is 38mm deep overall, and 70mm wide overall with a 30mm wide heelguard slot. Please click here to see product drawings.

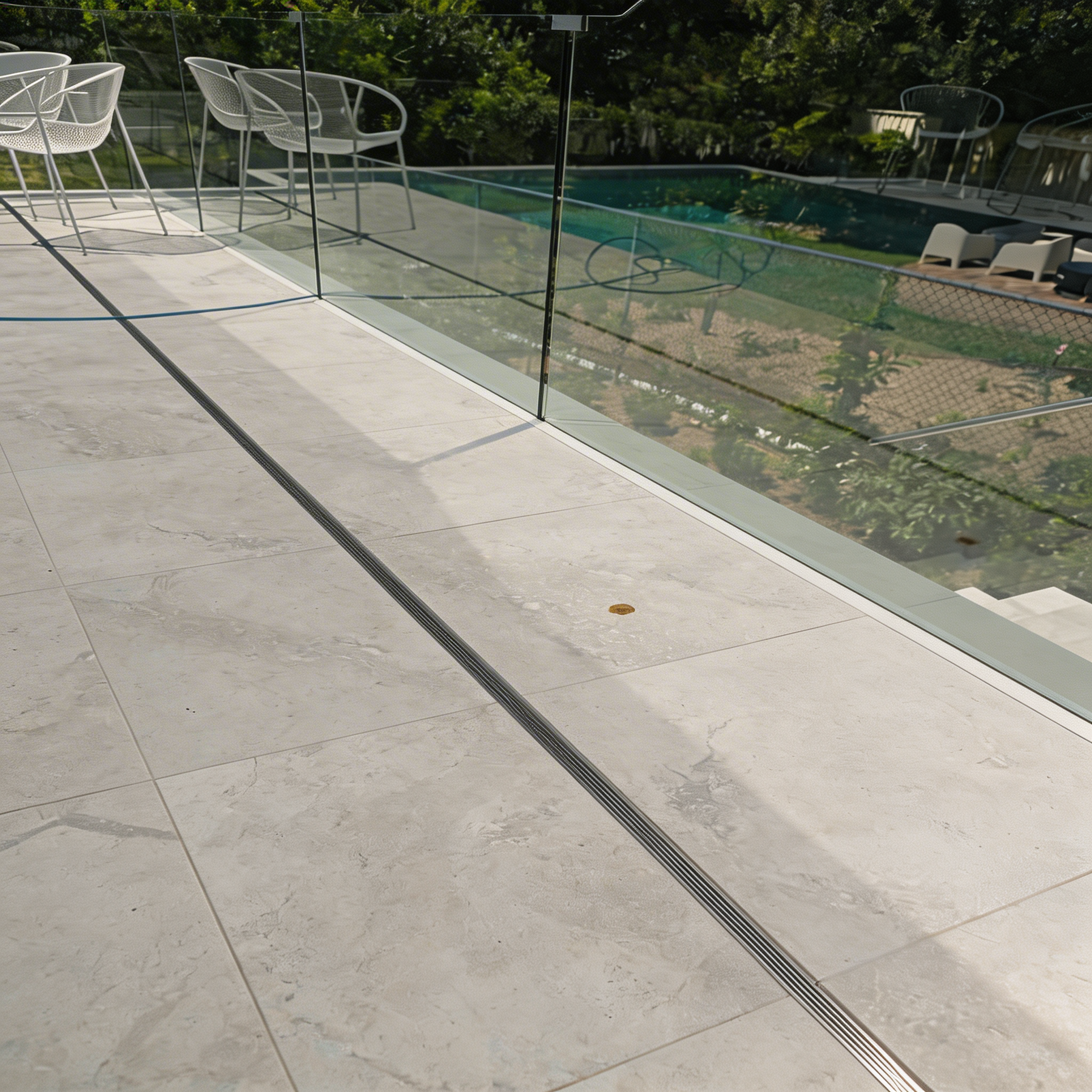

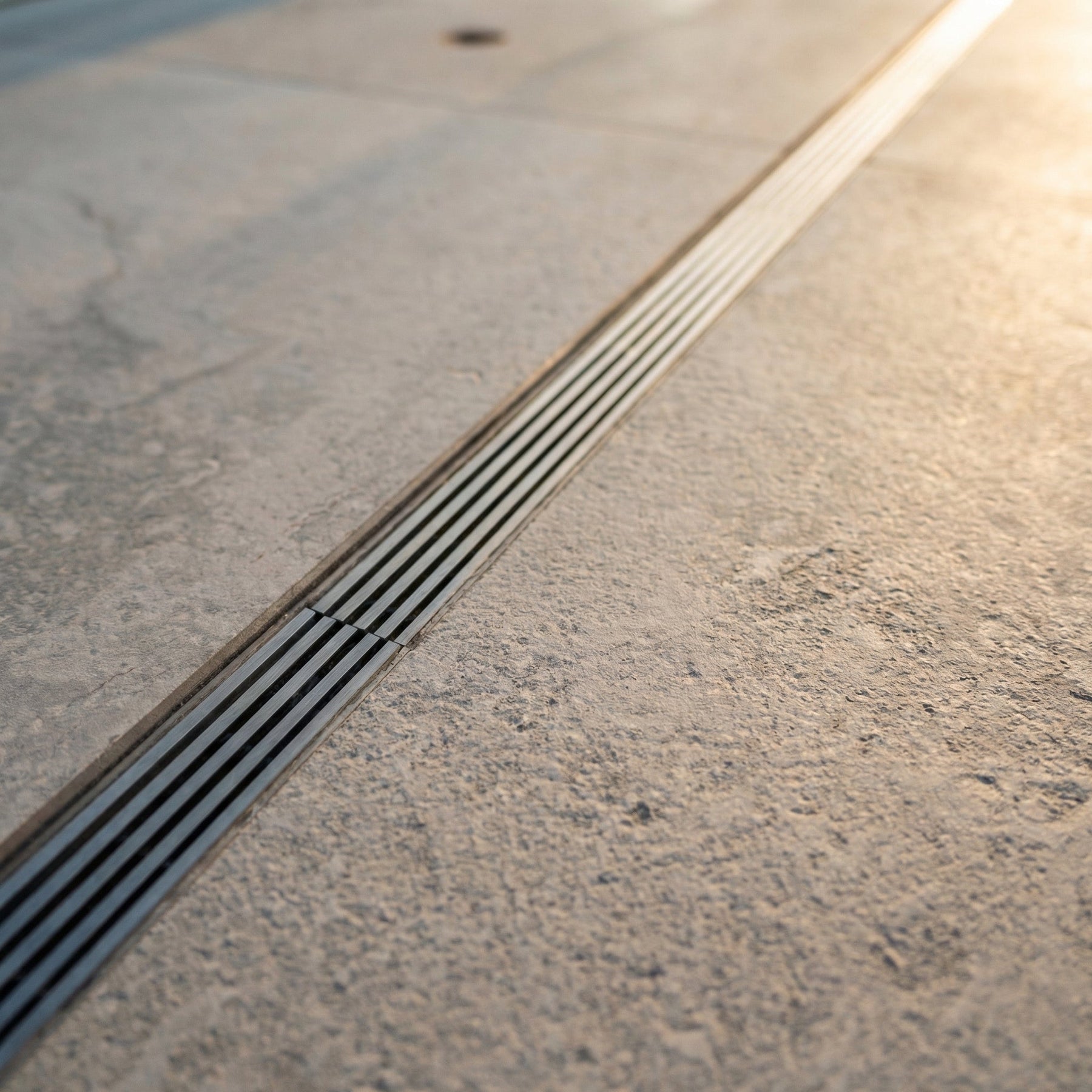

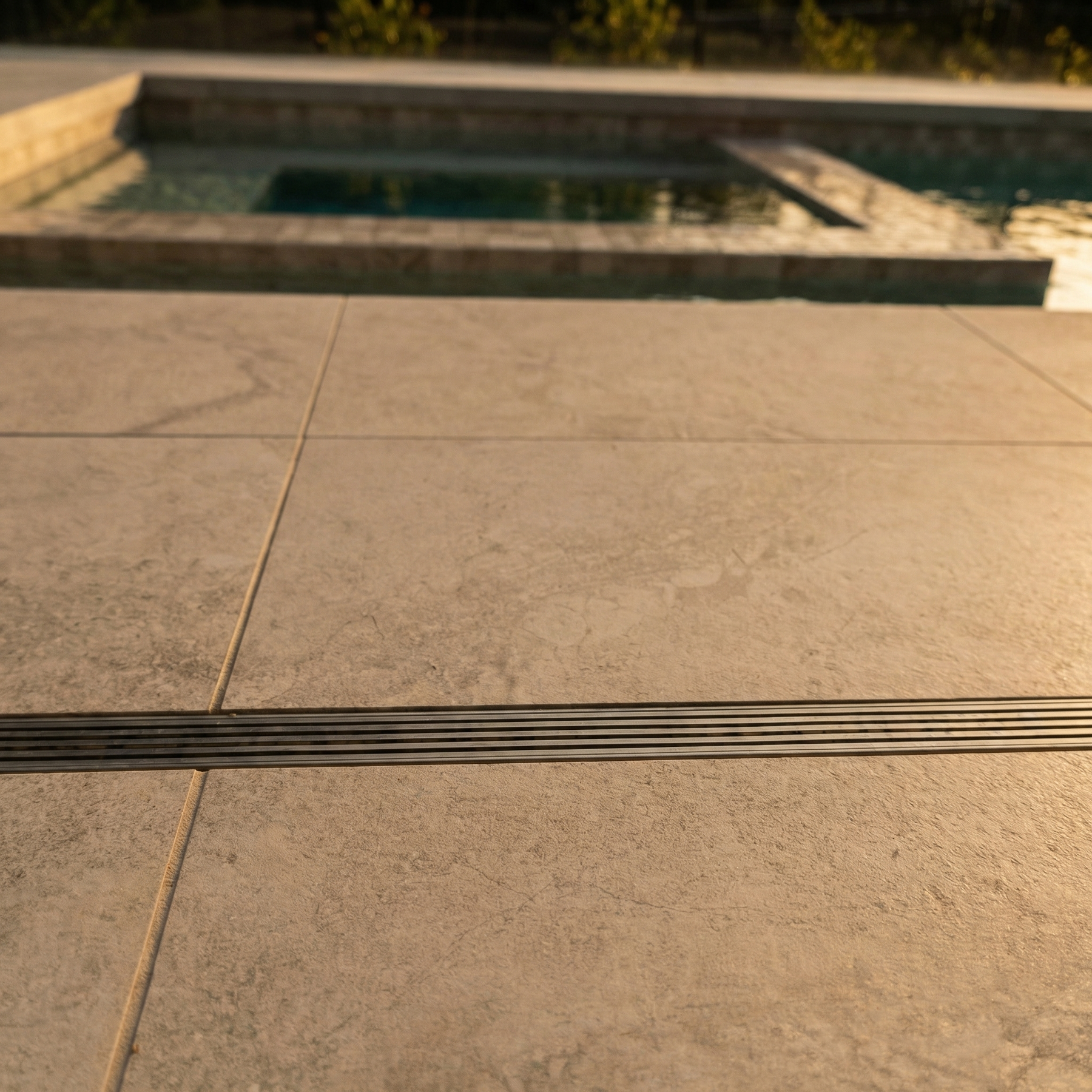

It is a versatile product that can be used internally or externally in applications such as pool areas, around garden edges or in walkways. It is a durable, corrosion resistant unit that only has a slimline heelguard grate visible.

It is easy to clean using a high pressure water hose and has a V base in the drain to assist with water flow to the outlet.

Sold in standard 1.5 metre lengths with accessories sold separately to be modified and joined on site as required. There is no outlet in the base, this would need to be cut on site using a good quality stainless steel hole saw. Outlet size is 65mm.

Please note some of the accessories may be a slightly different shade due to the fabrication of the items requiring them to be surface treated.

Made from 316 marine grade stainless steel, this product is suitable for external applications such as pool areas, walkways, balconies, garden areas and many other applications.

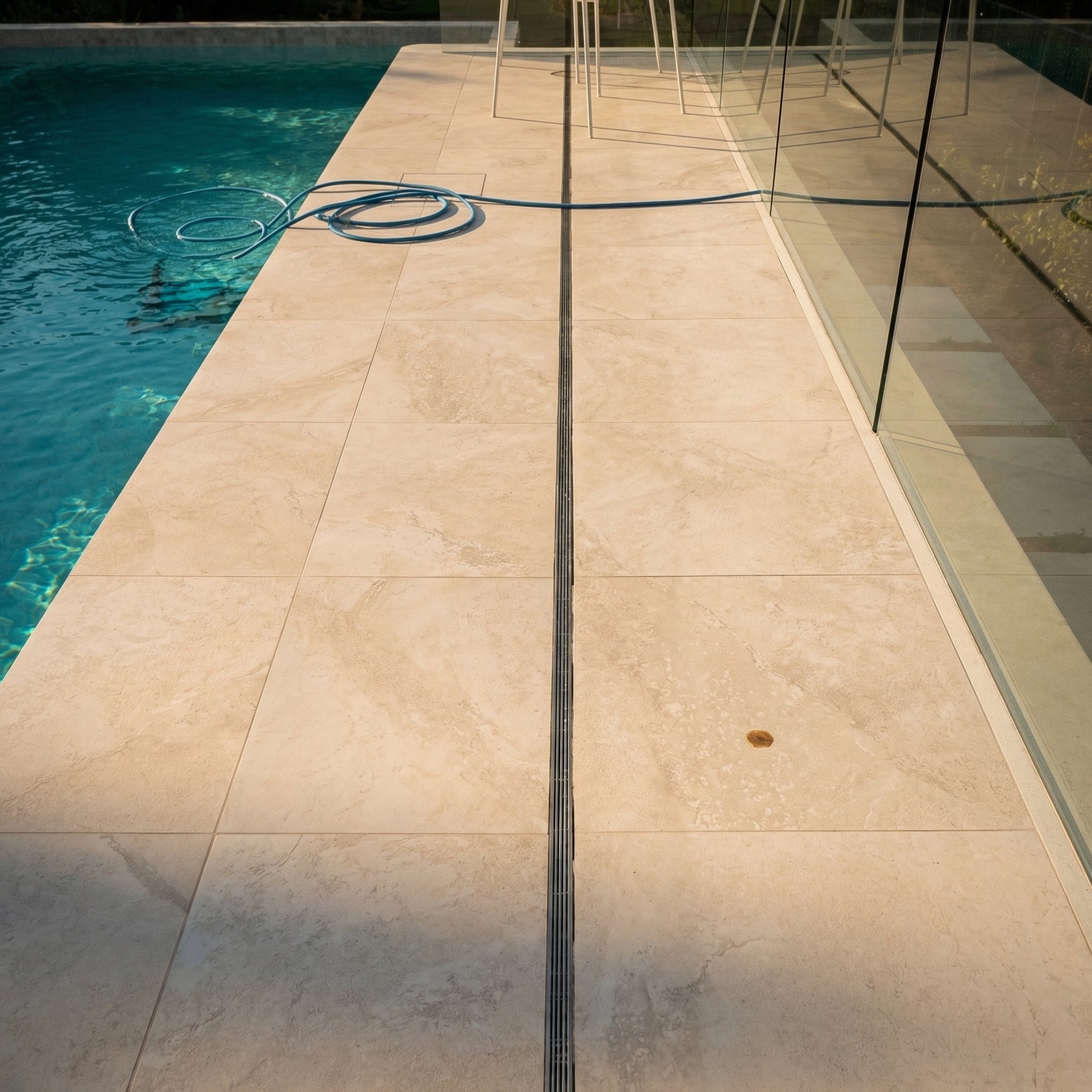

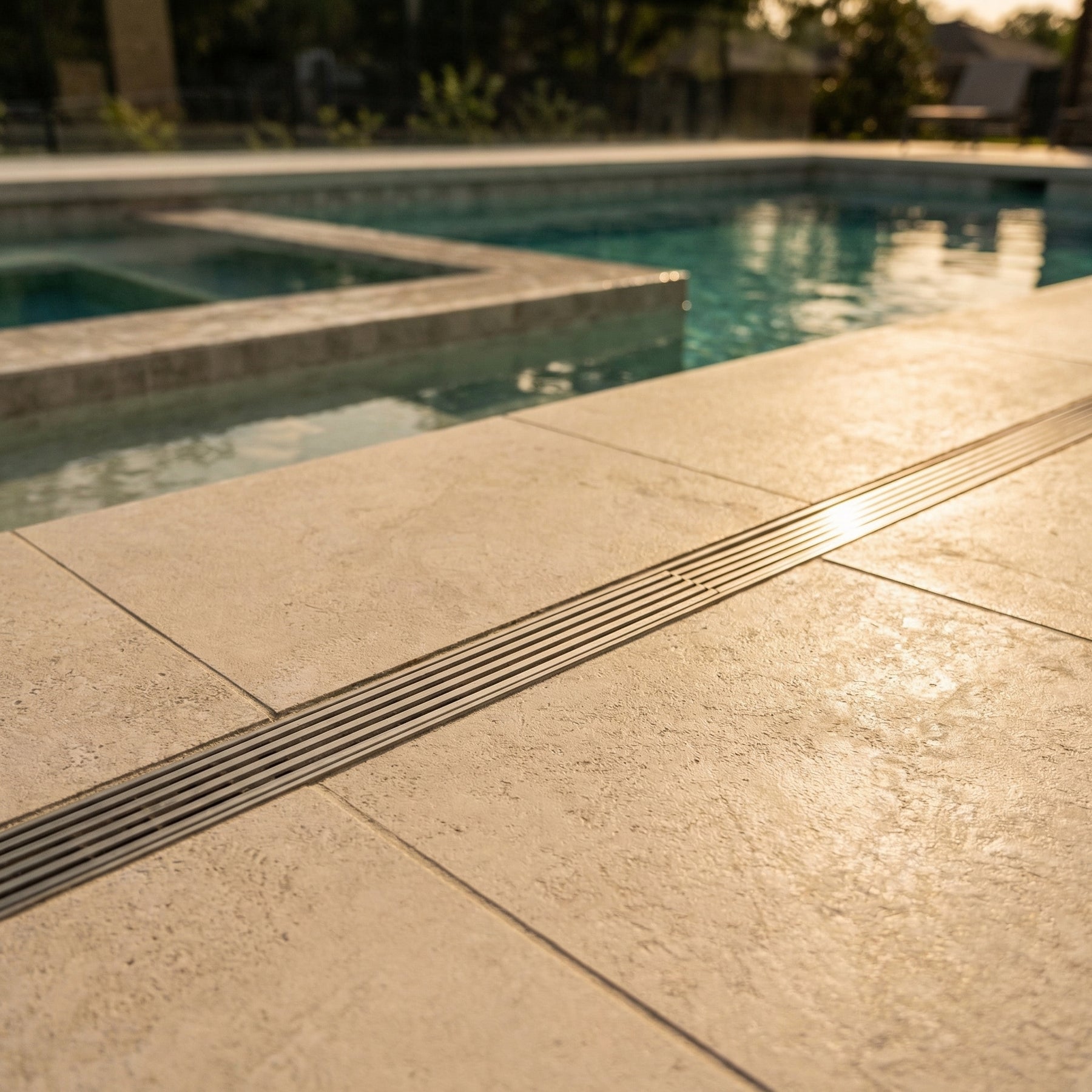

This stainless steel heelguard slot drain is Class A and can be used in pedestrian traffic areas only. It can be used on balconies, around pools and in walkways.
